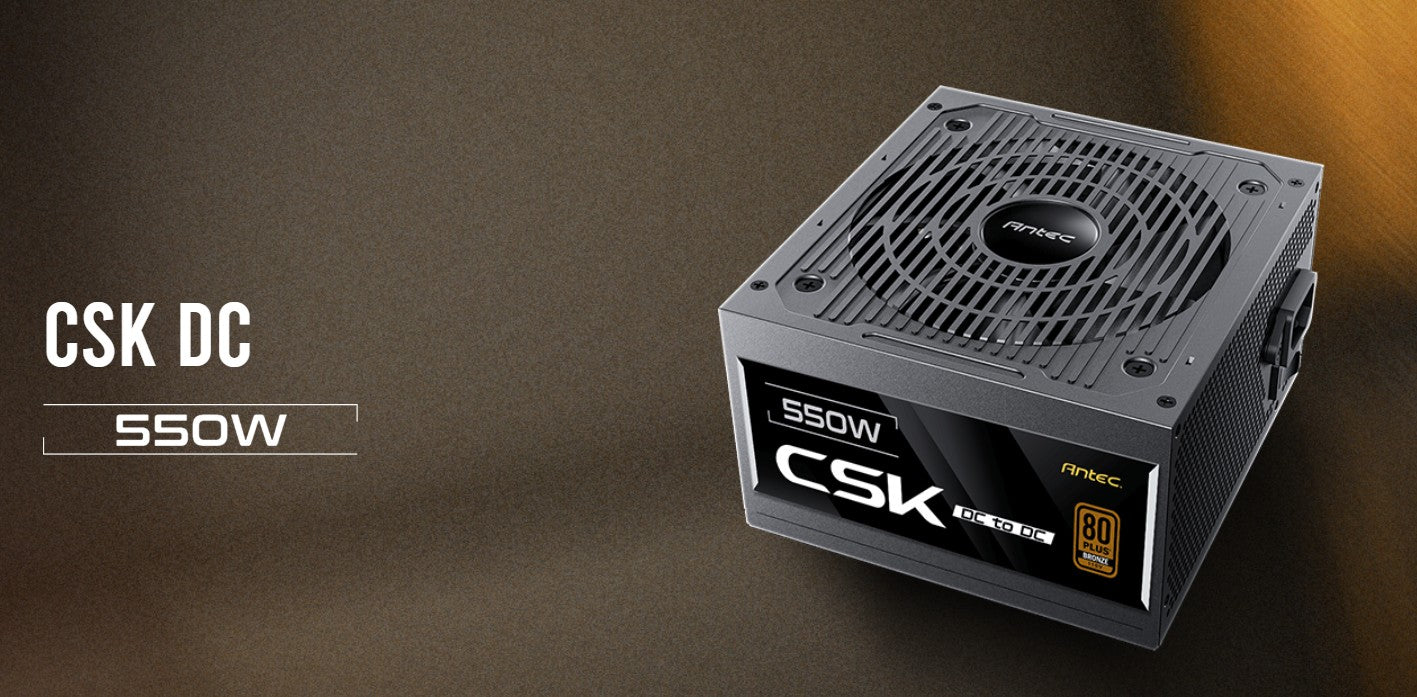

Antec CSK550DC 550W 80+ Bronze Power Supply
Antec CSK550DC 550W 80+ Bronze Power Supply
SKU:PSA-CSK550DC
Couldn't load pickup availability
- See our return policy
- 5 years Manufacturer Warranty
Product Information
| Brand | Antec |
|---|---|
| Category | Power Supplies |
| SKU | PSA-CSK550DC |
| Availability | In Stock |
Overview
- The Antec CSK550DC is a 550W ATX power supply designed to deliver dependable, continuous power for business and performance-focused computing environments. Built on a DC-to-DC architecture, it combines efficient 80+ Bronze certification with Antec's proven CircuitShield protection suite, ensuring your system remains safe under all operating conditions.
With comprehensive protection mechanisms including over-current, over-voltage, under-voltage, and thermal safeguards, the CSK550DC is engineered for industrial-grade reliability. The quiet 120mm fan and flat cable design balance cooling performance with improved cable management and airflow inside your chassis.
Backed by a solid 5-year warranty, this non-modular supply suits system integrators, IT professionals, and organisations seeking cost-effective power without compromising on protection or longevity. Its wide input voltage range (100V–240V) makes it suitable for diverse Australian business environments.
Specifications
| Model | CSK550DC |
|---|---|
| Type | ATX 12V 2.52 |
| Wattage | 550W continuous |
| Efficiency Certification | 80+ Bronze |
| Architecture | DC-to-DC |
| Modular | Non-modular |
| Form Factor | ATX |
| Dimensions | 140mm (L) × 150mm (W) × 86mm (H) |
| Weight | 1.60 kg |
| Input Voltage | 100V–240V AC |
| Input Current | 12A maximum |
| Input Frequency | 50Hz–60Hz |
| Power Factor Correction | Active PFC |
| Operating Temperature | 0°C to 40°C |
| Cooling | 120mm silent fan |
| Power Good Signal | 100–500ms |
| Main Connector | 1 × 24-pin (20+4) motherboard |
| CPU Connectors | 2 × 8-pin (4+4) |
| PCIe Connectors | 2 × 8-pin (6+2) |
| SATA Connectors | 6 × SATA |
| Molex Connectors | 3 × Molex |
| Protection Features | OCP, OVP, UVP, SCP, OPP, OTP, SIP, NLO |
| Safety Standards | CircuitShield industrial-grade protection |
| Certifications | cTUVus, TUV, CB, RCM, CE, FCC, BSMI, KC, UKCA, ICES, BIS |
| Warranty | 5 years |
Key Features
Ideal For
FAQs
Is the Antec CSK550DC suitable for gaming and high-performance systems?
Yes. With 550W continuous power, dual PCIe connectors, and dual CPU power connectors, it supports modern gaming graphics cards and multi-core processors. The DC-to-DC architecture ensures stable power delivery even under sustained load.
What does the CircuitShield protection suite do?
CircuitShield provides industrial-grade protection including over-current (OCP), over-voltage (OVP), under-voltage (UVP), short-circuit (SCP), over-power (OPP), and thermal (OTP) safeguards. These work together to protect your system components from power-related damage.
Is this a modular or non-modular power supply?
The CSK550DC is non-modular, meaning all cables are permanently attached. This reduces cost and simplifies manufacturing while still supporting efficient cable management through flat cable design.
What is 80+ Bronze certification?
80+ Bronze certification means the power supply operates at least 80% efficient at 50% load, with Bronze being the entry-level tier. This reduces energy waste and heat generation, lowering your power bill and operating costs.
Does the CSK550DC work in Australian office environments?
Yes. It accepts input voltage from 100V–240V AC at 50Hz–60Hz, making it fully compatible with Australian mains power. Its operating temperature range of 0°C–40°C suits most indoor business and office settings.
What is the warranty coverage?
The CSK550DC includes Antec's 5-year manufacturer warranty, covering defects in materials and workmanship. This provides long-term peace of mind for business and system integrators.
How quiet is the 120mm fan?
The 120mm fan is designed for silent operation, balancing cooling performance with low noise. This makes it suitable for office and business environments where noise reduction is important.
What connectors does it include for modern graphics cards?
The CSK550DC includes 2 × 8-pin (6+2) PCIe connectors, supporting high-end graphics cards. It also features 2 × 8-pin CPU connectors for modern multi-core processors.
