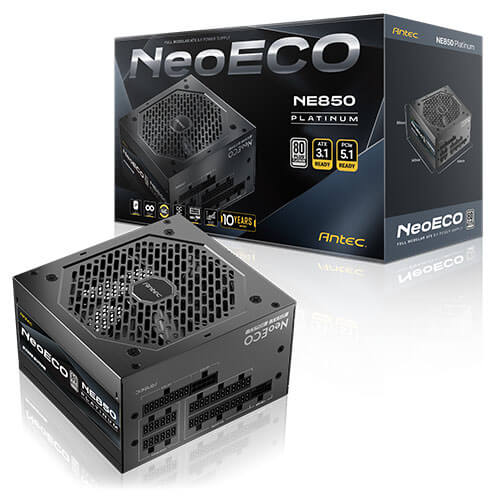

Antec NE850P AU 850W 80 PLUS Platinum Power Supply
Antec NE850P AU 850W 80 PLUS Platinum Power Supply
SKU:PSA-NE850PAU
Couldn't load pickup availability
- See our return policy
- 10 years Manufacturer Warranty
Product Information
| Brand | Antec |
|---|---|
| Category | Power Supplies |
| SKU | PSA-NE850PAU |
| Availability | In Stock |
Overview
- The Antec NE850P AU is a premium 850W power supply engineered for high-performance PC builds. With 80 PLUS Platinum certification, it delivers exceptional efficiency and reduces operational costs through lower energy waste. Full modularity simplifies cable management and enables cleaner system aesthetics, while the 120 mm FDB silent fan with intelligent Zero RPM Manager ensures quiet operation without compromising cooling performance.
Designed to support modern hardware, the NE850P AU features ATX 3.1 and PCIe 5.1 compliance, enabling compatibility with next-generation graphics cards and processors. The PhaseWave™ design and high-quality Japanese capacitors provide stable, consistent power delivery across all load conditions. CircuitShield™ protections safeguard both the power supply and connected components against electrical faults.
Backed by a 10-year warranty, the NE850P AU is a dependable choice for enthusiasts, system integrators, and businesses requiring power supplies that combine efficiency, performance, and longevity.
Specifications
| Model | NE850P AU |
|---|---|
| Output Power | 850W |
| Power Supply Type | ATX 12V 3.1 |
| Efficiency Certification | 80 PLUS Platinum |
| Modular Design | Fully Modular |
| Dimensions | 140(L) x 150(W) x 86(H) mm |
| Fan | 120 mm FDB Silent Fan |
| Input Voltage Range | 100V-240V |
| Input Current Range | 10A-5A |
| Input Frequency | 50Hz-60Hz |
| Power Factor Correction | Active PFC |
| Power Good Signal | 100-150ms |
| Operating Temperature | 0°C to 40°C |
| Protections | OCP, OVP, UVP, SCP, OPP, OTP, SIP, NLO |
| Main Connector | 1 x 24-pin (20+4) Motherboard |
| PCIe Connector | 1 x 16-pin (12+4) PCIe 5.1 12V-2x6 |
| CPU Connectors | 2 x 8-pin (4+4) |
| Additional PCIe Connectors | 3 x 8-pin (6+2) |
| SATA Connectors | 6 x SATA |
| Molex Connectors | 2 x Molex |
| Warranty | 10 years |
| Certifications | cTUVus, TUV, CB, RCM, CE, FCC, BSMI, 3C, UKCA, ICES |
Key Features
Ideal For
FAQs
Is the Antec NE850P AU suitable for RTX 40-series graphics cards?
Yes, the NE850P AU supports PCIe 5.1 with 12V-2x6 connectors, making it fully compatible with modern RTX 40-series and next-generation graphics cards that require high-capacity power delivery.
What does 80 PLUS Platinum certification mean?
80 PLUS Platinum means the power supply operates at 90% efficiency or higher, converting more electrical input into usable power for your system while reducing wasted energy as heat. This reduces power bills and heat output.
What is full modularity and why does it matter?
Full modularity means all power cables detach from the power supply, allowing you to use only the cables you need. This improves airflow, reduces clutter inside the case, and makes cable management significantly easier.
What is the Zero RPM Manager feature?
Zero RPM Manager intelligently stops the fan when the system is under light load, reducing noise during quiet operation. The fan automatically activates when thermal conditions require active cooling.
How long is the Antec NE850P AU warranty?
The NE850P AU comes with a 10-year warranty, reflecting Antec's confidence in the unit's reliability and quality construction.
What protections does the CircuitShield™ suite provide?
CircuitShield™ includes industrial-grade protections: OCP (Over-Current), OVP (Over-Voltage), UVP (Under-Voltage), SCP (Short-Circuit), OPP (Over-Power), OTP (Over-Temperature), SIP (Surge), and NLO (No Load Output) protections.
What is ATX 3.1 and why is it important?
ATX 3.1 is the latest ATX power supply standard supporting next-generation components and improved power delivery efficiency. It enables better compatibility with modern high-performance systems and future-proofs your build.
