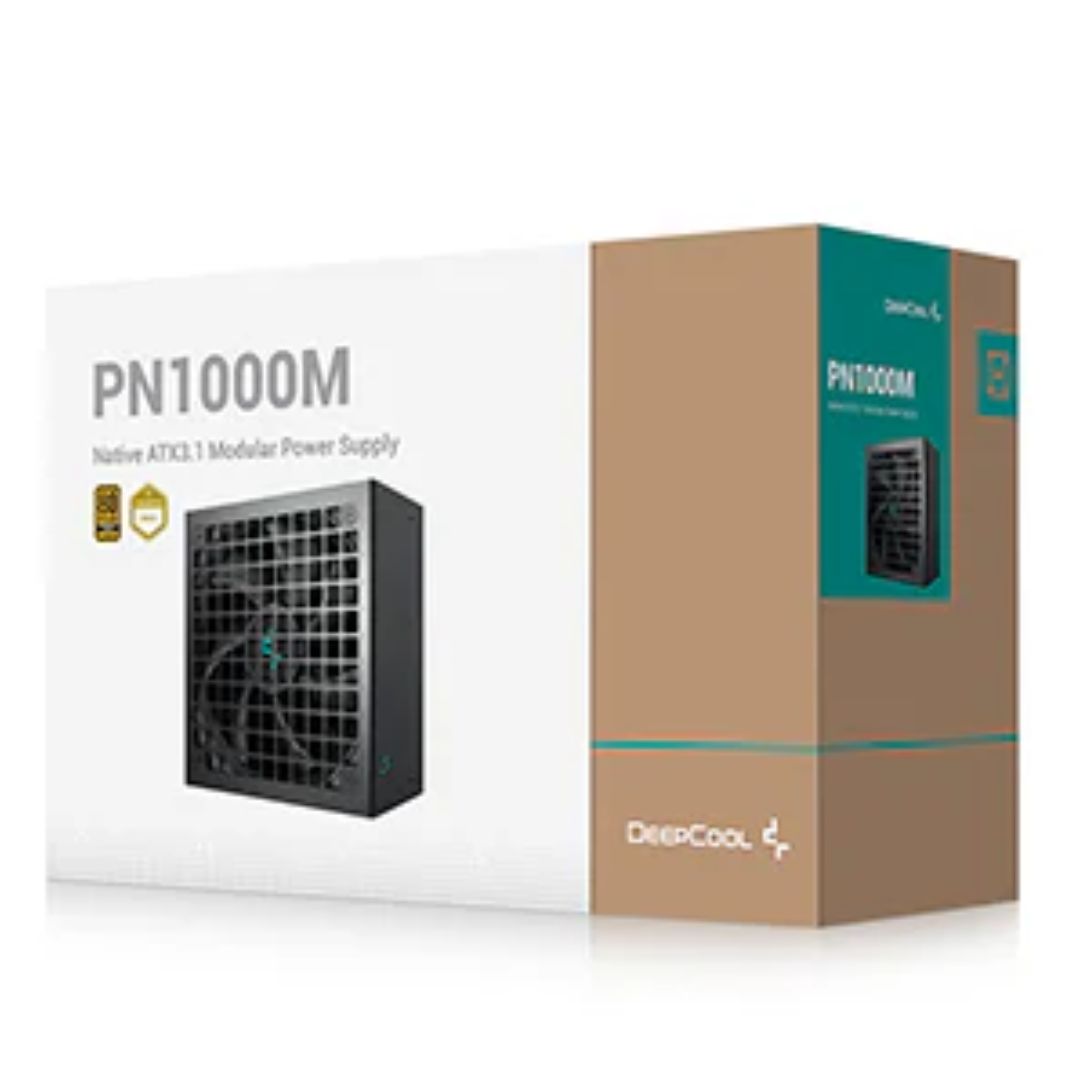

DeepCool PN1000M 1000W Fully Modular Power Supply
DeepCool PN1000M 1000W Fully Modular Power Supply
SKU:PSD-PN1000M
The DeepCool PN1000M is a 1000W fully modular power supply designed for high-performance gaming and workstation systems. Featuring 80+ Gold efficiency, ATX 3.1 compliance, and dedicated 12V-2x6 PCIe 5.1 support, it delivers stable power for next-generation GPUs and modern components.
Couldn't load pickup availability
- See our return policy
- 120 months (10 years) Manufacturer Warranty
Product Information
| Brand | DEEPCOOL |
|---|---|
| Category | Power Supplies |
| SKU | PSD-PN1000M |
| Availability | In Stock |
Overview
- The DeepCool PN1000M is a premium 1000W fully modular power supply engineered for modern high-performance systems. Built to the latest Intel ATX 3.1 and PCIe 5.1 standards, it provides dedicated 12V-2x6 connectors capable of delivering up to 600W to contemporary graphics cards, eliminating power delivery bottlenecks.
This unit combines Japanese electrolytic capacitors, active PFC correction, and advanced half-bridge SRC LLC topology to maintain exceptional stability under load. With a ≥16ms hold-up time at 80% load and ≥90% efficiency at typical 50% operating load, it ensures reliable operation across diverse workloads while minimising power waste and heat generation.
The 135mm FDB fan uses fluid dynamic bearing technology for whisper-quiet operation and extended lifespan. Full modularity streamlines cable management, reducing clutter and improving airflow within the chassis. Comprehensive protection circuits guard against overvoltage, overcurrent, overpower, overtemperature, and undervoltage conditions.
With 10 years of manufacturer warranty and an MTBF rating of 100,000 hours, the PN1000M is built for long-term reliability and future-proofs your system investment.
Specifications
| Power Output | 1000W |
|---|---|
| Efficiency Certification | 80+ Gold |
| Standard | ATX12V V3.1 |
| Topology | Active PFC + Half Bridge SRC LLC + DC to DC |
| Capacitors | Japanese bulk capacitor |
| Fan | 135mm FDB (Fluid Dynamic Bearing) |
| Connectors | Dedicated 12V-2x6 PCIe 5.1 cable (600W dedicated GPU power) |
| Dimensions | 150 × 150 × 86 mm (W × L × H) |
| Hold-up Time | ≥16 ms (at 80% load) |
| Power Good Signal | 100–150 ms |
| Efficiency | ≥90% (at 50% typical load) |
| Operating Temperature | 0–40°C |
| Protection Features | OVP, OCP, OPP, OTP, SCP, UVP, SIP, NLO |
| MTBF | 100,000 hours |
| Certifications | CE, FCC, CCC, TUV-RH, cTUVus, RCM, EAC, BIS |
| Environmental Compliance | WEEE, RoHS, ErP 2014, Triman, P65 |
| Warranty | 120 months (10 years) |
Key Features
Ideal For
FAQs
Is the DeepCool PN1000M compatible with PCIe 5.0 graphics cards?
Yes. The PN1000M is fully compliant with PCIe 5.1 specifications and includes a dedicated 12V-2x6 connector capable of delivering up to 600W directly to modern GPUs, making it ideal for next-generation graphics cards.
What does 80+ Gold certification mean?
80+ Gold means the power supply maintains at least 90% efficiency at typical loads. This reduces energy waste, lowers electricity costs, and generates less heat—important for system stability and lifespan.
Why is full modularity important?
Fully modular cables connect only to ports you actually use, eliminating unused cable clutter. This improves airflow, simplifies cable management, and makes system upgrades easier.
What is FDB fan technology?
FDB (Fluid Dynamic Bearing) uses a thin film of fluid between moving parts to reduce friction. This results in quieter operation, lower noise levels, and extended fan lifespan compared to traditional ball bearings.
How does the PN1000M handle sudden power spikes?
The unit can provide twice the rated system power for 0.1 ms, absorbing random power spikes without instability. Combined with a ≥16 ms hold-up time, this ensures uninterrupted operation during transient load changes.
What is the warranty period?
The DeepCool PN1000M comes with a 10-year (120-month) manufacturer warranty, providing long-term peace of mind for your investment.
What makes the capacitors important?
Japanese electrolytic capacitors are known for superior stability, longer lifespan, and better performance under high loads. They are a key component in maintaining clean, stable power delivery.
