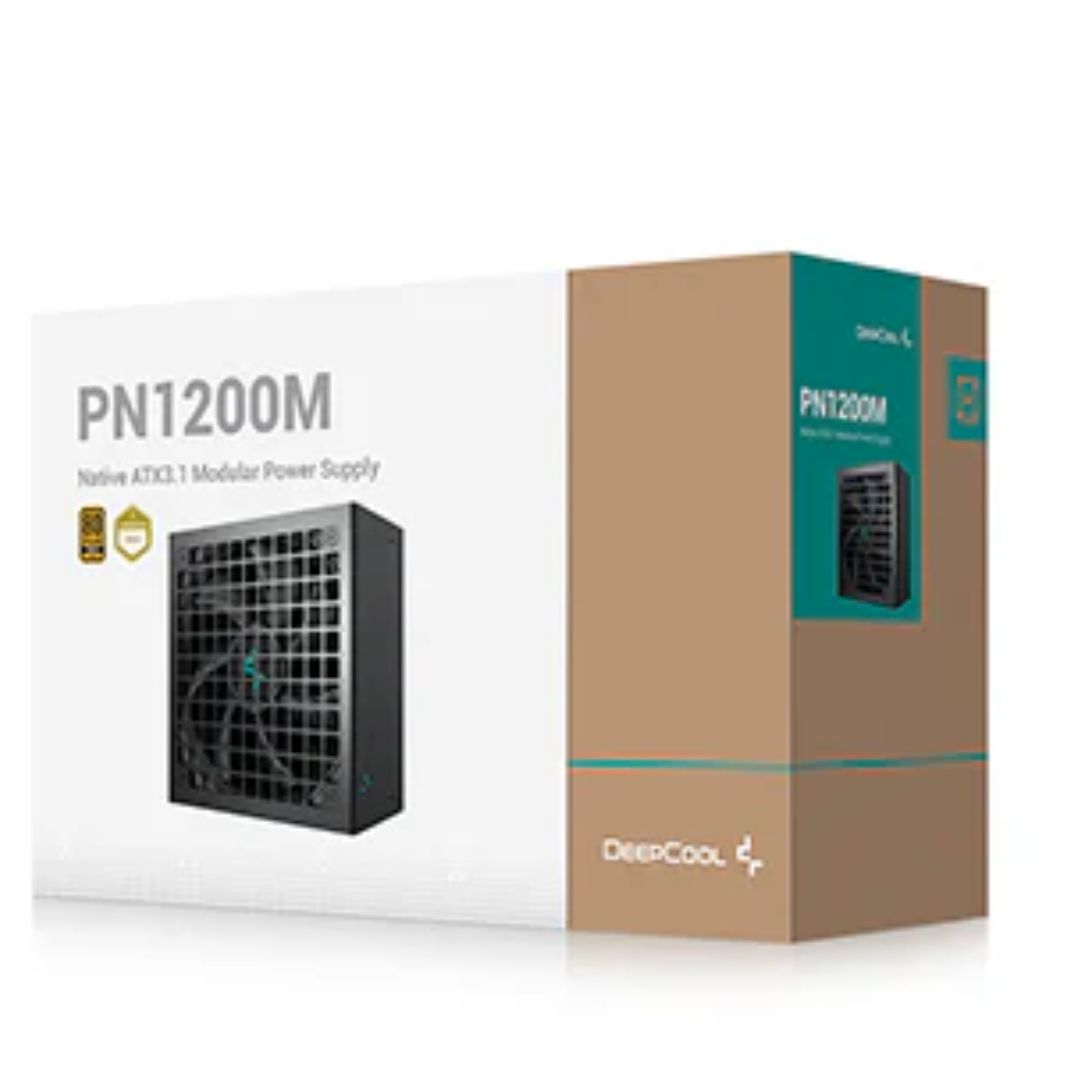

DeepCool PN1200M 1200W 80+ Gold Fully Modular Power Supply
DeepCool PN1200M 1200W 80+ Gold Fully Modular Power Supply
SKU:PSD-PN1200M
The DeepCool PN1200M is a 1200W fully modular power supply designed for high-performance gaming and workstation builds. Featuring 80+ Gold efficiency, PCIe 5.1 compatibility, and a dynamic 135mm FDB fan, it delivers stable power and excellent thermal management for modern systems.
Couldn't load pickup availability
- See our return policy
- 12 months Manufacturer Warranty
Product Information
| Brand | DEEPCOOL |
|---|---|
| Category | Power Supplies |
| SKU | PSD-PN1200M |
| Availability | In Stock |
Overview
- The DeepCool PN1200M is a premium 1200W fully modular power supply engineered for modern computing demands. It meets the latest Intel ATX 3.1 and PCIe 5.1 standards, making it ideal for cutting-edge systems featuring high-performance GPUs and multi-component setups. The unit delivers up to 600W dedicated power for modern graphics cards via its high-grade 12V-2x6 connector, ensuring stable performance under demanding workloads.
Built with Japanese bulk electrolytic capacitors and advanced active PFC topology, the PN1200M maintains exceptional power stability with a hold-up time of ≥16ms at 80% load. The dynamic 135mm FDB (Fluid Dynamic Bearing) fan adjusts cooling output based on real-time thermal requirements, reducing noise during light loads whilst maintaining optimal temperatures under sustained use.
Fully modular cabling eliminates unnecessary wires in your chassis, improving airflow and simplifying system builds. With 80+ Gold efficiency certification and ≥90% efficiency at 50% load, the PN1200M minimises energy waste and heat generation. Comprehensive protection circuitry including OPP, OVP, SCP, OTP, OCP, UVP, SIP, and NLO safeguards your components against electrical irregularities.
Specifications
| Wattage | 1200W |
|---|---|
| Form Factor | ATX12V v3.1 |
| Modular Design | Fully Modular |
| Efficiency Rating | 80+ Gold |
| Efficiency @ 50% Load | ≥90% |
| Fan Size | 135mm |
| Fan Type | FDB (Fluid Dynamic Bearing) |
| Capacitors | Japanese Bulk Electrolytic |
| Topology | Active PFC + Half Bridge SRC LLC + DC to DC |
| PCIe 5.1 Connector | 12V-2x6 (up to 600W) |
| EPS/PCIe Ports | 5 |
| Hold-up Time | ≥16ms at 80% load |
| Power Good Signal | 100–150ms |
| Operating Temperature | 0–40°C |
| Dimensions | 150 × 150 × 86mm (W × L × H) |
| Protection Features | OPP, OVP, SCP, OTP, OCP, UVP, SIP, NLO |
| MTBF | 100,000 hours |
| Warranty | 12 months |
| Certifications | CE, FCC, CCC, TUV-RH, cTUVus, RCM, EAC, BIS |
| Compliance | ErP 2014, WEEE, RoHS, Triman, P65 |
Key Features
Ideal For
FAQs
Is the DeepCool PN1200M suitable for PCIe 5.0 graphics cards?
Yes. The PN1200M is PCIe 5.1 compliant and features a dedicated 12V-2x6 connector capable of delivering up to 600W, making it ideal for next-generation and current high-power graphics cards.
What does fully modular mean, and why is it important?
Fully modular means all cables, including the main 24-pin connector, are removable. This improves cable management, reduces clutter in your chassis, enhances airflow, and simplifies system builds and upgrades.
What is the difference between 80+ Gold and other efficiency ratings?
80+ Gold certification means the power supply operates at ≥90% efficiency at 50% load. This reduces energy waste, lowers electricity costs, and generates less heat compared to lower efficiency ratings.
What is FDB fan bearing and why is it used?
FDB (Fluid Dynamic Bearing) technology uses a fluid-filled bearing system to reduce friction and noise. It offers quieter operation, extended lifespan, and reliable cooling compared to traditional ball bearings.
Does the PN1200M include protection against power surges and faults?
Yes. The unit includes comprehensive protection: OPP (Overpower), OVP (Overvoltage), SCP (Short Circuit), OTP (Overtemperature), OCP (Overcurrent), UVP (Undervoltage), SIP (Signal In Protection), and NLO (No Load Operation).
What is the hold-up time, and why does it matter?
Hold-up time (≥16ms at 80% load) is the duration the PSU maintains stable power after input voltage drops. A longer hold-up time prevents system shutdowns during brief power fluctuations.
Is the PN1200M suitable for mining or intensive workloads?
The PN1200M is designed for high-performance systems and demanding workloads. Its 1200W capacity, advanced topology, and comprehensive protections make it suitable for sustained intensive computing tasks, though specific workload suitability should be assessed based on your system configuration.
