DeepCool PS1000P 1000W SFX Platinum Power Supply
DeepCool PS1000P 1000W SFX Platinum Power Supply
SKU:PSD-PS1000P

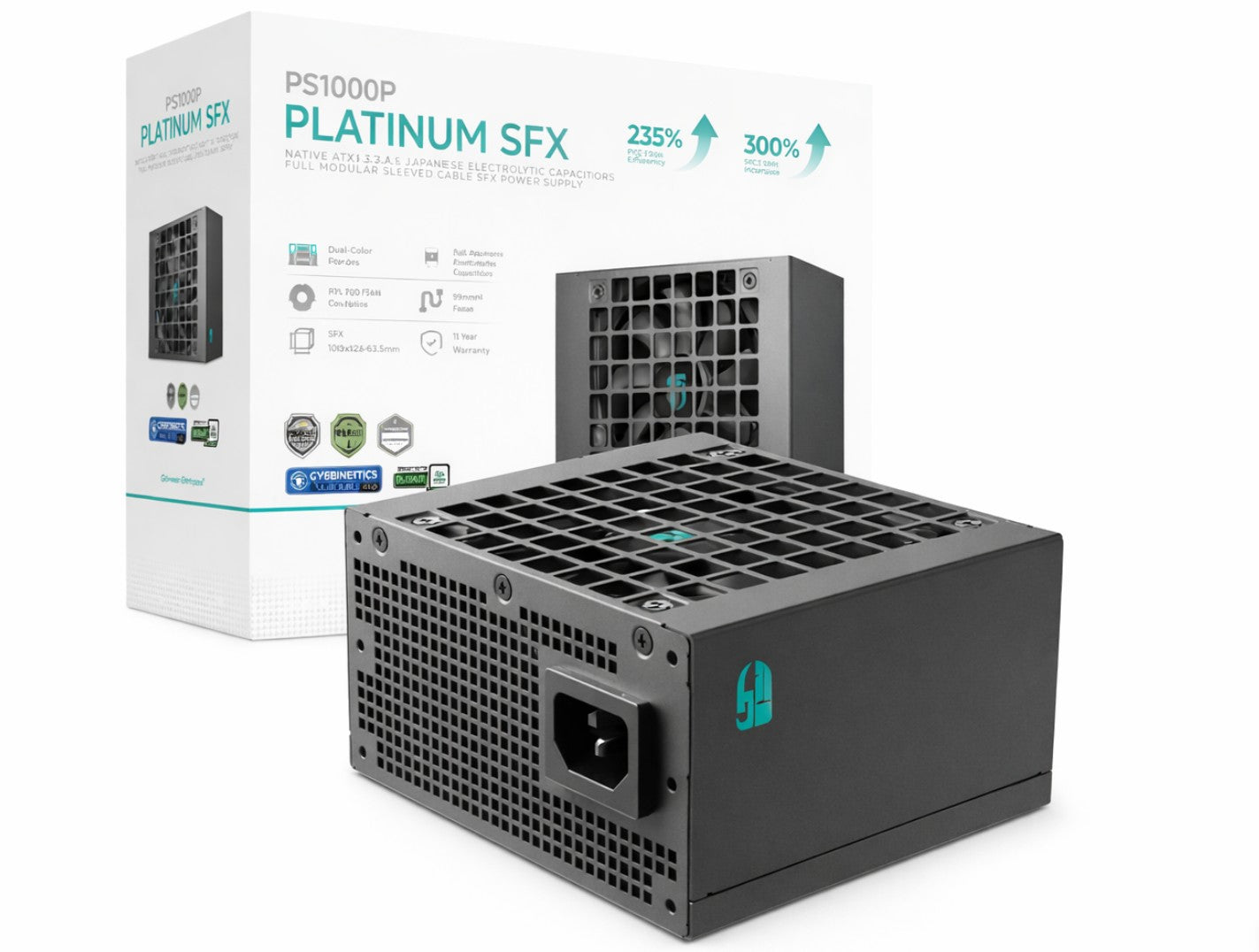

The DeepCool PS1000P is a 1000W SFX power supply featuring Cybenetics Platinum efficiency certification, full Japanese electrolytic capacitors, and advanced protection circuitry. Designed for compact gaming and workstation builds, it delivers reliable power with 92%+ efficiency and comprehensive safeguards for sensitive hardware.
Couldn't load pickup availability
- See our return policy
- 7 years Manufacturer Warranty
Product Information
| Brand | DEEPCOOL |
|---|---|
| Category | Power Supplies |
| SKU | PSD-PS1000P |
| Availability | In Stock |
Overview
- The DeepCool PS1000P is a high-efficiency 1000W power supply engineered for compact and demanding builds. With its SFX form factor (125×100×63.5mm), it fits perfectly into mini-ITX and small-form-factor chassis without compromising on power delivery or reliability.
Built with full Japanese electrolytic capacitors and backed by Cybenetics Platinum efficiency certification, the PS1000P achieves ≥92% efficiency at typical loads. This means less wasted energy, lower operating temperatures, and reduced electricity costs—critical benefits for businesses and enthusiasts running systems continuously.
Comprehensive protection circuitry—including over-power, over-voltage, short-circuit, over-temperature, over-current, under-voltage, and soft-start protection—safeguards your expensive components. The quiet FDB bearing fan and advanced topologies (Active PFC + Half Bridge SRC LLC + DC-DC conversion) ensure whisper-quiet operation even under sustained load.
Backed by a 7-year warranty and rated for 100,000 hours MTBF, the PS1000P is a trusted choice for integrators, IT managers, and professionals who demand proven reliability in space-constrained environments.
Specifications
| Model | PS1000P |
|---|---|
| Total Output | 1000W |
| Form Factor | SFX12V V4.1 & ATX12V V3.1 |
| Dimensions | 125×100×63.5mm (W×L×H) |
| Weight | Not specified |
| Fan Size | 92×92×15mm |
| Fan Bearing Type | FDB (Fluid Dynamic Bearing) |
| Efficiency Rating | Cybenetics Platinum/PPLP 115V |
| Efficiency (Typical) | ≥92% at 50% load |
| Power Good Signal | 100-150ms |
| Hold-Up Time | ≥16ms at 80% load |
| Topology | Active PFC + Half Bridge SRC LLC + DC-to-DC |
| Capacitor Type | Full Japanese Electrolytic |
| Protection Features | OPP, OVP, SCP, OTP, OCP, UVP, SIP, NLO |
| Operating Temperature | 0°C to 40°C |
| MTBF | 100,000 hours |
| Certifications | TÜV-RH, CCC, CE, RCM, EAC |
| Compliance | ErP 2014, RoHS, WEEE |
| Warranty | 7 years |
Key Features
Ideal For
FAQs
Is the DeepCool PS1000P suitable for compact PC builds?
Yes. The PS1000P is specifically designed for small-form-factor (SFF) systems. At 125×100×63.5mm, it fits into mini-ITX and compact chassis while delivering full 1000W capacity, making it ideal for high-performance builds with limited space.
What does Cybenetics Platinum certification mean?
Cybenetics Platinum is an independent efficiency standard. It verifies that the power supply delivers ≥92% efficiency at 50% load, reducing energy waste, heat generation, and electricity costs. This is higher than standard Bronze or Gold ratings.
Why are Japanese electrolytic capacitors important?
Japanese electrolytic capacitors are engineered for superior longevity and stability. They maintain performance over extended operating periods, reducing the risk of failure and ensuring consistent power delivery to sensitive components.
What protection does this power supply offer?
The PS1000P includes eight protection mechanisms: Over-Power (OPP), Over-Voltage (OVP), Short-Circuit (SCP), Over-Temperature (OTP), Over-Current (OCP), Under-Voltage (UVP), Soft-Start (SIP), and No-Load Output (NLO) protection, safeguarding your system components.
How long is the warranty?
The DeepCool PS1000P comes with a 7-year manufacturer warranty, backed by a 100,000-hour MTBF (Mean Time Between Failures) rating, reflecting DeepCool's confidence in the unit's reliability.
Is this power supply compatible with standard ATX motherboards?
Yes. The PS1000P supports both SFX12V V4.1 and ATX12V V3.1 standards, ensuring broad compatibility with modern motherboards and components across different build types.
What is the hold-up time and why does it matter?
Hold-up time (≥16ms at 80% load) is how long the power supply maintains output during a brief power interruption. This allows your system to remain stable during power fluctuations, protecting against data loss and hardware damage.
