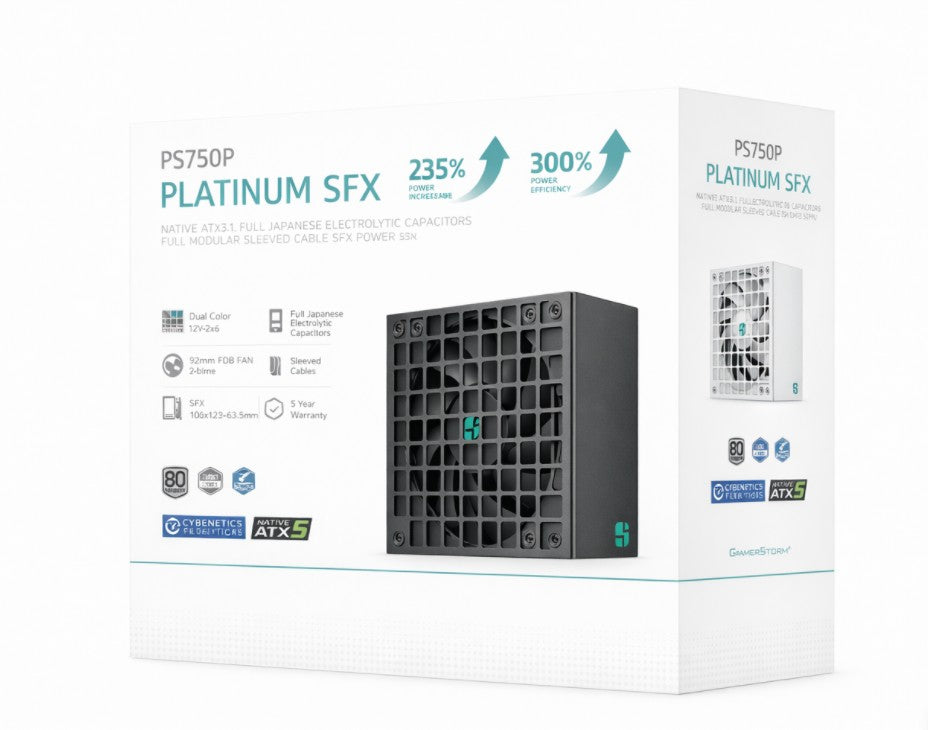

DeepCool PS750P 750W SFX Modular Power Supply
DeepCool PS750P 750W SFX Modular Power Supply
SKU:PSD-PS750P
Couldn't load pickup availability
- See our return policy
- 7 years Manufacturer Warranty
Product Information
| Brand | DEEPCOOL |
|---|---|
| Category | Power Supplies |
| SKU | PSD-PS750P |
| Availability | In Stock |
Overview
- The DeepCool PS750P delivers 750W of stable, efficient power in a compact SFX form factor, making it ideal for space-constrained builds without compromising on performance. The Cybenetics Platinum efficiency certification ensures ≥92% efficiency at typical 50% loading, reducing heat generation and power consumption costs across extended operation periods.
Built with full Japanese electrolytic capacitors and advanced power topology (Active PFC + Half Bridge SRC LLC + DC to DC), the PS750P provides superior stability and longevity. Multiple safety protections including over-power, over-voltage, short-circuit, over-temperature, and under-voltage safeguards protect connected components from damage.
With an industry-leading 7-year warranty and 100,000-hour MTBF rating, this power supply is engineered for long-term reliability. Regulatory compliance includes TÜV, CCC, CE, RCM, and EAC certifications, ensuring it meets international safety and quality standards. The compact 125 × 100 × 63.5mm footprint fits tight spaces whilst maintaining thermal performance through its 92mm FDB bearing fan.
Specifications
| Brand | DeepCool |
|---|---|
| Model | PS750P |
| Product Type | Modular Power Supply |
| Total Output | 750W |
| Form Factor | SFX |
| Voltage Standards | SFX12V V4.1 & ATX12V V3.1 |
| Dimensions | 125 × 100 × 63.5mm (W × L × H) |
| Fan Size | 92 × 92 × 15mm |
| Fan Bearing Type | FDB (Fluid Dynamic Bearing) |
| Power Topology | Active PFC + Half Bridge SRC LLC + DC to DC |
| Capacitors | Full Japanese Electrolytic |
| Efficiency Certification | Cybenetics Platinum/PPLP 115V |
| Efficiency Rating | ≥92% at 50% typical load |
| Power Good Signal | 100–150ms |
| Hold-up Time | ≥16ms at 80% load |
| Operating Temperature | 0–40°C |
| Protection Features | OPP, OVP, SCP, OTP, OCP, UVP, SIP, NLO |
| MTBF | 100,000 hours |
| Warranty | 7 years |
| Regulatory Certifications | TÜV-RH, CCC, CE, RCM, EAC |
| Environmental Standards | RoHS 3, WEEE, Triman, EAC 037, ErP 2014 |
Key Features
Ideal For
FAQs
Is the DeepCool PS750P suitable for compact PC builds?
Yes. The PS750P is designed in SFX form factor (125 × 100 × 63.5mm), making it ideal for small-form-factor cases and compact builds where standard ATX power supplies won't fit.
What does Cybenetics Platinum certification mean?
Cybenetics Platinum is an independent efficiency certification indicating the power supply converts AC mains power to DC with ≥92% efficiency at 50% load. This reduces wasted energy, heat output, and operational costs over time.
What protection systems does this power supply include?
The PS750P includes comprehensive protections: Over-Power Protection (OPP), Over-Voltage Protection (OVP), Short-Circuit Protection (SCP), Over-Temperature Protection (OTP), Over-Current Protection (OCP), Under-Voltage Protection (UVP), Soft-Start Inrush Protection (SIP), and No-Load Operation (NLO).
How long is the warranty on the DeepCool PS750P?
The PS750P comes with a 7-year warranty, backed by a 100,000-hour Mean Time Between Failures (MTBF) rating, demonstrating long-term reliability.
What is the hold-up time, and why does it matter?
Hold-up time is ≥16ms at 80% load. This means the power supply maintains stable output for at least 16 milliseconds during brief power interruptions, protecting your system from unexpected shutdowns.
Does the PS750P use Japanese capacitors?
Yes. The PS750P is built with full Japanese electrolytic capacitors, which are generally more reliable and durable than standard alternatives, contributing to extended lifespan.
What regulatory standards does this power supply meet?
The PS750P complies with TÜV-RH, CCC, CE, RCM, and EAC certifications, plus RoHS 3, WEEE, and ErP 2014 environmental standards, ensuring safety and compliance across global markets including Australia.
