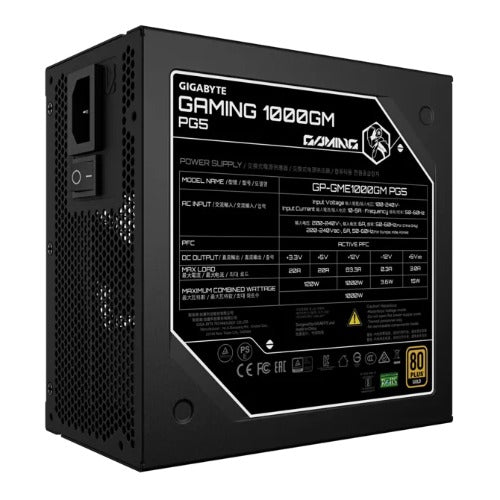

Gigabyte Gaming 1000GM PG5 1000W 80+ Gold PSU
Gigabyte Gaming 1000GM PG5 1000W 80+ Gold PSU
SKU:CFGP-GME1000GMPG5
Couldn't load pickup availability
- See our return policy
- 36 months Manufacturer Warranty
Product Information
| Brand | Gigabyte |
|---|---|
| Category | Power Supplies |
| SKU | CFGP-GME1000GMPG5 |
| Availability | In Stock |
Overview
- The Gigabyte Gaming 1000GM PG5 is a premium 1000W power supply purpose-built for modern high-performance systems. With ATX 3.1 compliance and dedicated PCIe 5.0 16-pin connector support, it meets the power demands of the latest graphics cards and processors whilst maintaining exceptional efficiency.
The fully modular cable design eliminates unnecessary wiring, reducing clutter and improving airflow within your chassis. This is particularly valuable for builders working with compact cases or those prioritising aesthetics. The 135mm FDB fan operates quietly whilst maintaining optimal thermal performance across varying load conditions.
Gigabyte's comprehensive protection suite—including overvoltage, overcurrent, short circuit, and thermal protection—safeguards your expensive components against electrical faults. With a 100,000+ hour MTBF rating and 36-month warranty, this PSU is engineered for long-term reliability in demanding environments.
Ideal for gaming enthusiasts, system builders, and professionals requiring a future-proof power solution that balances performance, efficiency, and build quality.
Specifications
| Brand | Gigabyte |
|---|---|
| Model | Gaming 1000GM PG5 |
| Output Capacity | 1000W |
| Efficiency Rating | 80+ Gold |
| Efficiency at Typical Load | 90% |
| Form Factor | ATX 12V v3.1 |
| Compliance | ATX 3.1, PCIe 5.0 |
| Input Voltage | 100-240 Vac (full range) |
| Input Frequency | 50-60 Hz |
| Input Current | 12-6A |
| Power Factor Correction | Active PFC (>0.9 typical) |
| Fan Size | 135mm FDB |
| Dimensions | 150 x 150 x 86mm |
| Cable Type | Fully modular, embossed, all black |
| Main Connectors | ATX/MB 20+4 pin x1 (610mm), CPU/EPS 4+4 pin x2 (600mm each) |
| PCIe Connectors | PCIe 16-pin x1 (700mm), PCIe 6+2 pin x4 (600mm + 150mm variants) |
| SATA Connectors | SATA x8 (600mm, 150mm, 150mm, 150mm variants) |
| Peripheral Connectors | 4-pin x4 (500mm, 150mm, 150mm, 150mm variants) |
| Protection Features | OVP, OPP, SCP, UVP, OCP, OTP, NLO, SIP |
| Power Good Signal | 100-150ms |
| Hold Up Time | ≥17ms at 80% load |
| MTBF | ≥100,000 hours |
| Warranty | 36 months |
Key Features
Ideal For
FAQs
Is this PSU suitable for next-generation graphics cards?
Yes. The Gigabyte Gaming 1000GM PG5 features a dedicated PCIe 5.0 16-pin connector and ATX 3.1 compliance, making it fully compatible with next-generation high-power GPUs.
What does fully modular mean?
Fully modular means all cables—including the main ATX, CPU, and PCIe connectors—can be disconnected from the PSU. This allows you to use only the cables you need, reducing clutter and improving airflow in your case.
What is 80+ Gold efficiency?
80+ Gold certification means the PSU converts at least 87% of AC power to usable DC power under typical loads. The Gigabyte Gaming 1000GM PG5 achieves 90% efficiency, resulting in lower energy waste, reduced heat output, and lower electricity costs.
What is MTBF and why does it matter?
MTBF (Mean Time Before Failure) indicates the average operating hours before a component is expected to fail. The 100,000+ hour rating on this PSU means it's engineered for long-term reliability, typically providing 10+ years of service with normal use.
What protections does this PSU provide?
The Gaming 1000GM PG5 includes overvoltage protection (OVP), overcurrent protection (OCP), short circuit protection (SCP), thermal protection (OTP), undervoltage protection (UVP), and overpower protection (OPP). These safeguard against electrical faults and component damage.
What is the warranty period?
Gigabyte provides a 36-month (3-year) manufacturer's warranty covering defects in materials and workmanship.
Can I use this PSU in a compact case?
The compact 150 x 150 x 86mm dimensions make this PSU suitable for many mid-range cases. However, verify your case specifications before purchase to ensure proper fit, as some smaller chassis may have restrictions.
Is active PFC important?
Yes. Active PFC (power factor correction) improves power quality and efficiency whilst reducing electrical harmonics and heat output. This benefits both your system and the power grid.
