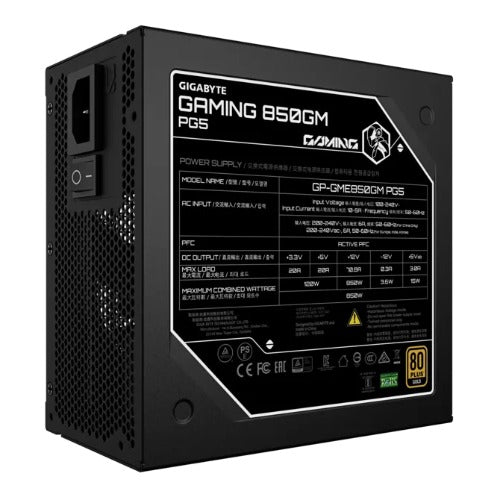

Gigabyte Gaming 850GM PG5 850W 80+ Gold Power Supply
Gigabyte Gaming 850GM PG5 850W 80+ Gold Power Supply
SKU:CFGP-GME850GMPG5
Couldn't load pickup availability
- See our return policy
- 36 months Manufacturer Warranty
Product Information
| Brand | Gigabyte |
|---|---|
| Category | Power Supplies |
| SKU | CFGP-GME850GMPG5 |
| Availability | In Stock |
Overview
- The Gigabyte Gaming 850GM PG5 delivers 850W of stable, efficient power to support modern high-performance systems. Built with 80+ Gold certification, it achieves 90% efficiency at typical loads, reducing power consumption and heat generation. The unit is fully compatible with next-generation hardware, featuring ATX3.1 compliance and a native PCIe 5.0 16-pin connector.
Comprehensive protection circuitry including overvoltage, overcurrent, short-circuit, and thermal protection ensures your system stays safe under all conditions. The 135mm FDB (Fluid Dynamic Bearing) fan operates quietly while maintaining effective thermal management. With a 100,000+ hour MTBF rating and 36-month warranty, this is a reliable choice for systems that demand consistent power.
Fully modular cabling allows clean, organised builds, and extended cable lengths accommodate various case configurations. Whether you're building a gaming rig, professional workstation, or upgrading existing infrastructure, the Gaming 850GM PG5 provides the efficiency, features, and protection modern systems require.
Specifications
| Brand | Gigabyte |
|---|---|
| Model | GP-GME850GM PG5 |
| Output Power | 850W |
| Form Factor | ATX 12V v3.1 |
| 80 PLUS Certification | Gold |
| Efficiency | 90% at typical load |
| Input Voltage | 100–240 VAC |
| Input Current | 10–5A |
| Input Frequency | 50–60 Hz |
| Power Factor Correction | Active PFC (>0.9 typical) |
| Fan Type | 135mm FDB (Fluid Dynamic Bearing) |
| Dimensions | 150 × 150 × 86 mm |
| Cooling | Single 135mm FDB fan |
| MTBF | >100,000 hours |
| Hold-Up Time | >17 ms (at 80% load) |
| Power Good Signal | 100–150 ms |
| Protection Features | OVP, OPP, SCP, UVP, OCP, OTP, NLO, SIP |
| Cabling | Fully modular, embossed all-black cables |
| Connectors | ATX/MB 20+4 pin (1), CPU/EPS 4+4 pin (2), PCIe 16 pin (1), PCIe 6+2 pin (4), SATA (8), 4-pin peripheral (4) |
| Cable Length (ATX) | 610 mm |
| Cable Length (EPS) | 600 mm |
| Cable Length (PCIe 16) | 700 mm |
| Cable Length (PCIe 6+2) | 600–750 mm |
| Cable Length (SATA) | 600–900 mm |
| Cable Length (Peripheral) | 500–650 mm |
| Warranty | 36 months |
Key Features
Ideal For
FAQs
Is the Gigabyte Gaming 850GM PG5 compatible with PCIe 5.0 graphics cards?
Yes. The unit features a native PCIe 5.0 16-pin connector and full ATX3.1 compliance, making it fully compatible with next-generation PCIe 5.0 graphics cards.
What does 80+ Gold certification mean?
80+ Gold means the power supply maintains at least 90% efficiency across typical load ranges, reducing power waste and heat output. This lowers running costs and energy consumption.
Is this unit fully modular?
Yes. All cables are fully modular, allowing you to disconnect unused cables and create a cleaner, more organised system build.
What protection does this power supply offer?
The unit includes comprehensive protection: over-voltage (OVP), over-power (OPP), short-circuit (SCP), under-voltage (UVP), over-current (OCP), over-temperature (OTP), no-load (NLO), and soft-start (SIP).
How long is the warranty?
The Gigabyte Gaming 850GM PG5 comes with a 36-month (3-year) manufacturer's warranty.
What is the MTBF rating?
The unit has a Mean Time Between Failures (MTBF) rating of greater than 100,000 hours, indicating long-term reliability and durability.
Will this power supply work with my current system?
The 850W capacity and ATX 12V v3.1 form factor make it compatible with most modern systems. However, confirm your system's power requirements and motherboard ATX standard to ensure proper compatibility.
