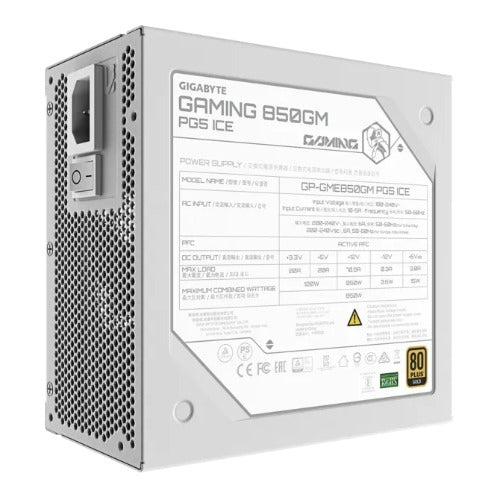

Gigabyte Gaming 850GM PG5 Ice 850W 80+ Gold PSU
Gigabyte Gaming 850GM PG5 Ice 850W 80+ Gold PSU
SKU:CFGP-GME850GMPG5ICE
Couldn't load pickup availability
- See our return policy
- 36 months (3 years) Manufacturer Warranty
Product Information
| Brand | Gigabyte |
|---|---|
| Category | Power Supplies |
| SKU | CFGP-GME850GMPG5ICE |
| Availability | In Stock |
Overview
- The Gigabyte Gaming 850GM PG5 Ice is an 850W power supply engineered for modern high-performance systems. With ATX 3.1 compliance and PCIe 5.0 16-pin connector support, it's future-proofed for next-generation graphics cards and components. The 80+ Gold efficiency rating ensures 90% power conversion at typical loads, reducing energy waste and operating costs whilst maintaining stable, clean power delivery.
Comprehensive protection circuits including overvoltage, overcurrent, short-circuit, and thermal management safeguard your system and connected components. The 135mm FDB fan provides efficient cooling with minimal noise, whilst the fully modular cabling design simplifies cable management and improves airflow within your chassis.
Built for reliability, this unit delivers >100,000 hours MTBF and comes backed by a 3-year manufacturer warranty. The active PFC circuit (>0.9) optimises power factor, making it ideal for both gaming enthusiasts and professional environments where power quality and efficiency matter.
Specifications
| Brand | Gigabyte |
|---|---|
| Model | Gaming 850GM PG5 Ice |
| Output Capacity | 850W |
| Form Factor | ATX 12V v3.1 |
| Efficiency Rating | 80+ Gold |
| Efficiency at Typical Load | 90% |
| Input Voltage | 100-240 Vac |
| Input Current | 10-5A |
| Input Frequency | 50-60 Hz |
| Power Factor Correction | Active PFC (>0.9 typical) |
| Fan Type | 135mm FDB (Fluid Dynamic Bearing) |
| Dimensions | 150 x 150 x 86mm |
| MTBF | >100,000 hours |
| Hold Up Time | >17ms at 80% load |
| Power Good Signal | 100-150ms |
| Cable Type | Fully modular, embossed, all-black sleeved |
| Protection Features | OVP (Overvoltage Protection), OPP (Overpower Protection), SCP (Short-Circuit Protection), UVP (Undervoltage Protection), OCP (Overcurrent Protection), OTP (Over-Temperature Protection), NLO (No Load Operation), SIP (Surge Input Protection) |
| ATX Connector (20+4 Pin) | 1x 610mm cable |
| CPU/EPS Connector (4+4 Pin) | 2x 600mm cables |
| PCIe 16-Pin Connector | 1x 700mm cable |
| PCIe 6+2 Pin Connectors | 4x (600mm + 150mm cables) |
| SATA Connectors | 8x (600mm + 150mm + 150mm + 150mm cables) |
| 4-Pin Peripheral Connectors | 4x (500mm + 150mm + 150mm + 150mm cables) |
| Warranty | 36 months (3 years) |
Key Features
Ideal For
FAQs
Is the Gigabyte Gaming 850GM PG5 Ice suitable for next-generation graphics cards?
Yes. The PSU features ATX 3.1 compliance and includes a PCIe 5.0 16-pin connector, making it compatible with next-generation high-power graphics cards that require this connector type.
What does 80+ Gold efficiency mean?
80+ Gold means the PSU converts at least 87% of input power to usable output power at typical operating loads. This model achieves 90% efficiency at typical load, reducing energy waste and operating costs whilst generating less heat.
What is MTBF and why does it matter?
MTBF (Mean Time Between Failures) is the average operational time before a component fails. This unit's >100,000-hour rating indicates excellent reliability and longevity, translating to many years of dependable use.
Can I use this PSU in different countries?
Yes. The unit supports universal input voltage (100-240 Vac) and operates on both 50Hz and 60Hz frequencies, making it suitable for use worldwide.
Is the Gigabyte Gaming 850GM PG5 Ice fully modular?
Yes, the PSU features fully modular cabling. All power cables disconnect from the unit, allowing for cleaner cable management and improved airflow in your system.
What protection features does this PSU include?
The unit includes comprehensive protection: OVP (overvoltage), OPP (overpower), SCP (short-circuit), UVP (undervoltage), OCP (overcurrent), and OTP (over-temperature protection), plus NLO and SIP circuits.
What is the warranty period?
The Gigabyte Gaming 850GM PG5 Ice comes with a 3-year manufacturer warranty covering defects in materials and workmanship.
