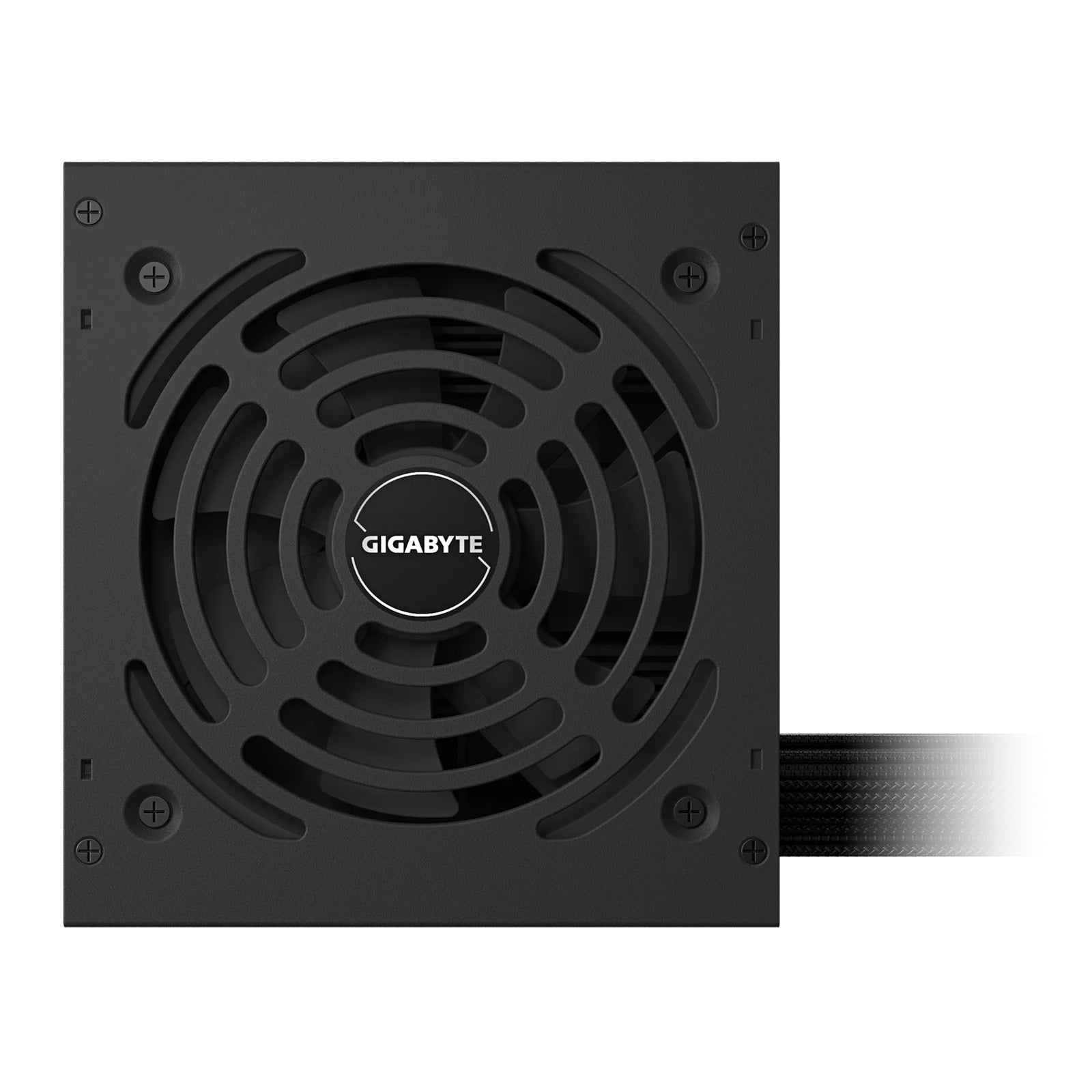

Gigabyte GP-P650G 650W 80+ Gold Power Supply
Gigabyte GP-P650G 650W 80+ Gold Power Supply
SKU:PSG-P650GPG5
Couldn't load pickup availability
- See our return policy
- 36 months Manufacturer Warranty
Product Information
| Brand | Gigabyte |
|---|---|
| Category | Power Supplies |
| SKU | PSG-P650GPG5 |
| Availability | In Stock |
Overview
- The Gigabyte GP-P650G is a 650W power supply built to support modern computing demands. With 80+ Gold certification and 90% efficiency at typical load, it minimises energy waste whilst maintaining stable power delivery. The unit is fully compatible with PCIe 5.1 architecture, making it suitable for next-generation graphics cards and high-speed storage devices.
Comprehensive protection circuits including OVP, OPP, SCP, UVP, OCP, and OTP ensure your system remains safe from voltage fluctuations and overload conditions. The 120mm hybrid fan operates intelligently to maintain optimal temperatures whilst keeping noise levels low during normal operation.
With a range of connectors including the new 16-pin PCIe connector, flexible cable lengths, and all-black embossed cables, the GP-P650G suits both compact and full-size PC builds. The 36-month warranty provides additional peace of mind for business and professional users.
Specifications
| Brand | Gigabyte |
|---|---|
| Model | GP-P650G |
| Product Type | ATX Power Supply |
| Form Factor | Intel ATX 12V v3.1 |
| Output Capacity | 650W |
| Efficiency Rating | 80+ Gold |
| Efficiency at Typical Load | 90% |
| Input Voltage | 100–240 VAC |
| Input Current | 10–6 A |
| Input Frequency | 60–50 Hz |
| PFC Type | Active PFC (>0.9 typical) |
| Fan | 120mm Hybrid |
| Dimensions | 150 × 140 × 86 mm |
| Cable Type | All-black embossed |
| Protection Circuits | OVP, OPP, SCP, UVP, OCP, OTP |
| Power Good Signal | 100–150 ms |
| Hold-up Time | >17 ms |
| MTBF | >100,000 hours |
| Warranty | 36 months |
| Connectors | {"ATX/MB"=>"20+4 Pin × 1 (600 mm)", "CPU/EPS"=>"4+4 Pin × 1 (600 mm + 150 mm)", "PCIe 16 Pin"=>"1 × (500 mm)", "PCIe 6+2 Pin"=>"2 × (500 mm + 150 mm)", "SATA"=>"6 × (420 mm + 150 mm + 150 mm)", "4-Pin Peripheral"=>"3 × (420 mm + 150 mm + 150 mm)"} |
Key Features
Ideal For
FAQs
Is the Gigabyte GP-P650G suitable for high-end gaming systems?
Yes. The 650W capacity with 80+ Gold efficiency makes it suitable for gaming PCs with modern graphics cards. The PCIe 5.1 support and 16-pin connector ensure compatibility with next-generation components.
What does 80+ Gold certification mean?
80+ Gold means the power supply achieves at least 90% efficiency at 50% load. This reduces energy waste, lowers electricity costs, and minimises heat generation during operation.
Does this power supply support PCIe 5.0 graphics cards?
Yes. The GP-P650G is PCIe 5.1 compatible and includes a 16-pin PCIe connector to support next-generation high-power graphics cards and devices.
What protection features does this power supply include?
The GP-P650G includes OVP (Over Voltage Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), and OTP (Over Temperature Protection).
How long is the warranty?
The Gigabyte GP-P650G comes with a 36-month (3-year) manufacturer warranty.
What is the MTBF rating?
The MTBF (Mean Time Between Failures) is rated at greater than 100,000 hours, indicating excellent long-term reliability for continuous use.
