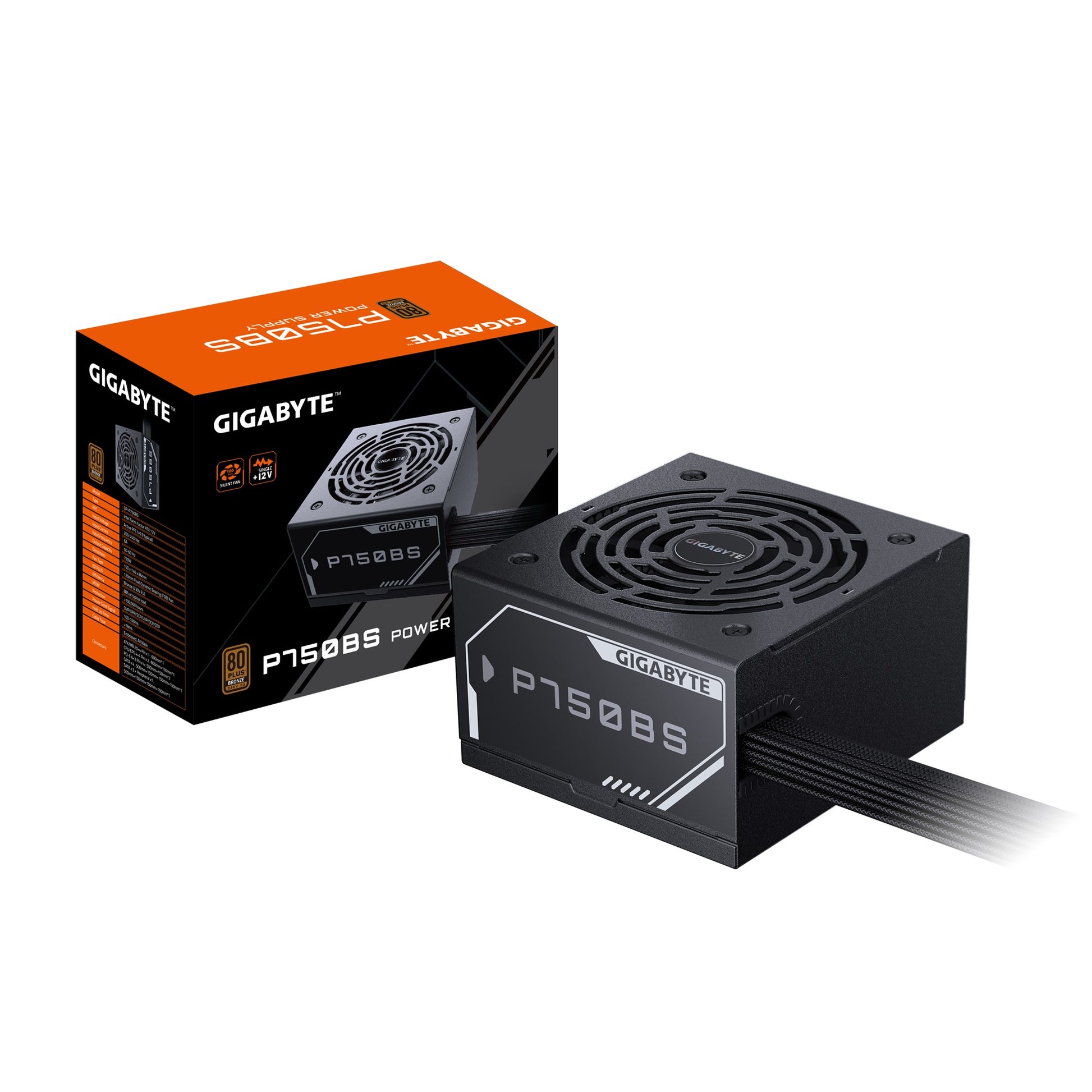

Gigabyte P750BS 750W ATX Power Supply
Gigabyte P750BS 750W ATX Power Supply
SKU:PSG-P750BS
Couldn't load pickup availability
- See our return policy
- 3 years Manufacturer Warranty
Product Information
| Brand | Gigabyte |
|---|---|
| Category | Power Supplies |
| SKU | PSG-P750BS |
| Availability | In Stock |
Overview
- The Gigabyte P750BS is a robust 750W power supply built to meet the demands of modern mid-range desktop systems. With 80 PLUS Bronze certification, it delivers 88% efficiency at typical loads, reducing operating costs and heat generation across your infrastructure.
Designed for reliability, the P750BS features a 120mm Fluid Dynamic Bearing fan for quiet, efficient cooling, Active Power Factor Correction to minimise power waste, and comprehensive protection circuits including overvoltage, overcurrent, and thermal safeguards. The fully modular cable system with black sleeved connectors simplifies cable management and improves airflow within system chassis.
With an MTBF rating exceeding 100,000 hours and a 3-year manufacturer warranty, this power supply is engineered for businesses and professionals who require dependable power delivery without compromise. It's suitable for workstations, gaming systems, and integrated deployments across Australian organisations.
Specifications
| model | GP-P750BS |
|---|---|
| form_factor | Intel ATX 12V |
| output_capacity | 750W |
| efficiency_rating | 80 PLUS Bronze |
| efficiency_at_typical_load | 88% |
| pfc_type | Active PFC (>0.9 typical) |
| input_voltage | 200–240 VAC |
| input_current | 6A |
| input_frequency | 50–60 Hz |
| fan_type | 120mm Fluid Dynamic Bearing (FDB) |
| fan_speed_control | Temperature-controlled |
| mtbf_hours | >100,000 hours |
| power_good_signal | 100–150ms |
| hold_up_time | >16ms |
| protection_features | OVP, OPP, SCP, UVP, OCP, OTP |
| cable_type | Fully modular, embossed, all-black sleeved |
| connectors | {"atx_mb"=>"20+4 Pin × 1 (600mm)", "cpu_eps"=>"4+4 Pin × 2 (600mm + 150mm)", "pci_e"=>"6+2 Pin × 4 (500mm + 150mm × 2)", "sata"=>"4 × SATA (500mm + 150mm + 150mm + 150mm), 3 × SATA + 1 × Peripheral (500mm + 150mm + 150mm + 150mm)"} |
| dimensions | 150 × 140 × 86 mm |
| warranty | 3 years |
Key Features
Ideal For
FAQs
Is the Gigabyte P750BS suitable for high-end gaming or workstations?
The P750BS is designed for mid-range systems. It provides adequate power for gaming PCs and workstations with mid-to-high-end graphics cards. For systems with multiple high-power GPUs or professional rendering workloads, consider higher wattage models (850W+).
What does 80 PLUS Bronze certification mean?
80 PLUS Bronze means the power supply operates at 80% efficiency or higher at 20%, 50%, and 100% load. This reduces heat output, lowers electricity costs, and decreases environmental impact compared to non-certified supplies.
Does the P750BS come with all necessary cables?
Yes, the P750BS includes fully modular cables with ATX/MB, CPU/EPS, PCI-E, and SATA connectors. All cables are black sleeved for a professional appearance and improved airflow management.
What is the warranty coverage?
The Gigabyte P750BS includes a 3-year manufacturer warranty covering defects in materials and workmanship.
How loud is the 120mm fan?
The 120mm Fluid Dynamic Bearing fan is designed for quiet operation with temperature-controlled speed. It runs at lower speeds under typical loads, making it suitable for office and professional environments.
What protection features does the power supply include?
The P750BS includes multiple protection circuits: Overvoltage Protection (OVP), Overcurrent Protection (OCP), Over-Power Protection (OPP), Short Circuit Protection (SCP), Under-Voltage Protection (UVP), and Over-Temperature Protection (OTP).
Can I use this power supply for a server environment?
The P750BS is designed for desktop systems and is suitable for small business servers and departmental deployments. For large-scale enterprise server infrastructure, consult with an IT specialist regarding redundancy and power requirements.
