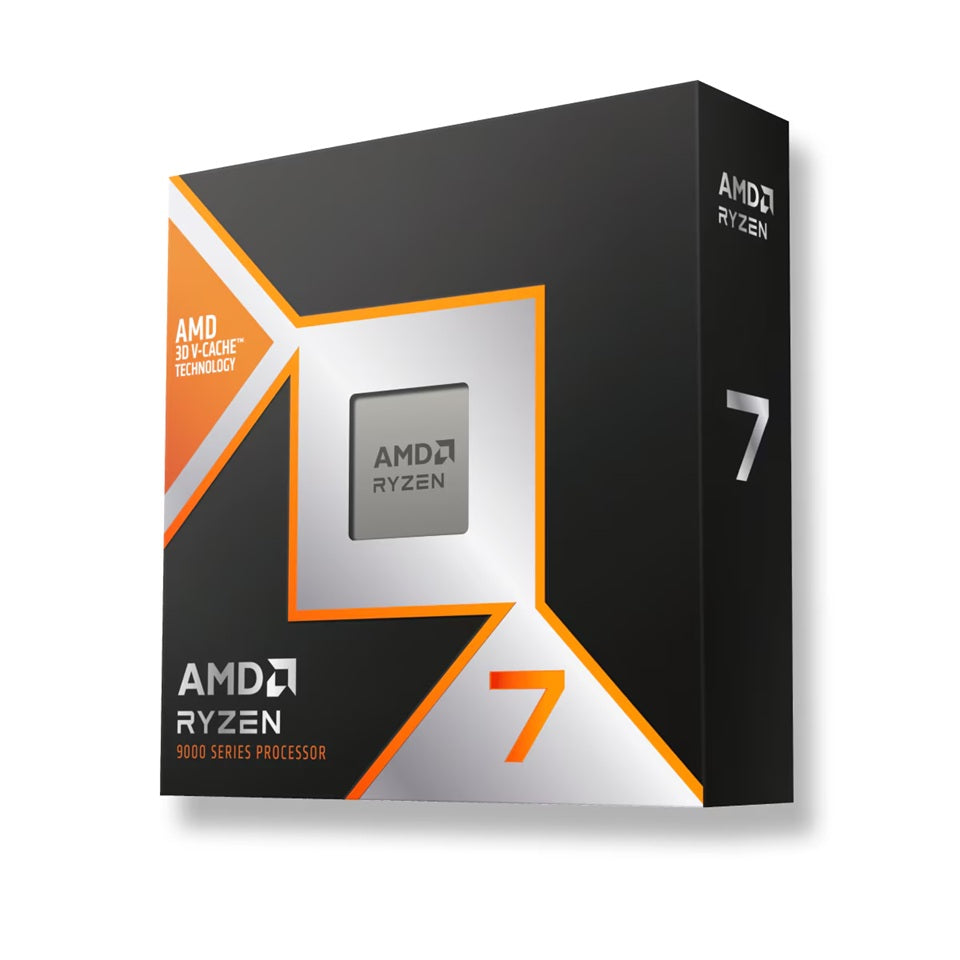

AMD Ryzen 7 9800X3D 8-Core Zen 5 Processor
AMD Ryzen 7 9800X3D 8-Core Zen 5 Processor
SKU:CPAR7-9800X3D
Couldn't load pickup availability
- See our return policy
- 36 months Manufacturer Warranty
Product Information
| Brand | AMD |
|---|---|
| Category | CPU |
| SKU | CPAR7-9800X3D |
| Availability | In Stock |
Overview
- The AMD Ryzen 7 9800X3D is a premium 8-core, 16-thread processor built on Zen 5 architecture, delivering exceptional performance for gaming and demanding professional workloads. The 2nd generation 3D V-Cache technology significantly reduces memory latency, enabling faster frame rates in gaming whilst maintaining excellent productivity performance.
With 96MB of L3 cache and a 5.2GHz boost clock, this processor excels in both single-threaded responsiveness and multi-threaded workload handling. The 120W TDP provides power efficiency relative to its performance tier, though AMD recommends liquid cooling for optimal thermal management and sustained performance.
Fully unlocked for overclocking, the 9800X3D supports advanced tuning features including Precision Boost Overdrive, Curve Optimizer voltage offsets, and AMD EXPO memory overclocking technology. It integrates Radeon Graphics with DisplayPort support for versatile display connectivity. Compatible with the latest AM5 socket platforms, including X870E, X870, and B850 chipsets, it supports up to 192GB DDR5 memory with ECC capability.
Specifications
| Processor Family | AMD Ryzen 9000 Series |
|---|---|
| Architecture | Zen 5 |
| CPU Cores | 8 |
| Threads | 16 |
| Base Clock | 4.7 GHz |
| Boost Clock | 5.2 GHz |
| L1 Cache | 640 KB |
| L2 Cache | 8 MB |
| L3 Cache | 96 MB |
| TDP | 120W |
| Manufacturing Process | TSMC 4nm FinFET (CPU cores), TSMC 6nm FinFET (I/O die) |
| Socket | AM5 |
| Compatible Chipsets | A620, X670E, X670, B650E, B650, X870E, X870, B840, B850 |
| Memory Support | DDR5 |
| Memory Channels | 2 |
| Maximum Memory | 192 GB |
| Memory Speed | DDR5-5600 (2x1R, 2x2R), DDR5-3600 (4x1R, 4x2R) |
| ECC Support | Yes (motherboard dependent) |
| PCIe Version | PCIe 5.0 |
| PCIe Lanes | 28 total, 24 usable |
| USB 3.2 Gen 2 Ports | 4 (10Gbps) |
| USB 2.0 Ports | 1 (480Mbps) |
| NVMe Support | Boot, RAID0, RAID1, RAID5, RAID10 |
| Integrated Graphics | AMD Radeon Graphics (2 cores, 2200 MHz) |
| Graphics Output | USB Type-C DisplayPort Alternate Mode |
| Unlocked for Overclocking | Yes |
| Boost Technology | Precision Boost 2, Precision Boost Overdrive |
| Overclocking Features | AMD EXPO memory overclocking, Curve Optimizer voltage offsets, AMD Ryzen Master support |
| Instruction Set Extensions | x86-64, AES, AMD-V, AVX, AVX2, AVX512, FMA3, MMX-plus, SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3 |
| Operating Temperature Range | Up to 95°C maximum |
| Thermal Solution | Not included (liquid cooling recommended) |
| Supported Operating Systems | Windows 11 64-Bit, Windows 10 64-Bit, RHEL x86 64-Bit, Ubuntu x86 64-Bit |
| Form Factor | Boxed Processor for Desktops |
| Market Segment | Enthusiast Desktop |
| Launch Date | 11 July 2024 |
| Warranty | 36 months |
Key Features
Ideal For
FAQs
Is the Ryzen 7 9800X3D cooler included?
No, the thermal solution is not included. AMD recommends a liquid cooler for optimal performance and thermal management due to the processor's high sustained performance capabilities.
What motherboards are compatible with the Ryzen 7 9800X3D?
The 9800X3D uses Socket AM5 and is compatible with X870E, X870, B850, B840, X670E, X670, B650E, B650, and A620 chipset motherboards. Newer X870/B850 platforms offer the latest features.
Does this processor support ECC memory?
Yes, the 9800X3D supports ECC memory, though ECC capability depends on motherboard support. Most modern AM5 boards support ECC.
What is 3D V-Cache technology and why does it matter?
2nd generation 3D V-Cache is an advanced caching technology that stacks additional cache die on the processor, significantly reducing memory latency. This delivers faster gaming performance and improved responsiveness in latency-sensitive applications.
Can the Ryzen 7 9800X3D be overclocked?
Yes, the processor is fully unlocked for overclocking. It supports Precision Boost Overdrive, Curve Optimizer voltage offsets, AMD EXPO memory overclocking, and AMD Ryzen Master software for advanced tuning.
What is the power consumption of this processor?
The Ryzen 7 9800X3D has a default TDP of 120W, offering efficient power consumption relative to its performance tier. Actual power draw under full load or overclocking may vary.
Does this processor have integrated graphics?
Yes, the 9800X3D includes AMD Radeon Graphics with 2 cores running at 2200 MHz. It supports USB Type-C DisplayPort Alternate Mode for flexible display connectivity.
What is the maximum memory capacity supported?
The processor supports up to 192GB of DDR5 memory across two memory channels. Maximum memory speed is DDR5-5600 in 2-channel configurations and DDR5-3600 in 4-channel configurations.
