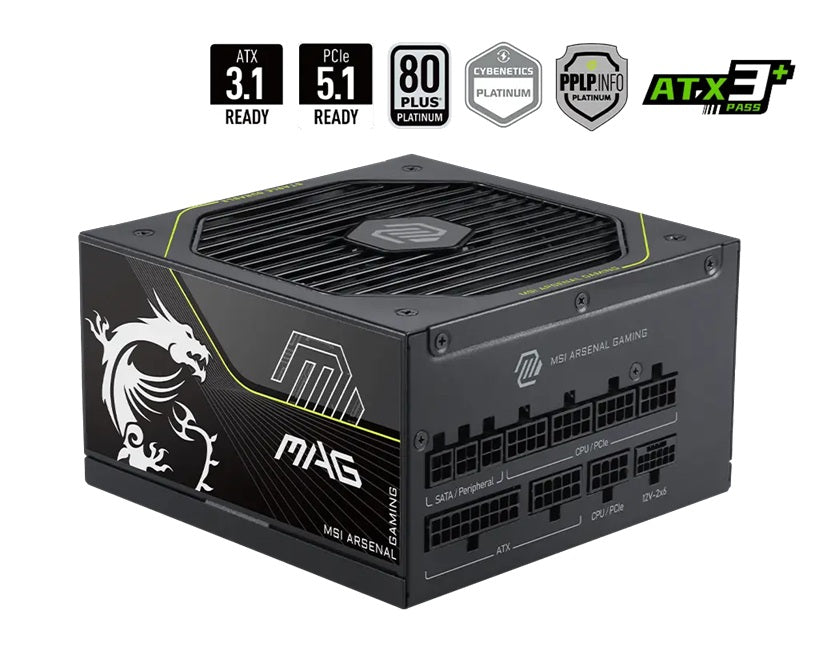

MSI MAG A1000PLS PCIE5 1000W Modular Power Supply
MSI MAG A1000PLS PCIE5 1000W Modular Power Supply
SKU:PSM-MAGA1000PLSPCIE5
Couldn't load pickup availability
- See our return policy
- 12 months Manufacturer Warranty
Product Information
| Brand | MSI |
|---|---|
| Category | Power Supplies |
| SKU | PSM-MAGA1000PLSPCIE5 |
| Availability | In Stock |
Overview
- The MSI MAG A1000PLS PCIE5 is a premium 1000W power supply engineered for next-generation high-performance systems. With native PCIe 5.1 connector support and RTX 50 series readiness, it provides the power delivery headroom required for the latest graphics cards and processors.
Designed with fully modular cabling, the PSU enables cleaner system builds and optimised airflow, reducing noise and improving cooling efficiency. The 135mm FDB bearing fan operates at low noise levels whilst maintaining reliable thermal management under sustained loads.
80 PLUS Platinum efficiency certification ensures minimal energy waste and lower operating costs over the product's lifetime. The unit is protected by comprehensive safety features including overvoltage, overcurrent, over-temperature, and short-circuit protection, making it suitable for both enthusiast and professional environments.
Specifications
| Power Output | 1000W |
|---|---|
| Efficiency Rating | 80 PLUS Platinum |
| Form Factor | ATX |
| Modular Type | Fully Modular |
| Dimensions (DxWxH) | 150 x 150 x 86 mm |
| Input Voltage Range | 100–240 VAC |
| Input Frequency Range | 50–60 Hz |
| PFC Type | Active PFC |
| Fan Size | 135mm |
| Fan Bearing Type | FDB (Fluid Dynamic Bearing) |
| Main Capacitor | 105°C |
| Motherboard Connector | 1 x 24-pin |
| CPU Connectors | 1 x 4+4 pin, 1 x 8 pin |
| PCIe 5 Connector | 1 x 12+4 pin (600W capacity) |
| PCIe Connectors | 4 x 6+2 pin |
| SATA Connectors | 6 x SATA |
| Peripheral Connectors | 3 x 4-pin |
| Protection Features | OVP, OCP, OTP, OPP, SCP, UVP, SIP, NLO |
| Warranty | 12 months |
Key Features
Ideal For
FAQs
Is the MSI MAG A1000PLS PCIE5 suitable for RTX 50 series graphics cards?
Yes. The PSU features native PCIe 5.1 support with a dedicated 12V-2x6 connector and 600W capacity on the PCIe 5 rail, specifically designed for RTX 50 series graphics cards and next-generation GPUs.
What does 80 PLUS Platinum certification mean?
80 PLUS Platinum means the power supply operates at 90% efficiency or higher across typical load ranges. This reduces energy waste, lowers electricity costs, and generates less heat compared to lower efficiency ratings.
Why is a fully modular power supply better than semi-modular?
Fully modular cables connect only when needed, enabling cleaner cable management, improved system airflow, easier maintenance, and reduced clutter inside the case—particularly beneficial for showcase or high-performance builds.
What does FDB bearing mean in the fan specification?
FDB (Fluid Dynamic Bearing) fans operate more quietly and have a longer lifespan than sleeve bearing fans. They provide smoother rotation with reduced friction and noise, ideal for systems requiring silent operation.
What are the main protection features included?
The PSU includes OVP (overvoltage), OCP (overcurrent), OTP (over-temperature), OPP (over-power), SCP (short-circuit), UVP (under-voltage), SIP (surge input), and NLO (no load operation) protection for comprehensive system safety.
Is this power supply suitable for workstations and professional use?
Yes. The 1000W capacity, 80 PLUS Platinum efficiency, industrial-level protection, and premium components make it suitable for both high-end gaming rigs and professional workstations, including content creation and AI computing systems.
What is the warranty period?
The MSI MAG A1000PLS PCIE5 includes a 12-month manufacturer's warranty covering defects in materials and workmanship.
