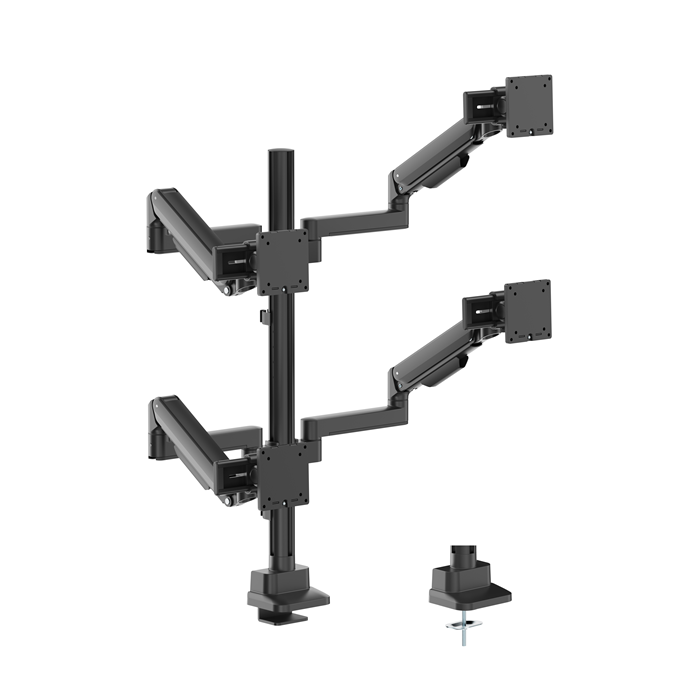

Brateck Modular Mechanical Spring Quad Monitor Arm
Brateck Modular Mechanical Spring Quad Monitor Arm
SKU:MABT-LDT86S-C048S-BLK
Couldn't load pickup availability
- See our return policy
- 12 months Manufacturer Warranty
Product Information
| Brand | Brateck |
|---|---|
| Category | Monitor Arms (VESA) |
| SKU | MABT-LDT86S-C048S-BLK |
| Availability | In Stock |
Overview
- The Brateck LDT86S-C048S is a premium mechanical spring quad monitor arm engineered for demanding multi-screen environments. Built with aluminium and steel construction, it accommodates four monitors ranging from 17 to 40 inches with exceptional stability and flexibility.
The one-way bearing tilting structure eliminates friction during adjustment, while quick-release VESA plates enable fast installation without tools. Universal sliders allow precise ergonomic positioning of each monitor, ensuring optimal viewing angles and reducing neck and eye strain across extended work sessions.
Installation is intuitive—the arm mounts entirely from above your desk surface using either clamp or grommet options, accommodating desktop thicknesses from 10 to 50mm. Built-in cable management routes cables neatly, maintaining a professional appearance while reducing clutter.
With a 12-month warranty, this modular system delivers the reliability and performance required by IT professionals, traders, designers, and organisations running intensive multi-display operations.
Specifications
| Brand | Brateck |
|---|---|
| Model | LDT86S-C048S |
| Product Type | Quad Mechanical Spring Monitor Arm |
| Material | Aluminium, steel, plastic |
| Surface Finish | Paint spraying |
| Available Colours | White, gloss grey, black |
| Monitor Compatibility | 4 monitors, 17–40 inch |
| Curved Monitor Support | Yes |
| VESA Patterns | 75×75, 100×100 |
| Weight Capacity per Screen | 2–11 kg (4.4–24.2 lbs) |
| Weight Capacity per Curved Screen | 2–10 kg (4.4–22 lbs) |
| Tilt Range | +75° to −45° |
| Swivel Range | +90° to −90° |
| Screen Rotation | +180° to −180° |
| Arm Full Extension | 611 mm (24.1 inches) |
| Pole Height | 900 mm (35.4 inches) |
| Overall Dimensions | 1378 × 136 × 1225 mm (54.3 × 5.4 × 48.2 inches) |
| Installation Methods | Clamp, grommet |
| Desktop Thickness | 10–50 mm (0.39–2 inches) for clamp and grommet |
| Quick-Release VESA Plate | Yes |
| Cable Management | Integrated |
| Warranty | 12 months |
Key Features
Ideal For
FAQs
What monitor sizes does the Brateck LDT86S-C048S support?
This quad monitor arm supports monitors from 17 to 40 inches, accommodating a wide range of display sizes. Each arm can hold screens with VESA patterns of 75×75 or 100×100.
How much weight can each monitor arm hold?
Each monitor arm supports up to 11 kg (24.2 lbs) for standard flat-screen monitors, or up to 10 kg (22 lbs) for curved monitors.
Can I use curved monitors with this arm?
Yes, the Brateck LDT86S-C048S supports curved monitors with a reduced weight capacity of up to 10 kg per screen.
How is the monitor arm installed?
The arm mounts entirely from the top of your desk using either a clamp or grommet mount. It accommodates desks 10–50 mm thick and requires no tools thanks to the quick-release VESA plates.
What adjustments can I make to each monitor?
Each monitor can be tilted (±75° to −45°), swivelled (±90°), rotated (180°), and adjusted vertically. Universal sliders allow precise spacing between monitors for optimal ergonomic positioning.
Does this arm include cable management?
Yes, the integrated cable management system routes and organises cables neatly, maintaining a tidy workspace.
What is the warranty period?
The Brateck LDT86S-C048S comes with a 12-month manufacturer's warranty.
What materials is this arm made from?
The arm is constructed from premium aluminium and steel with a plastic finish, providing durability and a professional appearance available in white, gloss grey, or black.
