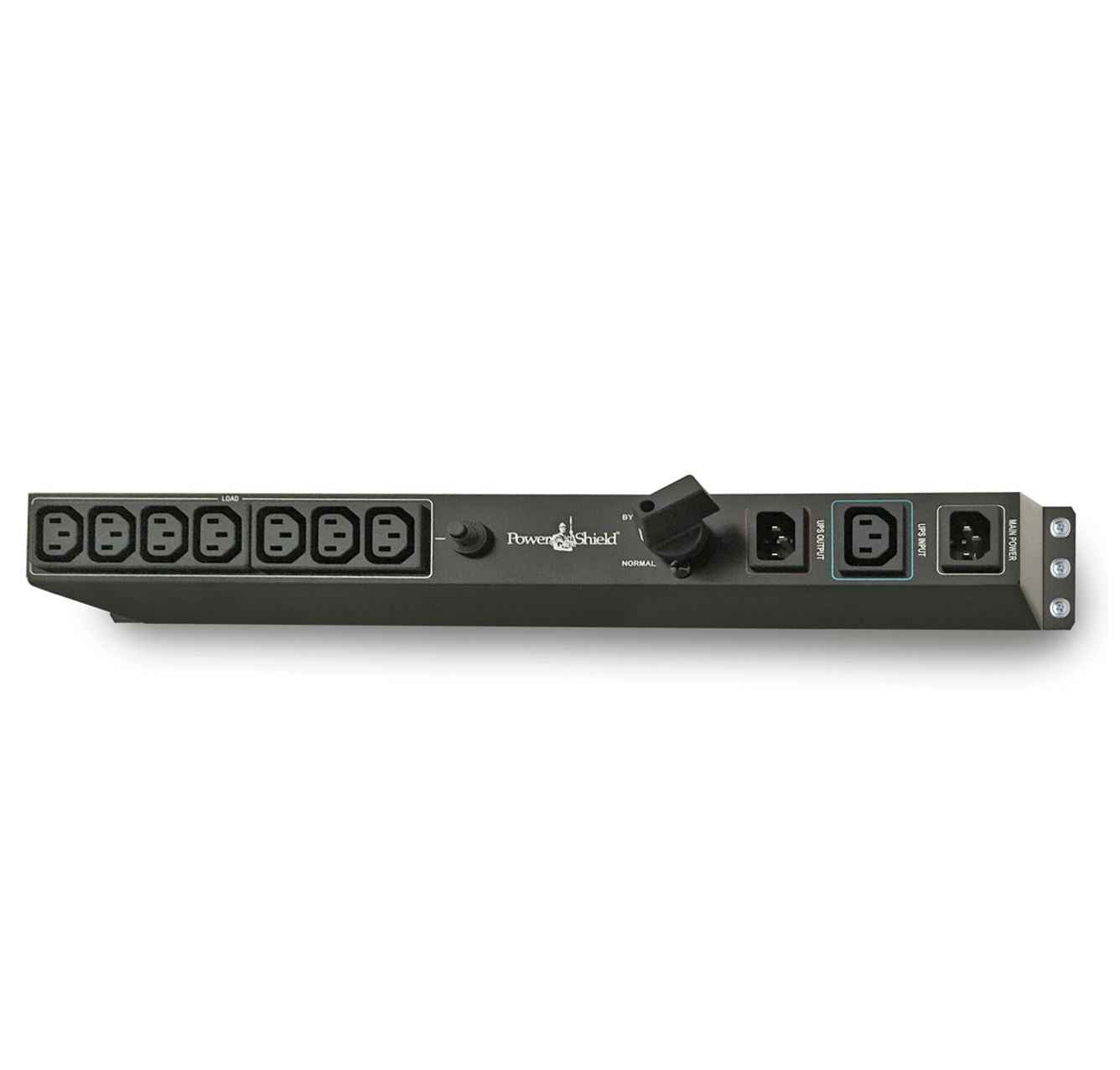

PowerShield MBS2K Rack Mount Bypass Switch with Hot Swap PDU
PowerShield MBS2K Rack Mount Bypass Switch with Hot Swap PDU
SKU:UPPS-PSMBS2K
Couldn't load pickup availability
- See our return policy
- 12 months Manufacturer Warranty
Product Information
| Brand | PowerShield |
|---|---|
| Category | UPS & Power Board |
| SKU | UPPS-PSMBS2K |
| Availability | In Stock |
Overview
- The PowerShield MBS2K is a rack mount bypass switch with integrated hot swap PDU designed to eliminate downtime during routine UPS maintenance. It provides seven outlets for power distribution and accepts a 10Amp input, making it suitable for 1–2kVA UPS systems. The unit mounts flexibly in standard server racks or on walls, horizontally or vertically, and integrates seamlessly with PowerShield Centurion RT and Commander RT UPS ranges.
Key benefits include the ability to perform maintenance at any time without interrupting connected equipment. The bypass switch topology supports all UPS modes—offline, line interactive, and true online double conversion—ensuring broad compatibility with existing infrastructure. The integrated PDU eliminates the need for separate power distribution hardware, streamlining rack layouts and reducing cable clutter.
Built for Australian business environments, the MBS2K provides a reliable solution for organisations that cannot tolerate downtime during system maintenance. Its compact 1U form factor fits standard server rack configurations, and the multiple mounting options provide flexibility in space-constrained installations.
Specifications
| Brand | PowerShield |
|---|---|
| Model | MBS2K |
| Product Type | Rack Mount Bypass Switch with Hot Swap PDU |
| UPS Capacity | 1–2kVA |
| Input Current | 10Amp |
| Number of Outlets | 7 |
| Form Factor | 1U |
| Mounting Options | Rackmount (horizontal or vertical) or wallmount (horizontal or vertical) |
| Compatible UPS Models | PowerShield Centurion RT and Commander RT ranges |
| Supported UPS Topologies | Offline, line interactive, and true online double conversion |
| Warranty | 12 months |
Key Features
Ideal For
FAQs
What does the bypass switch do?
The bypass switch allows you to disconnect the UPS from your connected equipment and switch to utility power (or vice versa) without interruption. This enables routine maintenance on the UPS without affecting powered devices.
Is the MBS2K compatible with all UPS systems?
The MBS2K is designed for PowerShield Centurion RT and Commander RT UPS ranges and is compatible with all UPS topologies including offline, line interactive, and true online systems within the supported power range.
How many devices can I connect to the MBS2K?
The MBS2K includes 7 outlets on the integrated PDU, allowing you to connect up to 7 devices or power distribution branches.
Can I mount the MBS2K horizontally and vertically?
Yes, the MBS2K can be mounted horizontally or vertically in a standard server rack, and also supports vertical or horizontal wallmount installation for flexible deployment.
What is the input current rating?
The MBS2K has a 10Amp input, suitable for 1–2kVA UPS systems.
Does the MBS2K come with a warranty?
Yes, the MBS2K includes a 12-month warranty covering manufacturing defects and component failure.
