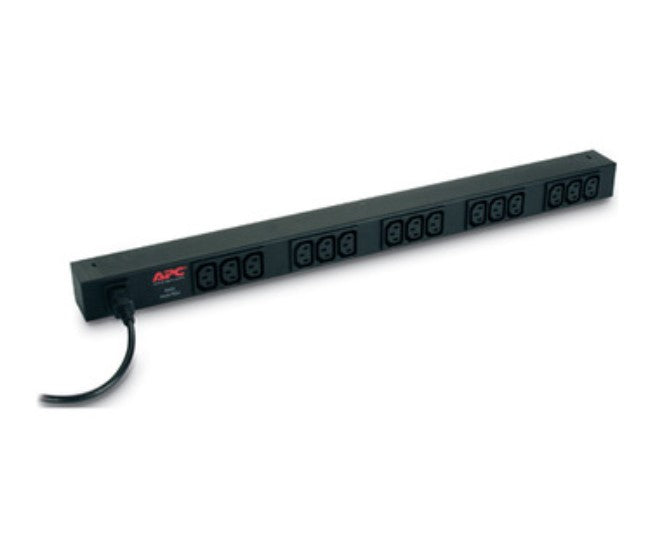

APC Rack PDU Basic Zero U10A 230V 15 C13
APC Rack PDU Basic Zero U10A 230V 15 C13
SKU:UPAPC-AP9568
The APC Rack PDU Basic Zero U10A is a compact power distribution unit designed for server racks and data centres. Featuring 15 IEC 320 C13 outlets, 10A maximum current capacity, and flexible voltage support (200–240VAC), it delivers efficient power management for IT professionals and facility managers.
Couldn't load pickup availability
- See our return policy
- 12 months Manufacturer Warranty
Product Information
| Brand | APC |
|---|---|
| Category | UPS & Power Board |
| SKU | UPAPC-AP9568 |
| Availability | Out of Stock |
Overview
- The APC Rack PDU Basic Zero U10A is a fundamental power distribution solution for server racks and IT infrastructure. With 15 IEC 320 C13 outlets and a 10A capacity, it provides straightforward power management without unnecessary complexity. The Zero U form factor ensures it occupies no vertical rack space, making it ideal for environments where rack density matters.
Designed for input voltages between 200 and 240VAC, this PDU accommodates standard Australian mains supply and supports both 50 and 60 Hz frequencies. The 1.98-metre power cord offers reasonable reach within typical data centre layouts. With a 2300VA load capacity and 10A maximum input current, it balances performance with safety for small to medium-scale equipment deployments.
This is a practical choice for IT teams seeking reliable outlet distribution without advanced monitoring or switching features. It integrates easily into existing rack infrastructure and provides the foundation for organised power management.
Specifications
| Brand | APC |
|---|---|
| Model | AP9568 |
| Product Type | Rack PDU Basic Zero U |
| Nominal Output Voltage | 208V, 230V |
| Maximum Total Current Draw | 10A |
| Output Connections | 15 × IEC 320 C13 |
| Nominal Input Voltage | 200V, 208V, 230V |
| Acceptable Input Voltage | 200–240VAC |
| Input Frequency | 50/60 Hz |
| Input Connections | IEC-320 C14 |
| Power Cord Length | 1.98 metres |
| Number of Power Cords | 1 |
| Load Capacity | 2300VA |
| Maximum Input Current | 10A |
| Form Factor | Zero U |
| Warranty | 12 months |
Key Features
Ideal For
FAQs
What is a Zero U rack PDU and why does it matter?
A Zero U PDU occupies no vertical space in your rack, allowing you to use all available U-height for servers and equipment. The APC AP9568 mounts horizontally, maximising rack density in data centres and server rooms.
Can this PDU work with standard Australian power outlets?
Yes. The APC AP9568 accepts input voltages from 200–240VAC and operates at both 50 and 60 Hz, making it fully compatible with Australian mains supply.
How many devices can I connect to this PDU?
The PDU has 15 IEC 320 C13 outlets. However, the total load must not exceed 10A (2300VA). The number of devices you can safely connect depends on the power consumption of each device.
What is the difference between C13 and other IEC outlet types?
C13 is the standard outlet type for most servers, monitors, and IT equipment. It mates with a C12 plug. This PDU does not have switched outlets or metering—it provides basic, always-on power distribution.
Is this PDU suitable for use with a UPS system?
Yes. The APC AP9568 can be connected downstream of a UPS to distribute backup power to multiple devices. However, the total load must stay within the PDU's 10A and 2300VA limits.
What warranty and support does APC provide?
The APC AP9568 includes a 12-month manufacturer warranty covering defects in materials and workmanship. Support terms vary by region; contact Hyetech Australia for local support options.
Can I daisy-chain multiple PDUs together?
No. The APC AP9568 has a single input cord and is not designed for daisy-chaining. Each PDU requires its own dedicated power source.
