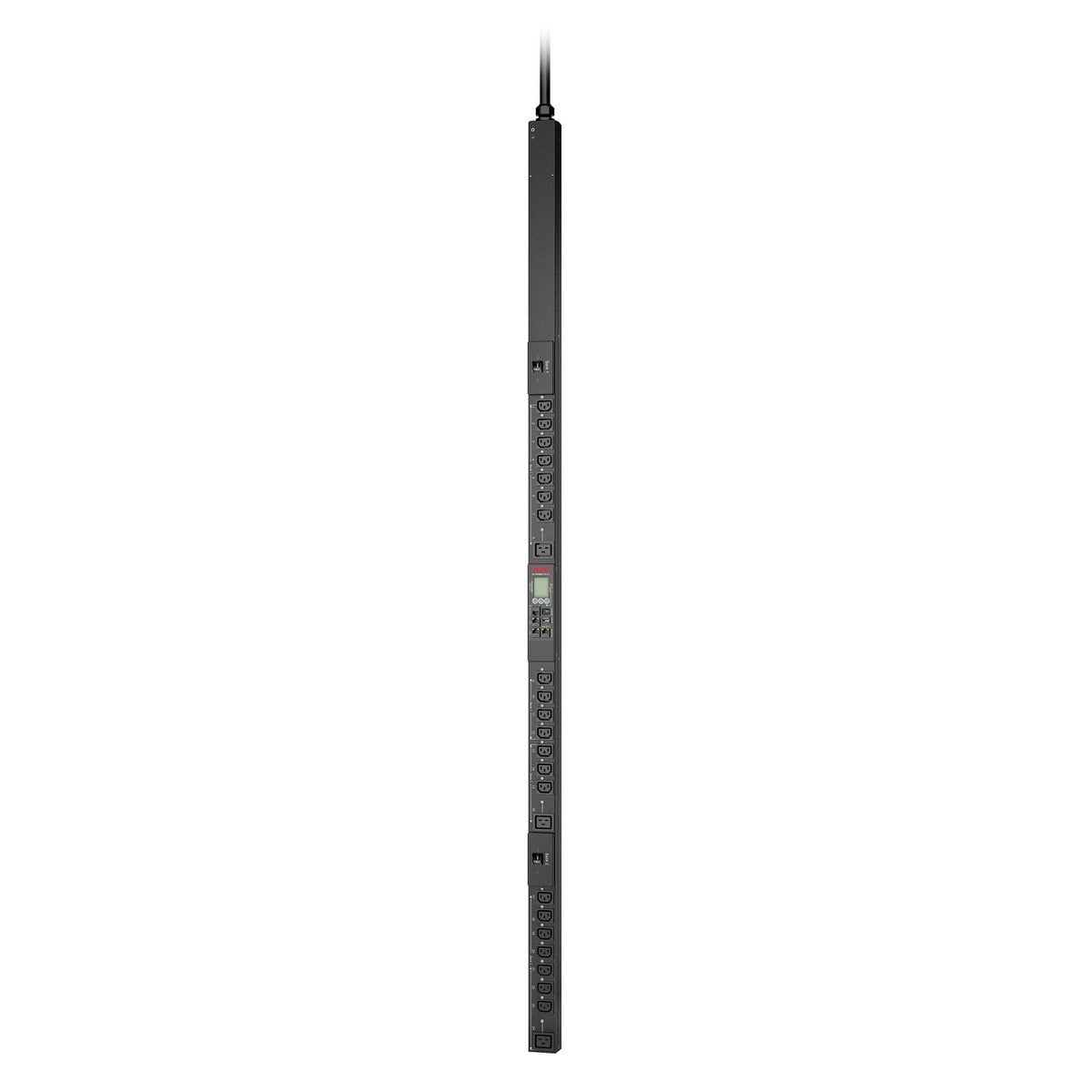

APC Rack PDU 9000 Switched 32A 230V ZeroU
APC Rack PDU 9000 Switched 32A 230V ZeroU
SKU:UPAPC-APDU9953
The APC Rack PDU 9000 Switched is a zero-space rack power distribution unit designed for data centre and server room environments. Featuring 24 outlets (21 C13 and 3 C19), switched outlet control, and SNMP/Redfish management, it delivers reliable power distribution and remote monitoring for IT infrastructure.
Couldn't load pickup availability
- See our return policy
- 36 months Manufacturer Warranty
Product Information
| Brand | APC |
|---|---|
| Category | Data Racks & Accessories |
| SKU | UPAPC-APDU9953 |
| Availability | Out of Stock |
Overview
- The APC Rack PDU 9000 Switched is a professional-grade power distribution unit designed for mission-critical data centre and server room applications. Its ZeroU form factor allows installation above or below existing rack equipment without consuming valuable rack space, making it ideal for space-constrained environments.
With 24 individually switchable outlets—comprising 21 C13 and 3 C19 connectors—the PDU accommodates a wide range of equipment from standard servers to high-power devices. The 32A 230V input and 7400 VA load capacity provide substantial power handling for medium to large rack deployments.
Network management is seamless through SNMP and Redfish protocol support, enabling remote power cycling, outlet monitoring, and integration with existing data centre management systems via 10/100/1000BASE-T connectivity. The unit operates reliably across a wide temperature and humidity range, with support for 50/60 Hz mains frequencies suitable for global data centre standards.
Included installation brackets and comprehensive documentation simplify deployment, whilst the 36-month warranty provides long-term peace of mind for critical infrastructure investments.
Specifications
| Colour | Black |
|---|---|
| PDU Type | Switched |
| Rack Units | 0U (ZeroU) |
| Total Outlets | 24 (21 × C13, 3 × C19) |
| Input Voltage Range | 200–240V |
| Rated Input Current | 32A |
| Load Capacity | 7400 VA |
| Network Frequency | 50/60 Hz |
| Mounting Position | Vertical |
| Cord Length | 3.05 m |
| Input Cables | 1 |
| Communication Protocols | SNMP, Redfish |
| Network Interface | 10/100/1000BASE-T |
| Operating Temperature | −5 to +60 °C |
| Operating Humidity | 5–95% (non-condensing) |
| Operating Altitude | 0–10,000 ft |
| Storage Temperature | −25 to +65 °C |
| Storage Humidity | 5–95% (non-condensing) |
| Storage Altitude | 0–15,240 m |
| Included Accessories | Installation guide, mounting brackets, safety guide |
| Warranty | 36 months |
Key Features
Ideal For
FAQs
What does ZeroU mean, and why is it important?
ZeroU means the PDU consumes zero rack units of space. It mounts vertically above or below existing rack equipment, maximising usable rack space for servers and other infrastructure without requiring dedicated rack height.
Can I remotely control individual outlets?
Yes. The APC Rack PDU 9000 Switched supports SNMP and Redfish protocols, allowing remote power cycling and monitoring of individual outlets via network management systems and IPMI-compatible tools.
What is the maximum load capacity?
The PDU has a maximum load capacity of 7400 VA at 32A input current on 230V mains. Always verify connected equipment power consumption does not exceed this limit.
Is this PDU suitable for 415V three-phase systems?
No. This PDU is designed for single-phase 200–240V input. For three-phase or higher voltage requirements, consult the APC product range for suitable alternatives.
What network protocols does this PDU support?
The PDU supports SNMP (Simple Network Management Protocol) and Redfish protocol over 10/100/1000BASE-T Ethernet, enabling integration with enterprise data centre management platforms.
What is included in the box?
The package includes the PDU unit, installation guide, rack mounting brackets, and safety guide. A 3.05 m power cord is also provided.
What is the warranty period?
The APC Rack PDU 9000 Switched comes with a 36-month manufacturer warranty covering defects in materials and workmanship.
Can this PDU work in hot or cold environments?
Yes. The PDU operates reliably in ambient temperatures from −5 to +60 °C and can be stored in temperatures from −25 to +65 °C, making it suitable for various data centre climates.
