APC NetShelter Rack PDU Advanced Gen 2, 48 Outlet, Metered 3Phase
APC NetShelter Rack PDU Advanced Gen 2, 48 Outlet, Metered 3Phase
SKU:UPA-APDU11350ME

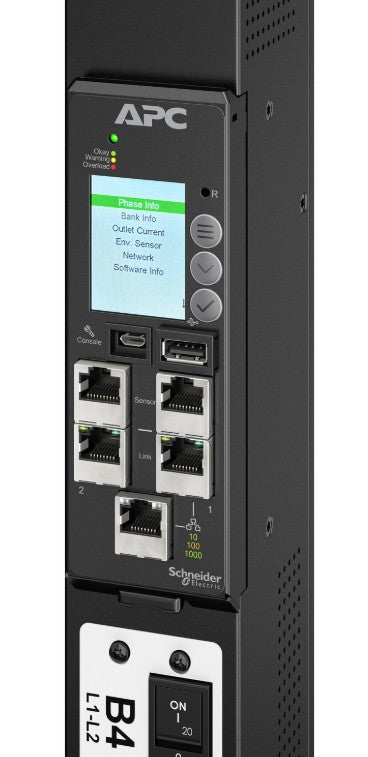

The APC NetShelter Rack PDU Advanced Gen 2 is a metered three-phase power distribution unit designed for high-density server and network racks. Featuring 48 combination outlets, precise power metering, and advanced monitoring capabilities, it delivers reliable power management and visibility for data centre operations.
Couldn't load pickup availability
- See our return policy
- 36 months Manufacturer Warranty
Product Information
| Brand | APC |
|---|---|
| Category | Data Racks & Accessories |
| SKU | UPA-APDU11350ME |
| Availability | Out of Stock |
Overview
- The APC NetShelter Rack PDU Advanced Gen 2 is a three-phase metered power distribution unit engineered for enterprise data centres. With 48 outlets in a compact 0U form factor, it maximises equipment density while maintaining reliable power delivery to critical infrastructure.
The PDU provides real-time power metering at 1% accuracy, enabling data centre managers to monitor power consumption, prevent overloads, and optimise resource utilisation. The combination outlet design (C13/C15/C19/C21 and C13/C15) supports diverse equipment types without requiring adapters, reducing deployment complexity and improving operational flexibility.
Advanced management capabilities include an NMC3 network management card accessible via web interface, SNMP, and command line, integrated with EcoStruxure IT for centralised monitoring. The cascade feature allows connection of up to 32 PDUs with network port sharing, making it ideal for large-scale deployments. Two environmental sensor ports enable optional monitoring of rack temperature and humidity.
With certifications including UL, CE, CSA, and RCM, and operation reliability up to 60°C, this PDU is built for demanding data centre environments across multiple regions.
Specifications
| Brand | APC |
|---|---|
| Model | APDU11350ME (NetShelter 530P6) |
| Product Type | Metered Rack PDU |
| Input Voltage | 400V or 415V, 3-phase |
| Input Current Rating | 32A at 400V or 30A at 415V |
| Maximum Power Output | 22.1kW at 400V or 17.3kW at 415V |
| Load Capacity | 17300 VA |
| Output Voltage | 240V |
| Outlet Quantity | 48 outlets total |
| Outlet Configuration | 24× C13/C15/C19/C21 combination outlets and 24× C13/C15 outlets |
| Input Plug Type | IEC 60309 30A 3P+N+PE |
| Cord Length | 3 metres |
| Form Factor | 0U rack-mounted |
| Height | 1780 mm |
| Width | 56 mm |
| Depth | 75 mm |
| Net Weight | 8.4 kg |
| Colour | Black |
| Mounting Mode | Vertical rack-mounted |
| Network Interface | One 1 Gigabit Ethernet port (10/100/1000BASE-T) |
| Cascade Capability | Up to 32 PDUs with network port sharing |
| Power Metering Accuracy | 1% |
| Environmental Sensor Ports | 2 ports for optional sensors |
| IP Protection Rating | IP44 |
| Operating Temperature Range | -5°C to 60°C |
| Operating Humidity Range | 5% to 95% |
| Storage Temperature Range | -25°C to 65°C |
| Storage Humidity Range | 5% to 95% |
| Operating Altitude | 0 to 10,000 feet |
| Storage Altitude | 0 to 15,240 metres |
| Network Frequency | 50/60 Hz |
| Management Interface | Web, SNMP, CLI via NMC3 |
| NMC3 Feature | Live swap capability |
| Certifications | UL, CE, CSA, UKCA, Nemiko, PSE, KC, China RoHS, RCM, CMIM |
| Warranty | 36 months |
| Package Dimensions | 198cm H × 13.2cm W × 26.2cm L |
| Packaged Weight | 11.4 kg |
Key Features
Ideal For
FAQs
What is the difference between the 400V and 415V input specifications?
The PDU supports both 400V at 32A (delivering 22.1kW) and 415V at 30A (delivering 17.3kW). Selection depends on your regional power supply standard. 400V is common in European installations, while 415V is used in regions like Australia and the UK.
Can I cascade multiple NetShelter PDUs together?
Yes. The PDU supports cascading of up to 32 units using the two link ports and network port sharing (NPS) feature, enabling coordinated power management and monitoring across multiple PDUs in large deployments.
What are the combination outlets and how do they work?
The 24 combination outlets can be configured as C13, C19, C15, or C21 connectors, allowing flexibility for different equipment types without requiring adapters. The remaining 24 outlets are standard C13/C15 configuration.
How does power metering work, and what accuracy can I expect?
The metered PDU provides outlet-level power consumption visibility with 1% metering accuracy, enabling precise tracking of power usage for billing, capacity planning, and overload prevention. Data is accessible via web interface, SNMP, or CLI.
What is the NMC3 and can it be replaced without downtime?
The NMC3 is the network management card providing web, SNMP, and CLI access. It features live swap capability, allowing replacement without shutting down the PDU, minimising operational downtime.
Can I monitor temperature and humidity in my rack?
Yes. The PDU includes two environmental sensor ports for optional temperature and humidity sensors (sold separately), enabling monitoring of rack conditions alongside power management.
What certifications does this PDU hold?
The PDU meets international standards including UL, CE, CSA, UKCA, PSE, KC, China RoHS, RCM, and CMIM, making it suitable for multi-region data centre deployments.
Is the PDU suitable for high-density server environments?
Yes. The compact 0U form factor (just 56mm wide) with 48 outlets maximises outlet density in high-density racks, and reliable operation up to 60°C ensures performance in demanding environments.
