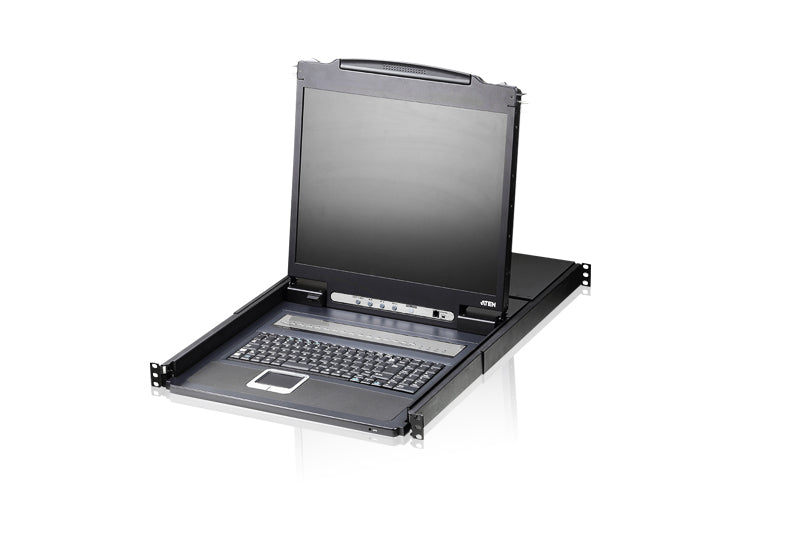

Aten CL1308N 8-Port Rackmount KVM Switch with 19" LCD
Aten CL1308N 8-Port Rackmount KVM Switch with 19" LCD
SKU:KVA-CL-1308N
Couldn't load pickup availability
- See our return policy
- 24 months Manufacturer Warranty
Product Information
| Brand | Aten |
|---|---|
| Category | KVM Switch & Video |
| SKU | KVA-CL-1308N |
| Availability | Out of Stock |
Overview
- The Aten CL1308N is a purpose-built rackmount KVM switch that brings server management efficiency to space-constrained environments. By integrating an LCD panel, full keyboard, and touchpad into a compact 1U housing, it eliminates the need for multiple monitors and peripherals while delivering centralised control over multiple computers.
Designed for network administrators managing complex server infrastructures, the CL1308N supports both USB and PS/2 connections, making it compatible with a wide range of peripherals and legacy equipment. The integrated 19" LCD display and sliding mechanism provide ergonomic access without consuming additional rack space.
With no software installation required, the switch operates immediately upon connection. Switching between computers is intuitive—use front panel buttons, keyboard hotkeys, or the multilingual on-screen display menu. For growing environments, the cascadable architecture allows connection of up to 8 additional switches, enabling management of up to 256 computers from a single console.
The CL1308N delivers the space efficiency and operational reliability that modern data centres demand, while maintaining straightforward deployment and maintenance.
Specifications
| Brand | Aten |
|---|---|
| Model | CL1308N |
| Product Type | Rackmount KVM Switch |
| Number of Ports | 8 |
| Video Interface | VGA |
| Keyboard/Mouse Interface | USB and PS/2 |
| Display Type | Integrated LCD Panel |
| Display Size | 19 inches |
| Display Resolution | 1280x1024 at 75Hz |
| Rack Mounting | 1U sliding design |
| Maximum Direct Computer Connections | 16 |
| Maximum with Cascading | 256 |
| Cascadable Switches | Up to 8 additional switches |
| Switching Methods | Front panel LEDs, hotkey combinations, on-screen display menu |
| LED Illumination | Yes |
| Software Configuration Required | No |
| Keyboard Input Interception | Direct hardware-level |
| Included Accessories | 2x custom KVM cables |
| Warranty | 24 months |
Key Features
Ideal For
FAQs
How many computers can the Aten CL1308N control?
The CL1308N directly supports up to 16 computers. By cascading up to 8 additional switches, you can control up to 256 computers total from a single console.
Does the CL1308N require software installation?
No. The switch intercepts keyboard input directly at the hardware level, eliminating the need for any software configuration. It works immediately upon connection.
What keyboard and mouse connections does it support?
The CL1308N supports both USB and PS/2 connections for keyboards and mice, providing compatibility with modern and legacy peripherals.
How much rack space does the CL1308N consume?
The CL1308N is a 1U rackmount device with a sliding housing design, making it extremely space-efficient for dense server room environments.
Can I switch between computers using different methods?
Yes. You can switch between computers using front panel push button port LEDs, keyboard hotkey combinations, or the multilingual on-screen display menu system.
What is the display resolution of the integrated LCD panel?
The integrated 19" LCD panel displays at 1280x1024 resolution at 75Hz refresh rate, providing clear visibility for server management tasks.
What cables are included with the CL1308N?
The switch includes 2x custom KVM cables for immediate deployment. Additional cables may be required depending on your server configuration.
