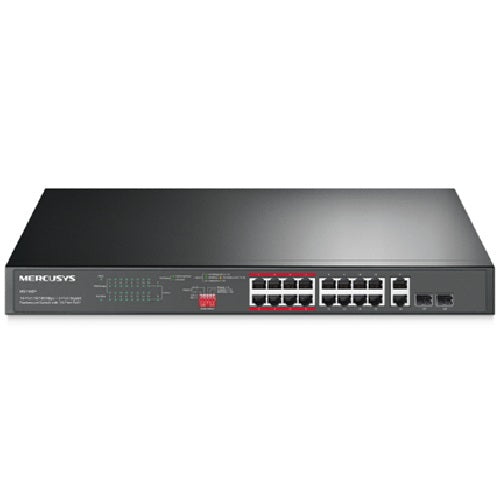

Mercusys MS118CP 16-Port PoE+ Rackmount Switch
Mercusys MS118CP 16-Port PoE+ Rackmount Switch
SKU:NWMS-MS118CP
The Mercusys MS118CP is a 16-port PoE+ rackmount switch designed for surveillance and networked device deployment. Featuring 30W per-port PoE power, extended range transmission up to 250m, and intelligent traffic isolation, it delivers reliable power and connectivity for IP cameras and IoT infrastructure.
Couldn't load pickup availability
- See our return policy
- 5 years Manufacturer Warranty
Product Information
| Brand | TP-LINK |
|---|---|
| Category | Network - Consumer |
| SKU | NWMS-MS118CP |
| Availability | In Stock |
Overview
- The Mercusys MS118CP is a 16-port PoE+ managed rackmount switch purpose-built for surveillance and distributed networked device environments. With 30W per-port power delivery and 190W total PoE budget, it supports modern high-power IP cameras and IoT endpoints without requiring separate power infrastructure. The extended transmission range mode reaches up to 250m, making it ideal for large campuses, outdoor installations, and facilities where cable runs are substantial.
Intelligent traffic management features including Priority Mode and Isolation Mode ensure video streams remain stable while maintaining network security through client traffic separation. The PoE Auto Recovery function automatically detects and reboots unresponsive devices, reducing downtime and support calls. Designed for plug-and-play deployment in professional environments, the MS118CP requires no complex configuration and mounts seamlessly into standard server racks.
Specifications
| Product Type | Managed Rackmount Network Switch |
|---|---|
| Ports | 16× 10/100 Mbps PoE+ RJ45, 2× Gigabit RJ45, 2× combo Gigabit SFP |
| PoE Power Budget | 190W total, 30W maximum per port |
| Data Transmission Range | Up to 250m in extend mode |
| Maximum Power Consumption | Not specified |
| Form Factor | Rackmount |
| Management Features | Priority Mode (ports 1–8), Isolation Mode, PoE Auto Recovery |
| Warranty | 5 years |
Key Features
Ideal For
FAQs
What is the maximum power output per PoE port?
Each PoE+ port delivers up to 30W of power, with a total PoE budget of 190W across all 16 ports. This supports modern high-power IP cameras and networked devices.
Can this switch extend power and data transmission beyond standard distances?
Yes. The MS118CP's extend mode supports data and power transmission up to 250m, specifically designed for large surveillance systems and distributed installations.
What is Isolation Mode and why is it useful?
Isolation Mode allows one-click client traffic separation, preventing devices on one port from communicating with devices on another. This improves security and prevents bandwidth contention between critical systems.
Does the switch require complex configuration?
No. The MS118CP is designed for easy deployment with no configuration required. It operates out of the box, making it ideal for rapid installations.
What happens if a PoE device stops responding?
The PoE Auto Recovery feature automatically detects unresponsive devices and reboots them, ensuring continuous operation without manual intervention.
What uplink options are available for connecting to the core network?
The switch includes 2× Gigabit RJ45 ports and 2× combo Gigabit SFP slots, providing flexible high-speed uplink options for redundancy and scalability.
