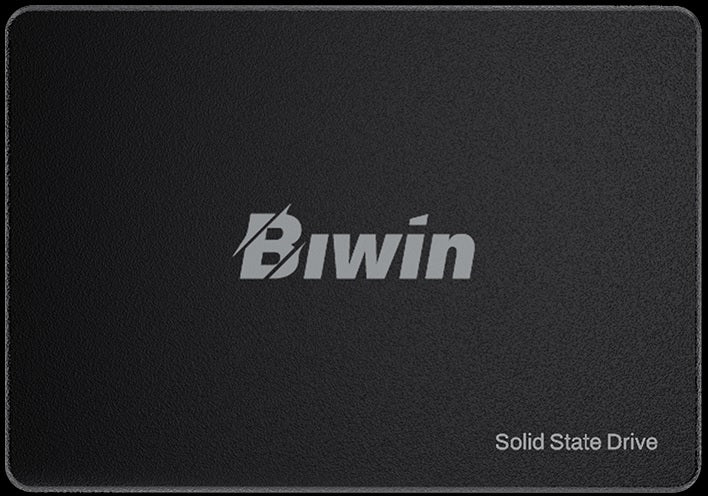

BIWIN M100 512GB 2.5" SATA SSD
BIWIN M100 512GB 2.5" SATA SSD
SKU:BIW-M100-512G
Couldn't load pickup availability
- See our return policy
- 3 years with endurance rating of 320 TBW (512GB variant) Manufacturer Warranty
Product Information
| Brand | BIWIN |
|---|---|
| Category | Hard Disk Drives - SSD |
| SKU | BIW-M100-512G |
| Availability | In Stock |
Overview
- The BIWIN M100 is a 2.5" SATA SSD designed as a reliable, budget-friendly storage solution for businesses upgrading from mechanical drives. Available in capacities from 128GB to 2TB, it delivers sequential read speeds up to 550MB/s and write speeds up to 500MB/s, providing meaningful performance gains over traditional hard drives.
The DRAM-less architecture keeps costs down while maintaining responsive performance for everyday computing tasks, including document handling, email, web browsing, and standard business applications. With a 1.5 million hour MTBF rating and comprehensive international certifications (RoHS, FCC, CE, CB, KCC, BSMI, VCCI, RCM, UKCA), the M100 offers dependable operation in Australian business environments.
Backed by a 3-year warranty with capacity-based endurance guarantees, the M100 is well-suited to IT managers and procurement teams seeking solid-state reliability without premium pricing. Its standard 2.5" form factor ensures compatibility with virtually all existing business desktops and laptops.
Specifications
| Brand | BIWIN |
|---|---|
| Model | M100 |
| Product Type | 2.5" SATA SSD |
| Form Factor | 2.5 inch |
| Interface | SATA III |
| Capacity (512GB variant) | 512GB |
| Available Capacities | 128GB, 256GB, 512GB, 1TB, 2TB |
| Sequential Read Speed (512GB) | Up to 550MB/s |
| Sequential Write Speed (512GB) | Up to 500MB/s |
| Random Read 4K (512GB) | Up to 60K IOPS |
| Random Write 4K (512GB) | Up to 70K IOPS |
| DRAM Cache | DRAM-less |
| Dimensions | 100.00 x 77.00 x 6.70 mm |
| Weight | Less than 50g |
| Operating Temperature | 0°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| MTBF | 1,500,000 hours |
| Warranty | 3 years with endurance rating of 320 TBW (512GB variant) |
| Certifications | RoHS, FCC, CE, CB, KCC, BSMI, VCCI, RCM, UKCA |
Key Features
Ideal For
FAQs
Is the BIWIN M100 compatible with my existing laptop or desktop?
Yes. The M100 uses a standard 2.5" SATA III interface, making it compatible with virtually all business laptops and desktops manufactured in the last 10+ years. If your system currently has a 2.5" hard drive, the M100 will fit directly as a replacement.
What does DRAM-less mean, and does it affect performance?
DRAM-less means the drive uses only NAND flash memory for caching instead of a separate DRAM chip. For typical business workloads like document editing, email, and web browsing, this has minimal impact on real-world performance while keeping costs lower than DRAM-equipped alternatives.
How long is the warranty, and what does it cover?
The M100 includes a 3-year manufacturer warranty. The 512GB variant covers up to 320TB of written data (TBW) over that period. Warranty covers defects in materials and workmanship under normal operating conditions.
What performance improvement can I expect versus a mechanical hard drive?
The M100 offers dramatically faster boot times, application loading, and file transfers. Read speeds of up to 550MB/s versus typical mechanical drives at 100-150MB/s, plus much lower power consumption and no moving parts means greater reliability.
What capacities are available?
The BIWIN M100 is available in 128GB, 256GB, 512GB, 1TB, and 2TB capacities, allowing you to choose the right size for your workload and budget.
Is the M100 suitable for servers or high-demand applications?
The M100 is designed for general business desktop and laptop use. For server environments or workloads requiring higher endurance ratings and performance, consider enterprise-class SSDs with higher TBW ratings.
What international standards and certifications does it meet?
The M100 is certified to RoHS, FCC, CE, CB, KCC, BSMI, VCCI, RCM, and UKCA standards, ensuring compliance with environmental and safety regulations across Australia and international markets.
