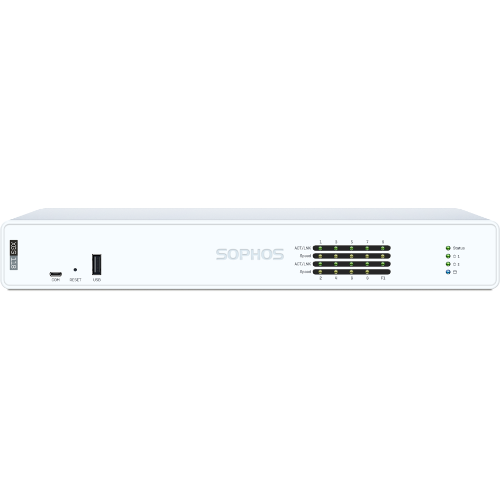

Sophos XGS 118 Security Firewall Appliance
Sophos XGS 118 Security Firewall Appliance
SKU:NSO-XG118Z00ZZPCAU
The Sophos XGS 118 is a high-performance desktop security firewall designed for small to mid-sized businesses. Featuring 15.5 Gbps firewall throughput, 6×2.5GbE connectivity, and optional 5G expansion, it delivers enterprise-grade protection with whisper-quiet operation for noise-sensitive environments.
Couldn't load pickup availability
- See our return policy
- 12 months Manufacturer Warranty
Product Information
| Brand | Sophos |
|---|---|
| Category | Network - Security UTM |
| SKU | NSO-XG118Z00ZZPCAU |
| Availability | In Stock |
Overview
- The Sophos XGS 118 is a second-generation desktop security firewall appliance engineered to deliver exceptional performance without the operational overhead. With 15.5 Gbps firewall throughput and 13 Gbps IPsec VPN capability, it handles demanding business traffic while maintaining comprehensive threat protection across IPS, TLS inspection, and next-generation firewall services.
Designed specifically for noise-sensitive environments, the XGS 118 operates at whisper-quiet levels—a key advantage for healthcare clinics, educational institutions, and retail locations where fan noise can disrupt operations. The device features six 2.5GbE copper ports plus one SFP fibre interface, ensuring modern network infrastructure can flow freely without bottlenecks between firewall, switches, and Wi-Fi 6 access points.
The expansion bay unlocks additional flexibility: add a 5G module for redundant cellular connectivity or cost-effective fixed wireless access (FWA), transforming the appliance into a future-ready security platform. For critical deployments, optional secondary power supply support enables high-availability configurations. All this performance comes in a compact desktop form factor, making the XGS 118 ideal for organisations seeking enterprise protection without data centre footprint.
Specifications
| Firewall Throughput | 15,500 Mbps |
|---|---|
| Threat Protection Throughput | 3,250 Mbps |
| NGFW Throughput | 3,950 Mbps |
| IPS Throughput | 3,500 Mbps |
| IPsec VPN Throughput | 13,000 Mbps |
| TLS Inspection Throughput | 1,100 Mbps |
| Firewall IMIX Throughput | 11,000 Mbps |
| Ethernet Interfaces | 9 × 2.5 GbE copper |
| Fibre Interfaces | 1 × SFP |
| Management Interfaces | 1 × COM RJ45, 1 × Micro-USB |
| USB Ports | 1 × USB 2.0 (front), 1 × USB 3.0 (rear) |
| Expansion Slots | 1 |
| Optional Modules | 5G module (Gen.2), SFP transceivers |
| Redundancy | Optional secondary power supply |
| Form Factor | Desktop |
| Warranty | 12 months |
Key Features
Ideal For
FAQs
What is the difference between firewall throughput and threat protection throughput?
Firewall throughput (15.5 Gbps) measures the maximum data rate the appliance can process for basic packet forwarding. Threat protection throughput (3.25 Gbps) is the speed at which it can inspect and filter traffic while running advanced security services like IPS and threat prevention. For maximum security, traffic is limited to 3.25 Gbps; basic routing without inspection reaches full firewall throughput.
Can the XGS 118 handle 2.5 GbE networks?
Yes. The XGS 118 features six 2.5GbE copper ports plus one SFP fibre interface, designed to work seamlessly with 2.5GbE switches and Wi-Fi 6 access points without creating bottlenecks.
What is the optional 5G module and when would we need it?
The optional 5G module (Gen.2) plugs into the expansion bay and provides either redundant cellular connectivity for WAN failover or cost-effective fixed wireless access (FWA) as a primary internet connection. It's ideal for remote locations, branch offices, or organisations requiring backup connectivity.
Is the XGS 118 suitable for noise-sensitive environments?
Yes. The XGS 118 is specifically designed with whisper-quiet operation, making it suitable for healthcare facilities, schools, libraries, and retail locations where fan noise can disrupt operations or patient care.
Can the XGS 118 support redundant power supplies?
Yes. An optional secondary power supply is available, allowing the appliance to operate with dual power inputs for high-availability deployments requiring uninterrupted operation.
What VPN performance can we expect?
The XGS 118 delivers 13 Gbps IPsec VPN throughput, supporting high-speed secure connections for remote offices and mobile users without compromising performance.
What management interfaces are available?
The appliance includes one COM RJ45 port and one Micro-USB port for serial management, plus USB 2.0 (front) and USB 3.0 (rear) ports for additional connectivity and configuration.
