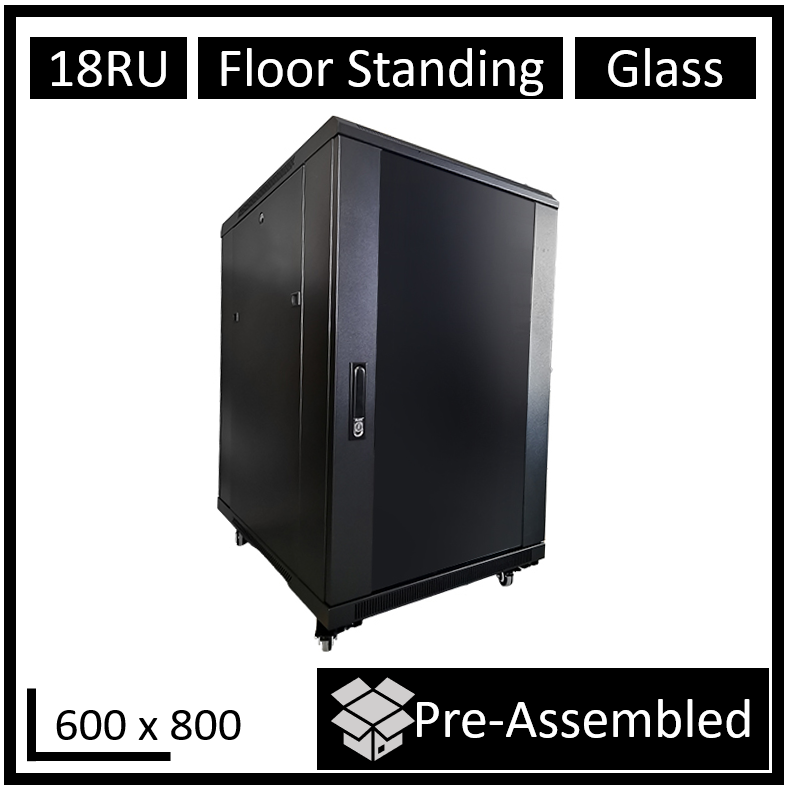

LDR RCLDR-FS800-18U-A 18U Server Rack Cabinet
LDR RCLDR-FS800-18U-A 18U Server Rack Cabinet
SKU:RCLDR-FS800-18U-A
The LDR RCLDR-FS800-18U-A is an 18U server rack cabinet designed for CCTV, security, and access control installations. Featuring a smoked glass front door, 800kg load capacity, included 8-port PDU and 4-way fan, it delivers secure equipment organisation for IT professionals and system integrators.
Couldn't load pickup availability
Product Information
| Brand | LDR |
|---|---|
| Category | Data Racks & Accessories |
| SKU | RCLDR-FS800-18U-A |
| Availability | In Stock |
Overview
- The LDR RCLDR-FS800-18U-A is a fully assembled 18U server rack cabinet built for professional security and networking installations. With an 800kg load capacity and reinforced steel frame, it securely houses standard 19-inch rack-mounted equipment whilst accommodating non-compatible devices on its two fixed shelves. The smoked tempered glass front door provides visibility without compromising security, whilst fully lockable side and back doors ensure controlled access to all equipment.
Coming pre-assembled with an 8-port PDU and 4-way cooling fan, the cabinet is ready for immediate deployment. The IP20 protection class makes it suitable for standard indoor environments, providing essential organisation for CCTV systems, security infrastructure, network switches, and digital recorders. The cabinet's compact 600mm width fits efficiently into security rooms and server spaces while maintaining the industry-standard 800mm mounting depth for compatibility with enterprise equipment.
Specifications
| Nominal Height | 18U |
|---|---|
| Total Outer Height | 820mm |
| Outer Width | 600mm |
| Outer Depth | 900mm |
| Mounting Depth | 800mm |
| Maximum Load Capacity | 800kg |
| Colour | Black |
| Frame Material | Steel |
| Protection Class | IP20 |
| Front Door | Smoked tempered glass, 5mm thickness, with lock |
| Back Door | Solid steel with lock |
| Side Panels | Full steel, removable on latches with lock assembly option |
| Included Accessories | 1x 8-port PDU, 1x 4-way cooling fan, 2x fixed shelves |
| Shipping Dimensions | 1000mm (H) x 620mm (W) x 820mm (D) |
| Shipping Weight | 56kg |
| Packaging | 1 piece per carton |
Key Features
Ideal For
FAQs
Is the cabinet fully assembled and ready to use?
Yes, the LDR RCLDR-FS800-18U-A arrives fully assembled. It includes a PDU and cooling fan pre-installed, so you can begin mounting equipment immediately upon delivery.
What is the maximum load capacity?
The cabinet has a maximum load capacity of 800kg, supported by a reinforced steel frame suitable for heavy networking and security equipment installations.
Can I mount non-standard equipment in this cabinet?
Yes. The cabinet includes two fixed shelves that allow you to place devices that are not compatible with the standard 19-inch rack system, such as switches, recorders, and other security equipment.
What does IP20 protection mean?
IP20 protection means the cabinet provides protection against dust and contact with larger objects. It is suitable for standard indoor environments and does not provide protection against water ingress.
Are the doors lockable?
Yes. The front glass door, back door, and side panels all feature locking mechanisms to secure equipment and restrict unauthorised access.
What is the mounting depth and will my equipment fit?
The mounting depth is 800mm, which accommodates standard 19-inch rack-mounted equipment. Check your equipment's depth specifications to ensure compatibility with your devices.
Can I remove or reconfigure the shelves?
The cabinet comes with two fixed shelves. The data sheet linked on this page provides detailed information about optional accessories and potential customisation options.
