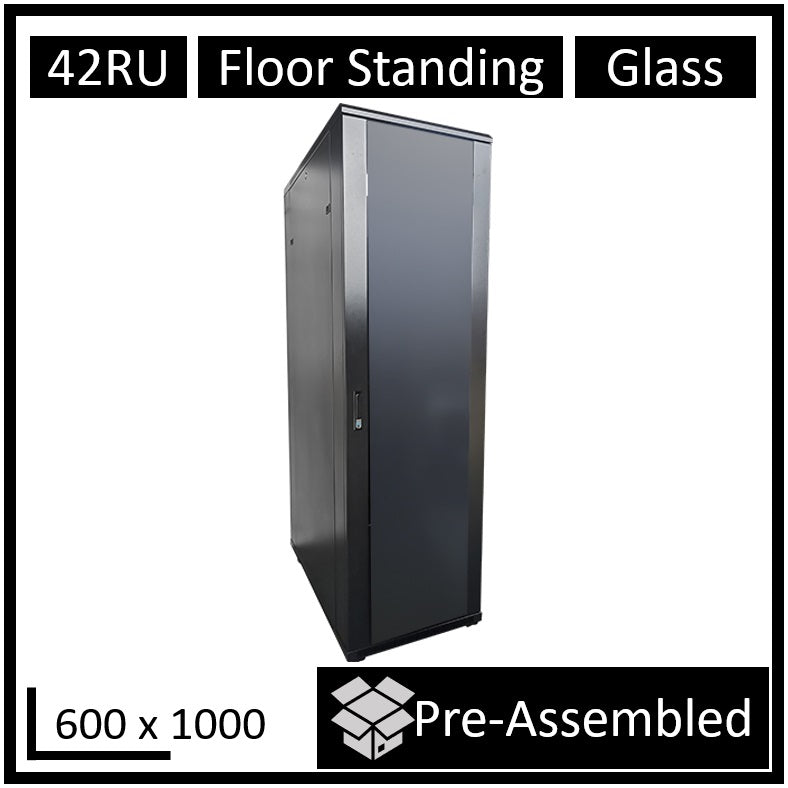

LDR 42U Server Rack Cabinet 600x1000mm Glass Door
LDR 42U Server Rack Cabinet 600x1000mm Glass Door
SKU:RCLDR-FS1000-42U-A
The LDR RCLDR-FS1000-42U-A is a 42U server rack cabinet designed for data centres and network installations. Featuring a glass front door, 800kg load capacity, integrated 8-port PDU, 4-way fan, and two fixed shelves, it delivers secure equipment housing for IT professionals.
Couldn't load pickup availability
- See our return policy
- 12 months Manufacturer Warranty
Product Information
| Brand | LDR |
|---|---|
| Category | Data Racks & Accessories |
| SKU | RCLDR-FS1000-42U-A |
| Availability | In Stock |
Overview
- The LDR RCLDR-FS1000-42U-A is a full-height 42U server rack cabinet built for demanding data centre and network environments. With its robust black steel construction and 800kg load capacity, it provides reliable housing for servers, switches, patch panels, and other network equipment. The cabinet ships pre-assembled with essential accessories including an 8-port PDU for power distribution, a 4-way fan for thermal management, and two fixed shelves for flexible equipment mounting.
The smoke grey glass front door allows visual monitoring of installed equipment whilst maintaining security with integrated locks on both front and rear doors. Removable steel side panels with latch assembly options provide flexibility for cable routing and maintenance access. The cabinet's professional appearance and compact footprint make it suitable for both dedicated server rooms and office environments.
Designed to IP20 protection standards, the cabinet is suitable for indoor use in climate-controlled facilities. The 600mm width and 1000mm depth dimensions conform to standard data centre spacing, allowing multiple units to be deployed side by side for scalable infrastructure growth.
Specifications
| Model | RCLDR-FS1000-42U-A |
|---|---|
| Rack Height | 42U |
| Outer Dimensions (H x W x D) | 1950mm x 600mm x 1000mm |
| Mounting Depth | 900mm |
| Maximum Load Capacity | 800kg |
| Colour | Black |
| Material | Steel |
| Front Door | Smoke grey glass with lock |
| Rear Door | Solid steel with lock |
| Side Panels | Full steel, removable on latches with lock assembly option |
| Protection Class | IP20 |
| Included Accessories | 1x 8-port PDU, 1x 4-way fan, 2x fixed shelves |
| Warranty | 12 months |
| Shipping Dimensions | 2000mm x 620mm x 1200mm |
| Shipping Weight | 122kg |
| Packaging | 1 unit per carton |
Key Features
Ideal For
FAQs
What is the weight capacity of the LDR 42U rack cabinet?
The cabinet has a maximum load capacity of 800kg, distributed across the frame and mounting rails. This supports multiple servers and network equipment typical of enterprise deployments.
Does the cabinet come with cooling and power distribution?
Yes. The cabinet includes a 4-way fan for air circulation and an 8-port PDU for power distribution. Both are pre-installed and ready to use upon delivery.
Is the cabinet pre-assembled?
Yes, the cabinet arrives pre-assembled and ready to deploy. It requires only positioning and connection of power and network cables.
What are the mounting rail dimensions?
The mounting depth is 900mm, which accommodates standard 19-inch rack-mount equipment and allows sufficient clearance for cable management at the rear.
Can the side panels be removed for cable routing?
Yes. The side panels are full steel panels mounted on latches and can be removed to provide access for cable routing, patch panel connections, and maintenance.
What locking mechanisms are included?
The front glass door, rear solid door, and side panel latches all feature integrated lock assemblies for security of installed equipment.
Is this cabinet suitable for office environments?
Yes. The professional black finish and glass front door make it visually suitable for office installations. IP20 protection is appropriate for climate-controlled indoor environments.
