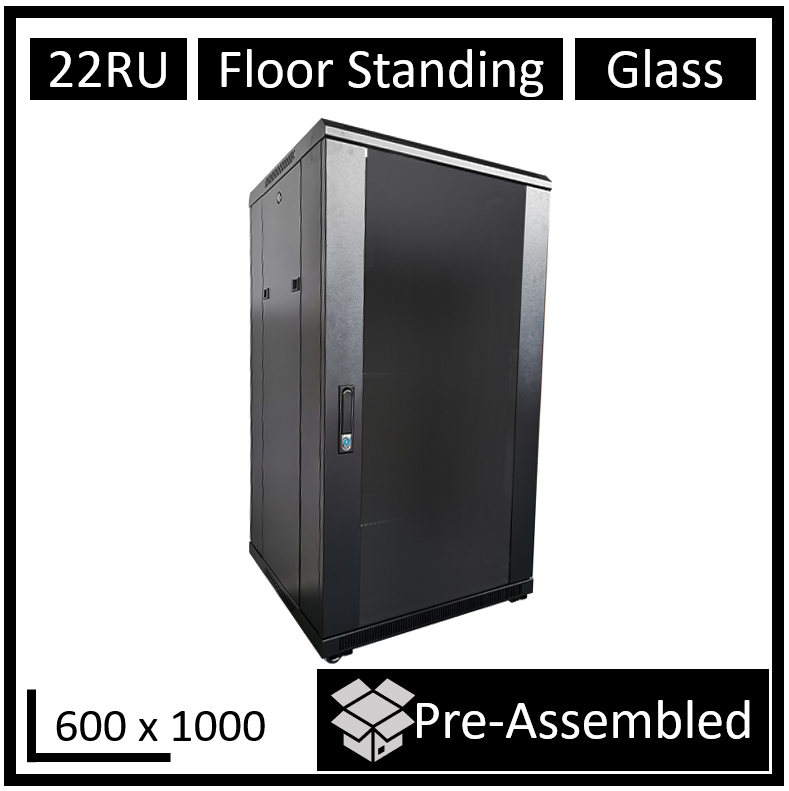

LDR 22U Server Rack Cabinet with Glass Door & PDU
LDR 22U Server Rack Cabinet with Glass Door & PDU
SKU:RCLDR-FS1000-22U-A
The LDR RCLDR-FS1000-22U-A is a 22U server rack cabinet designed for CCTV, security, and access control installations. Featuring a tempered glass front door, integrated 8-port PDU, 4-way cooling fan, and two fixed shelves, it delivers secure equipment organisation and quick access for IT professionals.
Couldn't load pickup availability
Product Information
| Brand | LDR |
|---|---|
| Category | Data Racks & Accessories |
| SKU | RCLDR-FS1000-22U-A |
| Availability | In Stock |
Overview
- The LDR RCLDR-FS1000-22U-A is a 22U server rack cabinet engineered for security, surveillance, and IT infrastructure installations. Built with a robust steel frame capable of supporting up to 600kg, it combines professional-grade equipment housing with practical accessibility features.
The cabinet includes a 5mm tempered glass front door with integrated locking mechanism, providing both visibility and security for critical equipment. Bundled accessories include an 8-port PDU for power distribution and a 4-way cooling fan to maintain optimal operating temperatures for sensitive devices.
Two fixed shelves allow integration of non-standard equipment such as recording devices, switches, and monitoring equipment alongside traditional 19-inch rack-mounted hardware. Lockable side and back doors with full steel panels ensure comprehensive equipment protection, whilst the IP20 rating makes it suitable for controlled indoor environments.
With external dimensions of 600mm (depth) × 1000mm (width) × 1070mm (height), this cabinet delivers efficient space utilisation for security operations centres, data closets, and server rooms.
Specifications
| Mounting Height | 22U |
|---|---|
| External Height | 1070mm |
| External Depth | 600mm |
| External Width | 1000mm |
| Internal Mounting Depth | 900mm |
| Weight (Empty) | 52kg |
| Maximum Load Capacity | 600kg |
| Colour | Black |
| Front Door | Tempered glass (5mm) with lock |
| Back Door | Solid steel with lock |
| Side Panels | Full steel, dismountable on latches with lock assembly option |
| Protection Class | IP20 |
| Included Accessories | 8-port PDU, 4-way cooling fan, two fixed shelves |
| Shipping Dimensions | 1200mm × 620mm × 1200mm |
| Shipping Weight | 21kg |
| Packaging | 1 unit per carton |
Key Features
Ideal For
FAQs
What equipment can be mounted in this 22U rack cabinet?
The cabinet supports standard 19-inch rack-mounted equipment. Additionally, the two included fixed shelves accommodate non-standard devices such as CCTV recorders, switches, patch panels, and other security system components that don't fit the 19-inch standard.
Is cooling included with the cabinet?
Yes, the cabinet includes a 4-way cooling fan to maintain optimal operating temperatures. The IP20 protection class rating also supports controlled air circulation in indoor installations.
What is the maximum load capacity?
The cabinet has a maximum load capacity of 600kg. The reinforced steel frame is engineered to safely support this weight across all mounting positions.
Are the doors lockable?
Yes. The front glass door, back solid door, and side panels all feature lock assemblies, providing comprehensive security for sensitive equipment.
What is included in the package?
The cabinet arrives assembled and includes an 8-port PDU, 4-way cooling fan, and two fixed shelves. All doors and side panels are included and ready to install.
Is this cabinet suitable for outdoor installations?
No. The IP20 protection class rating indicates suitability for controlled indoor environments only. It is not rated for outdoor or humid installations.
What is the internal depth available for equipment?
The internal mounting depth is 900mm, allowing installation of most standard server and networking equipment with typical cable management space.
