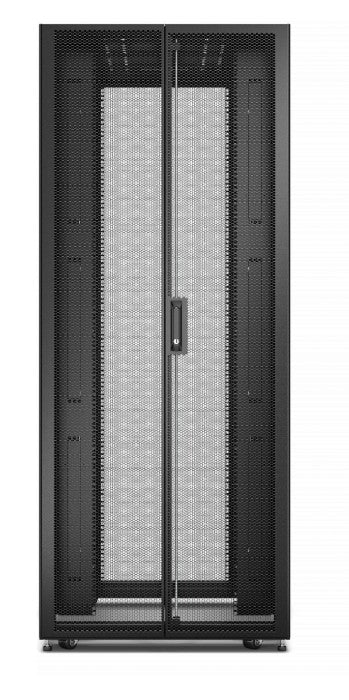

APC Easy Rack ER8822 48U Server Enclosure
APC Easy Rack ER8822 48U Server Enclosure
SKU:UPAPC-ER8822
The APC Easy Rack ER8822 is a 48U pre-assembled IT enclosure designed for datacenter and server applications. Featuring EIA-310 compliance, ventilated doors, and a robust frame, it delivers high-density equipment mounting and excellent cable management for growing IT infrastructure.
Couldn't load pickup availability
- See our return policy
- 12 months Manufacturer Warranty
Product Information
| Brand | APC |
|---|---|
| Category | UPS & Power Board |
| SKU | UPAPC-ER8822 |
| Availability | Out of Stock |
Overview
- The APC Easy Rack ER8822 is a robust, pre-assembled 48U server enclosure built to meet EIA-310 standards for universal IT equipment compatibility. Its generous 800mm width and 1200mm depth accommodate today's deepest network and server hardware, while the ventilated door design with 81% perforation ensures efficient cooling and airflow management across all mounted equipment.
Designed for datacenter and enterprise server room deployments, the ER8822 combines structural durability with operational convenience. It supports static loads up to 1200kg and dynamic loads to 600kg, making it suitable for high-density IT consolidation. The fully assembled unit arrives ready to install, reducing deployment time, whilst the option for unassembled shipping accommodates tight storage and transport requirements.
Integrated 1U vertical mounting spaces adjacent to standard EIA-310 u-spaces provide additional flexibility for PDUs, cable management, and monitoring accessories. The inclusion of levelling feet, castors, and PDU mounting brackets simplifies installation and repositioning. Compatibility with Schneider's EcoStruxure IT ecosystem enables remote monitoring and management of on-premise and distributed infrastructure from anywhere, supporting modern hybrid IT operations.
Specifications
| Manufacturer | APC |
|---|---|
| Model | ER8822 |
| Product Type | Server Rack Enclosure |
| Height | 2258mm (48U) |
| Width | 800mm |
| Depth | 1200mm |
| Standards Compliance | EIA-310 |
| Static Load Rating | 1200kg |
| Dynamic Load Rating | 600kg |
| Door Type | Ventilated |
| Door Perforation | 81% |
| Colour | Black |
| Assembly Status | Fully assembled or unassembled |
| Included Accessories | Roof, side panels, levelling feet, castors, keys, PDU mounting brackets |
| Bottom Panel | Not included |
| Vertical Mounting Spaces | Integrated 1U spaces (removable and replaceable) |
| EcoStruxure IT Compatible | Yes |
| Warranty | 12 months |
Key Features
Ideal For
FAQs
What is the maximum weight capacity of the APC Easy Rack ER8822?
The ER8822 supports a static load rating of 1200kg and a dynamic load rating of 600kg, making it suitable for high-density server and networking equipment installations.
Is the APC Easy Rack ER8822 compatible with standard IT equipment?
Yes, the ER8822 complies with EIA-310 standards, ensuring universal compatibility with standard rack-mount equipment from all major manufacturers.
Does the rack come fully assembled?
The ER8822 ships fully assembled for immediate installation. Unassembled options are available for customers preferring to assemble on-site or requiring compact transport.
What accessories are included with the ER8822?
The rack includes a roof, side panels, levelling feet, castors, keys, and PDU mounting brackets. It does not include a bottom panel.
What are the internal dimensions and how do they compare to standard racks?
At 800mm width and 1200mm depth, the ER8822 is wider and deeper than many standard racks, providing additional space for deep equipment and superior cable management options.
Can the APC Easy Rack ER8822 integrate with monitoring systems?
Yes, the ER8822 is compatible with Schneider's EcoStruxure IT platform, enabling remote monitoring and management of your IT infrastructure from any location.
How does the ventilated door design improve cooling?
The ventilated doors feature 81% perforation, allowing excellent airflow throughout the enclosure to support efficient thermal management and prevent equipment overheating.
