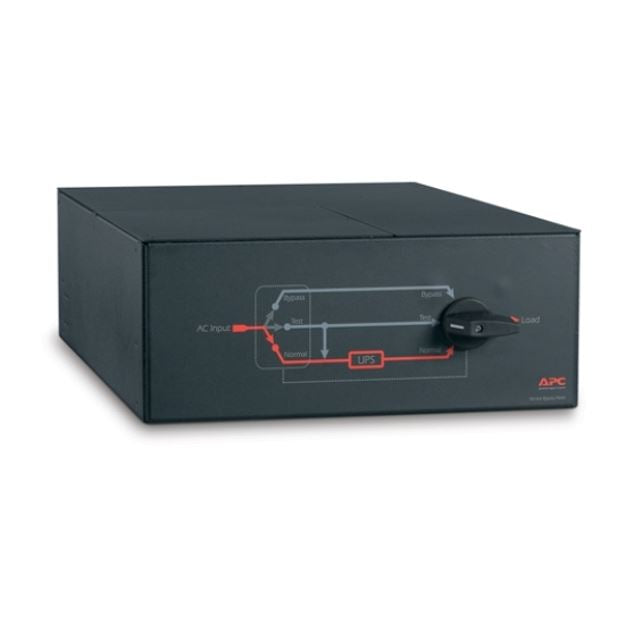

APC SBP10KRMI4U 4U Service Bypass Panel 230V
APC SBP10KRMI4U 4U Service Bypass Panel 230V
SKU:UPAPC-SBP10KRMI4U
The APC SBP10KRMI4U is a 4U rack-mounted service bypass panel designed for high-capacity power distribution. Featuring hardwire 230V input, 100A capacity, and mixed output connectors (8x C13, 2x C19), it delivers reliable power management for data centres and critical infrastructure.
Couldn't load pickup availability
- See our return policy
- 24 months Manufacturer Warranty
Product Information
| Brand | APC |
|---|---|
| Category | UPS & Power Board |
| SKU | UPAPC-SBP10KRMI4U |
| Availability | In Stock |
Overview
- The APC SBP10KRMI4U service bypass panel provides enterprise-grade power distribution for critical business environments. Its 100A hardwire input accepts both single-phase and three-phase 230V power, while eight C13 and two C19 output connectors accommodate diverse equipment types from standard servers to high-draw devices.
Designed for rack integration, this 4U panel delivers 20 kVA capacity with 99% efficiency and circuit breaker protection. It is certified to international standards (EN/IEC 62040-1 and 62040-2) and supports both CSA and GOST compliance, making it suitable for global deployment.
Ideal for data centres, server rooms, and organisations requiring reliable, high-capacity power bypass solutions during UPS maintenance or equipment servicing.
Specifications
| Input Voltage | 230V AC |
|---|---|
| Output Voltage | 230V AC |
| Input Type | Hardwire (1x 3-wire single-phase and 1x 4-wire three-phase) |
| Input Connectors | 2 hardwire connections (3-wire and 4-wire) |
| Input Current Rating | 100A maximum |
| Output Connectors | 8x IEC 60320 C13, 2x IEC 60320 C19 |
| Load Capacity | 20,000 VA |
| Maximum Current Draw | 100A |
| Power Factor | 0 to 1 |
| Efficiency | 99% |
| Network Frequency | 50/60 Hz |
| Protection Type | Circuit breaker |
| Rack Units | 4U |
| Mounting Type | Rack-mounted |
| Operating Temperature | -20°C to 50°C |
| Operating Humidity | 0% to 95% RH |
| Operating Altitude | 0 to 15,000 feet |
| Storage Temperature | -40°C to 65°C |
| Storage Humidity | 0% to 95% RH |
| Storage Altitude | 0 to 15,240 metres |
| Product Certifications | CSA, GOST |
| Standards Compliance | EN/IEC 62040-1:2019/A11:2021, EN/IEC 62040-2:2006/AC:2006, EN/IEC 62040-2:2018 |
| Included Accessories | Installation guide, rack mounting brackets, user manual |
| Warranty | 24 months |
Key Features
Ideal For
FAQs
What is the purpose of a service bypass panel?
A service bypass panel allows maintenance on connected UPS systems without interrupting power to critical equipment. It provides an alternate power path when the UPS is offline for servicing.
Can this panel accept three-phase power?
Yes. The APC SBP10KRMI4U includes both a 3-wire single-phase and 4-wire three-phase hardwire input connector, supporting flexible power configurations.
What is the maximum load capacity?
The panel supports a maximum load capacity of 20,000 VA (20 kVA) with a 100A input current rating.
What output connector types are available?
The panel provides 8x IEC 60320 C13 connectors (standard server/equipment) and 2x IEC 60320 C19 connectors (high-draw devices).
Is this panel suitable for international use?
Yes. The APC SBP10KRMI4U is certified to international standards (EN/IEC 62040-1 and 62040-2) and holds CSA and GOST certifications, supporting global deployment.
What protection does the circuit breaker provide?
The integrated circuit breaker protects the panel and connected equipment from overcurrent conditions, ensuring safe operation within the 100A rating.
What is included in the package?
The SBP10KRMI4U includes an installation guide, rack mounting brackets, and user manual. Professional installation is recommended for hardwire connections.
