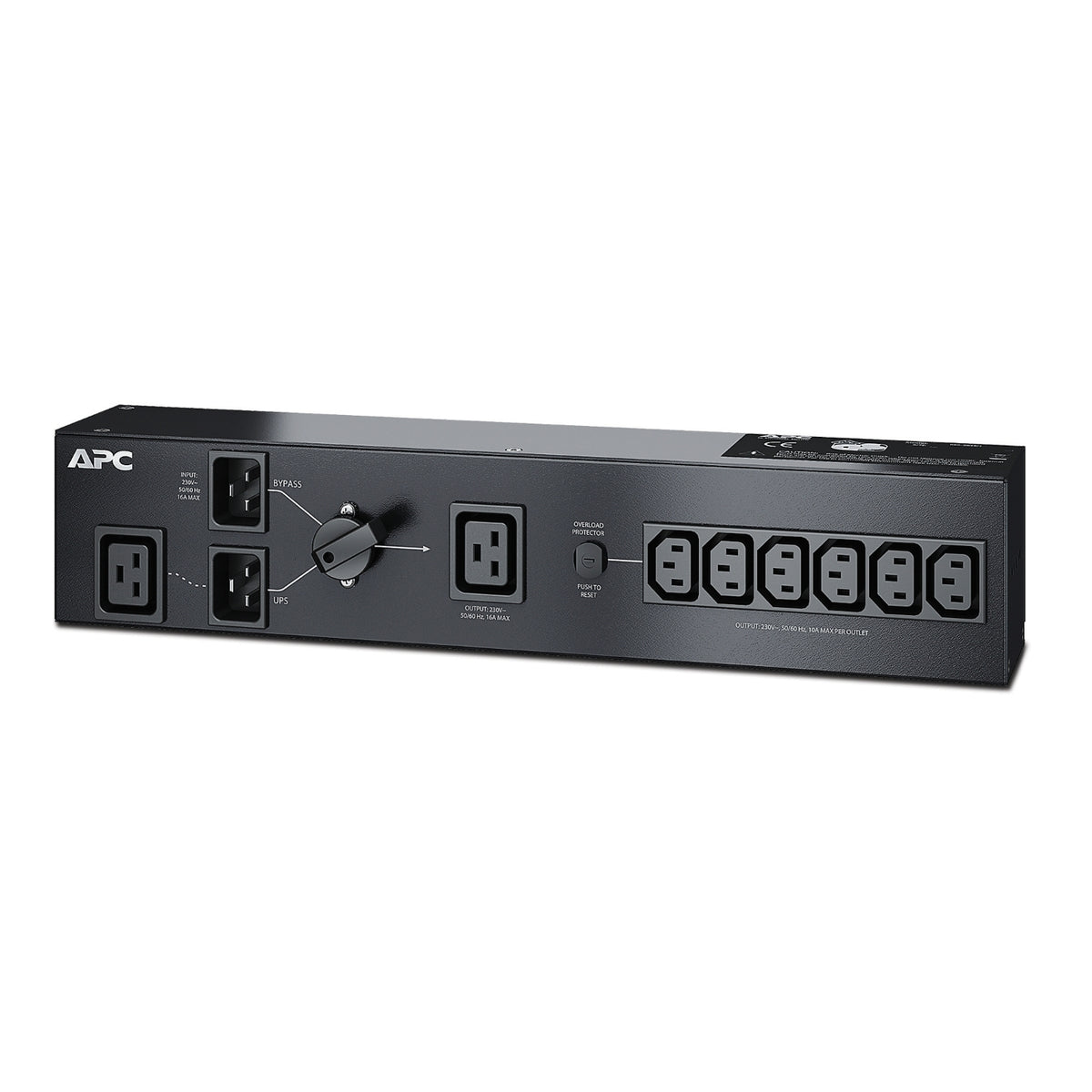

APC SBP3000RMI Service Bypass PDU 2U 3000VA
APC SBP3000RMI Service Bypass PDU 2U 3000VA
SKU:UPAP-SBP3000RMI
The APC SBP3000RMI is a 2U service bypass PDU designed for data centre and rack environments. Featuring 3000VA load capacity, 230V/16A input, and mixed outlet configuration with 6x IEC C13 and 1x IEC C19 connections, it delivers reliable power distribution and seamless maintenance bypass for IT professionals.
Couldn't load pickup availability
- See our return policy
- 24 months Manufacturer Warranty
Product Information
| Brand | APC |
|---|---|
| Category | Data Racks & Accessories |
| SKU | UPAP-SBP3000RMI |
| Availability | In Stock |
Overview
- The APC SBP3000RMI is a professional-grade service bypass PDU purpose-built for data centre environments where maintenance and power continuity are critical. As a bypass kit, it provides seamless power switching capability, allowing IT teams to perform maintenance on upstream UPS systems without interrupting power to connected equipment.
With a 3000VA capacity and 230V/16A input specification, the SBP3000RMI accommodates diverse server and networking equipment through its combination of 6x IEC C13 (standard) and 1x IEC C19 (high-power) outlets. The 2U rackmount design integrates efficiently into standard 19-inch racks, while 99% efficiency minimises energy loss and operational costs.
Built to EN/IEC 62040 standards and equipped with circuit breaker protection, this PDU delivers the reliability and safety required in mission-critical environments. The 2.5 m power cable and included mounting brackets simplify installation, whilst the 24-month manufacturer warranty provides peace of mind for facility managers and procurement teams.
Specifications
| Brand | APC |
|---|---|
| Model | SBP3000RMI |
| Product Type | Service Bypass PDU |
| Rack Units | 2U |
| Input Voltage | 230V |
| Output Voltage | 230V |
| Maximum Load Capacity | 3000VA |
| Maximum Line Current | 16A |
| Input Connection Type | IEC 60320 C20 |
| Power Outlets - C13 | 6x IEC 60320 C13 |
| Power Outlets - C19 | 1x IEC 60320 C19 |
| Total Outlets | 7 |
| Power Cable Length | 2.5m |
| Input Cable Length | 1.0m |
| Protection Type | Circuit breaker |
| Power Factor | 0 to 1 |
| Efficiency | 99% |
| Network Frequency | 50/60 Hz |
| Operating Temperature Range | 0 to 40°C |
| Operating Humidity Range | 0 to 95% RH |
| Operating Altitude | 0 to 15,000 ft |
| Storage Temperature Range | -15 to 45°C |
| Storage Humidity Range | 0 to 95% RH |
| Storage Altitude | 0 to 15,240m |
| Mounting Mode | Rack mounted |
| Certifications | VDE |
| Standards Compliance | EN/IEC 62040-1:2019/A11:2021, EN/IEC 62040-2:2006/AC:2006, EN/IEC 62040-2:2018 |
| Included Accessories | User manual, Rack mounting brackets |
| Warranty | 24 months |
Key Features
Ideal For
FAQs
What is a service bypass PDU and how does it benefit data centres?
A service bypass PDU allows you to switch power sources without interrupting equipment operation. This is critical for maintenance windows—you can power equipment from an alternative source, service your main UPS, then switch back seamlessly, eliminating costly downtime.
Can the APC SBP3000RMI be used with mixed server types?
Yes. The combination of 6x IEC C13 (standard 10A) and 1x IEC C19 (16A high-power) outlets accommodates both legacy and modern equipment with varying power requirements up to the 3000VA total capacity.
What power cable and input connection does it use?
The SBP3000RMI uses an IEC 60320 C20 input connection with a 2.5m power cable. The 1.0m input cable allows flexible positioning within your rack infrastructure.
Is this PDU suitable for Australian data centre environments?
Yes. The SBP3000RMI operates at 230V/50Hz, standard for Australian infrastructure, and meets EN/IEC 62040 compliance standards. It performs reliably across typical Australian operating conditions (0–40°C).
What safety features does the SBP3000RMI include?
The PDU features an integrated circuit breaker for overcurrent protection and meets VDE and EN/IEC 62040 standards for electrical safety. It maintains 99% efficiency, minimising heat generation and operational risk.
How is the SBP3000RMI mounted in a rack?
It mounts as a 2U rackmount device in standard 19-inch racks. Mounting brackets and full instructions are included, enabling quick installation by IT teams.
What warranty and support does APC provide?
The SBP3000RMI includes a 24-month manufacturer warranty covering defects and failures. Hyetech Australia provides local support and can assist with warranty claims and technical enquiries.
