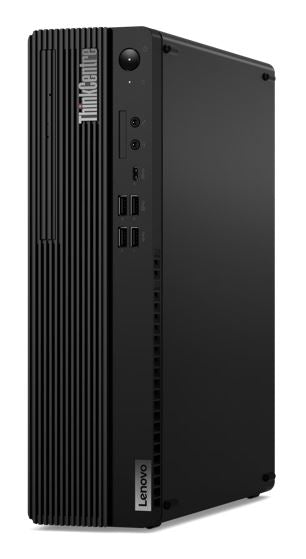

Lenovo ThinkCentre M70s G5 SFF Desktop PC i7-14700
Lenovo ThinkCentre M70s G5 SFF Desktop PC i7-14700
SKU:SYLEN-M70S-I716512G52
Couldn't load pickup availability
- See our return policy
- 3-year onsite Manufacturer Warranty
Product Information
| Brand | Lenovo |
|---|---|
| Category | Systems - NUC/SFF/AIO |
| SKU | SYLEN-M70S-I716512G52 |
| Availability | In Stock |
Overview
- The Lenovo ThinkCentre M70s G5 is a powerful small-form-factor desktop built for demanding professional applications. With its 14th-generation Intel Core i7-14700 processor, 16GB DDR5 memory, and 512GB SSD, it delivers responsive performance for complex workloads while maintaining a compact footprint ideal for space-constrained office environments.
This system combines enterprise-class security with everyday usability. The discrete TPM 2.0 chip, FIPS 140-2 certification, and Kensington Security Slot provide multi-layered protection for sensitive data. Integrated Wi-Fi 6E and Bluetooth 5.2 ensure fast, reliable wireless connectivity, whilst dual display outputs support multi-monitor productivity workflows.
Built to professional standards, the ThinkCentre M70s G5 has passed MIL-STD-810H military durability testing and holds ENERGY STAR 8.0 and EPEAT Gold certifications, reflecting its robustness and environmental responsibility. The 3-year onsite warranty provides peace of mind for business-critical deployments.
Specifications
| processor | Intel Core i7-14700 (20 cores: 8 performance + 12 efficiency, 28 threads, max turbo 5.4GHz) |
|---|---|
| processor_cores | 20 cores (8P + 12E) |
| processor_threads | 28 threads |
| processor_frequency_base | P-core 2.1GHz, E-core 1.5GHz |
| processor_frequency_turbo | Up to 5.4GHz |
| processor_cache | 33MB |
| graphics | Intel UHD Graphics 770 (integrated) |
| chipset | Intel Q670 |
| memory_standard | DDR5-5600 |
| memory_installed | 16GB (2x 8GB UDIMM) |
| memory_slots | 2x DDR5 UDIMM slots (dual-channel) |
| memory_maximum | 64GB DDR5 |
| storage_primary | 512GB M.2 2280 NVMe SSD PCIe 4.0x4 with Opal 2.0 |
| storage_expandable | Up to 3 drives: 1x 3.5" HDD (up to 2TB) + 1x 2.5" HDD + 1x M.2 SSD (up to 2TB each) |
| audio | Realtek ALC623-CG HD Audio codec with 1W speaker |
| power_supply | 260W 90% efficiency |
| expansion_slots | 1x PCIe 3.0 x16 (low-profile ≤155mm length, ≤70mm height) + 1x PCIe 3.0 x1 (low-profile) + 2x M.2 slots (1 WLAN, 1 SSD) |
| ethernet | Integrated 100/1000M (RJ-45) |
| wireless | Intel Wi-Fi 6 AX201 (802.11ax 2x2) + Bluetooth 5.2 |
| usb_front | 1x USB-C (USB 3.2 Gen 1, 5Gbps, 15W charging) + 4x USB-A (USB 3.2 Gen 1, 5Gbps) + audio combos (1x 3.5mm headphone/microphone, 1x 3.5mm microphone) |
| usb_rear | 4x USB-A (USB 2.0) |
| video_outputs | 1x HDMI 2.1 TMDS + 1x DisplayPort 1.4a (HBR2, DSC) |
| security_chip | Discrete TPM 2.0 (TCG certified, FIPS 140-2 certified) |
| physical_security | Kensington Security Slot (3 x 7mm) + padlock loop |
| form_factor | SFF (Small Form Factor) |
| volume | 8.2L |
| dimensions | 92.5 x 297.7 x 339.5mm (W x D x H) |
| dimensions_inches | 3.6 x 11.7 x 13.4 inches |
| weight | 5.3kg (11.7 lbs) |
| case_colour | Black |
| operating_system | Windows 11 Pro |
| keyboard | USB Traditional Keyboard (English, Black) |
| mouse | USB Calliope Mouse (Black) |
| warranty | 3-year onsite |
| certifications | ENERGY STAR 8.0, EPEAT Gold, ErP Lot 3, GREENGUARD, RoHS compliant, TCO Certified 9.0 |
| durability_testing | MIL-STD-810H military standard (altitude, temperature, humidity, vibration, shock, salt fog, contamination) |
Key Features
Ideal For
FAQs
What is the maximum memory capacity for the ThinkCentre M70s G5?
The system can be upgraded to a maximum of 64GB DDR5 memory using the two available DDR5 UDIMM slots in dual-channel configuration.
Can I add additional storage drives to this system?
Yes. The ThinkCentre M70s G5 supports up to three storage drives: one 3.5" HDD (up to 2TB), one 2.5" HDD (customer self-upgrade), and one M.2 SSD (up to 2TB). The primary 512GB M.2 SSD is pre-installed.
Does this desktop support multiple monitors?
Yes. The system features both HDMI 2.1 and DisplayPort 1.4a video outputs, allowing you to connect multiple displays for enhanced productivity.
What security features are included?
The ThinkCentre M70s G5 includes a discrete TPM 2.0 security chip (TCG certified, FIPS 140-2 certified), Kensington Security Slot, and a padlock loop for physical device protection.
What is the warranty coverage?
This system includes a 3-year onsite warranty, providing on-location service and support for the duration of the warranty period.
Is the system energy efficient?
Yes. The ThinkCentre M70s G5 is ENERGY STAR 8.0 certified, EPEAT Gold registered, and GREENGUARD certified, demonstrating strong energy efficiency and environmental responsibility.
What wireless connectivity options are available?
The system includes Intel Wi-Fi 6E AX201 (802.11ax 2x2) with Bluetooth 5.2, providing high-speed wireless internet and device connectivity.
