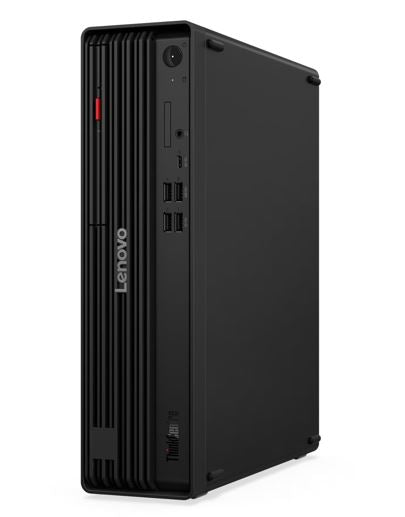

Lenovo ThinkCentre M70S G6 SFF Desktop PC
Lenovo ThinkCentre M70S G6 SFF Desktop PC
SKU:SYLEN-M70S-U516512G6
The Lenovo ThinkCentre M70S G6 is a compact SFF desktop designed for business productivity and AI-enhanced workloads. Featuring Intel Core Ultra 5 processing, 16GB DDR5 memory, and integrated AI Boost technology, it delivers professional performance in a space-efficient 8.2L form factor.
Couldn't load pickup availability
- See our return policy
- 3-year onsite Manufacturer Warranty
Product Information
| Brand | Lenovo |
|---|---|
| Category | Systems - NUC/SFF/AIO |
| SKU | SYLEN-M70S-U516512G6 |
| Availability | In Stock |
Overview
- The Lenovo ThinkCentre M70S G6 combines enterprise-grade performance with space efficiency, making it ideal for modern business environments. Built on Intel's latest Core Ultra 5 architecture, it integrates the Intel AI Boost NPU, positioning it as a true AI PC capable of handling emerging AI workloads alongside traditional business applications.
This SFF system prioritises connectivity and expandability despite its compact 8.2L footprint. With six USB ports across the front and rear, dual DisplayPort 1.4a outputs, and HDMI 2.1, it supports multi-monitor setups and diverse peripherals. The system accommodates up to four storage drives and 128GB of DDR5 memory, allowing significant future upgrades without chassis replacement.
Security and compliance are built-in. A discrete TPM 2.0 chip provides cryptographic protection, while certifications including ENERGY STAR 9.0, TCO Certified 10, and military-standard durability (MIL-STD-810H) demonstrate suitability for demanding enterprise environments. The 3-year onsite warranty ensures minimal downtime for business-critical deployments.
Specifications
| Processor | Intel Core Ultra 5 225 (10-core, 10-thread, max turbo 4.9GHz, 20MB Smart Cache) |
|---|---|
| AI Accelerator | Integrated Intel AI Boost, up to 13 TOPS |
| Graphics | Integrated Intel Graphics |
| Chipset | Intel Q870 |
| Memory | 2 x 8GB DDR5-5600 UDIMM, four slots total, expandable to 128GB |
| Storage | 512GB PCIe 4.0 NVMe SSD (M.2 2280, Opal 2.0) |
| Max Storage | Up to four drives: 1 x 3.5" HDD (2TB), 1 x 2.5" HDD, 2 x M.2 SSD (2TB each) |
| Wireless | Realtek Wi-Fi 7 (802.11be, 2x2) + Bluetooth 5.4 |
| Ethernet | Gigabit Ethernet (100/1000M), rear RJ-45 |
| Front Ports | 1 x USB-C 3.2 Gen 1 (5Gbps, 15W charging), 2 x USB-A 3.2 Gen 1 (5Gbps), 2 x USB-A 3.2 Gen 2 (10Gbps), 1 x 3.5mm audio combo |
| Rear Ports | 4 x USB-A 3.2 Gen 1 (5Gbps), 1 x HDMI 2.1, 2 x DisplayPort 1.4a (HBR3), 1 x 3.5mm line-out |
| Expansion | 1 x PCIe 4.0 x16 (low-profile), 2 x PCIe 3.0 x1 (low-profile), 3 x M.2 slots (1 WLAN, 2 SSD) |
| Audio | Realtek ALC623-CG HD audio codec, 1W speaker |
| Security | Discrete TPM 2.0 (TCG, FIPS 140-2 certified), Kensington security slot, padlock loop |
| Power Supply | 200W, 90% efficiency |
| Form Factor | SFF (8.2L) |
| Dimensions | 92.5 x 299.7 x 339.5mm |
| Weight | 5.1kg (maximum configuration) |
| Case Colour | Black |
| Operating System | Windows 11 Pro (English) |
| Warranty | 3-year onsite |
| Certifications | ENERGY STAR 9.0, TCO Certified 10, ErP Lot 3, GREENGUARD, RoHS compliant, MIL-STD-810H military test |
| Included Accessories | USB keyboard, USB mouse |
Key Features
Ideal For
FAQs
Can I upgrade the memory and storage?
Yes. The system has four DDR5 slots (currently 2 x 8GB), supporting up to 128GB total. Storage can be expanded with up to four drives: one 3.5" HDD (2TB), one 2.5" HDD, and two M.2 SSDs (2TB each). All upgrades are user-accessible.
What makes this an AI PC?
It features Intel's integrated AI Boost NPU (13 TOPS) within the Core Ultra 5 processor, enabling hardware acceleration for AI workloads and applications designed to leverage neural processing without discrete GPU requirements.
Does it support multiple monitors?
Yes. It includes two DisplayPort 1.4a outputs and one HDMI 2.1 port, allowing up to three displays simultaneously (or two via DisplayPort + one HDMI configuration).
Is it suitable for secure environments?
Yes. It includes a discrete TPM 2.0 (TCG and FIPS 140-2 certified), physical security features (Kensington slot, padlock loop), and meets military durability standards (MIL-STD-810H), making it suitable for secure and demanding deployments.
What warranty is included?
A 3-year onsite warranty is included, covering parts and labour with on-site service response, minimising downtime for business-critical systems.
Is Wi-Fi 7 included?
Yes. It features Realtek Wi-Fi 7 (802.11be, 2x2 MIMO) and Bluetooth 5.4 for fast wireless connectivity and multi-device pairing.
How large is the case, and will it fit in tight spaces?
The 8.2L SFF chassis measures 92.5 x 299.7 x 339.5mm, making it compact enough for space-constrained desks and office environments while maintaining extensive expandability and connectivity.
