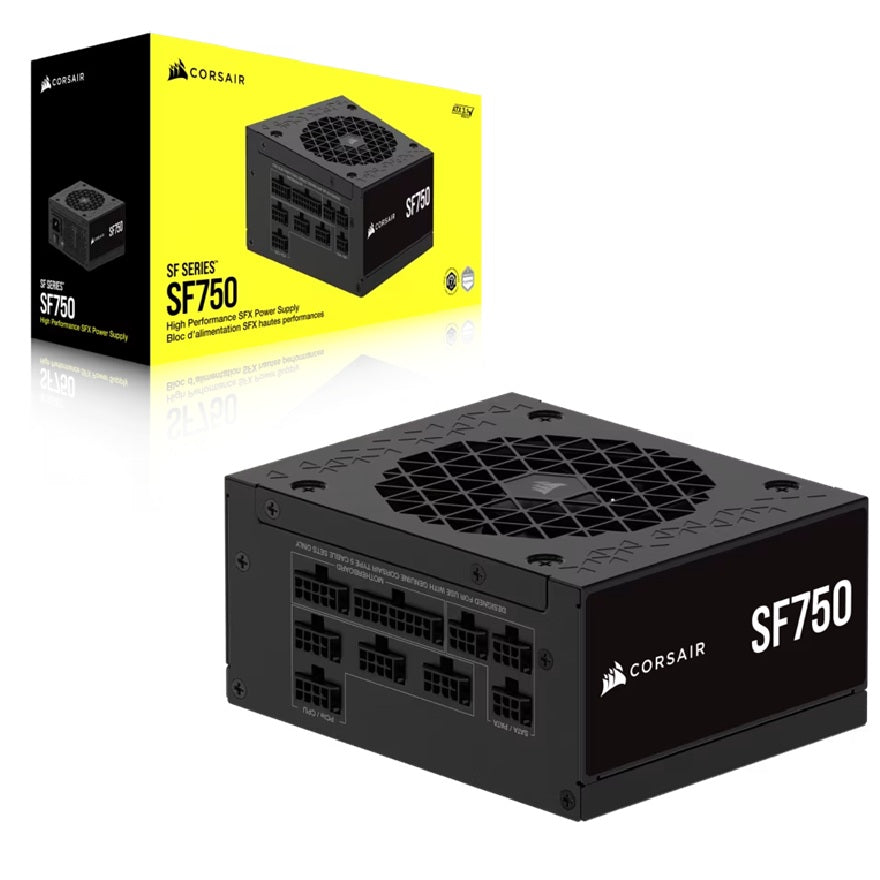

Corsair SF750 750W Fully Modular SFX Power Supply
Corsair SF750 750W Fully Modular SFX Power Supply
SKU:PSCP-SF750
Couldn't load pickup availability
- See our return policy
- 7 years Manufacturer Warranty
Product Information
| Brand | Corsair |
|---|---|
| Category | Power Supplies |
| SKU | PSCP-SF750 |
| Availability | Out of Stock |
Overview
- The Corsair SF750 brings enterprise-grade power efficiency to compact PC builds. With 750W of 80 PLUS Platinum-rated capacity, this fully modular SFX supply delivers clean, efficient power whilst maintaining a small footprint suited to mini-ITX and small form-factor cases.
ATX 3.1 certification ensures compliance with the latest power standards, whilst the included PCIe 5.1 12V-2x6 GPU cable supports modern graphics cards like the NVIDIA GeForce RTX 40 Series. The 92mm fluid dynamic bearing fan operates silently, with Zero RPM mode eliminating fan noise entirely during low to medium load operation.
Fully modular Type 5 connectors allow you to connect only the cables you need, reducing clutter and improving airflow in tight spaces. With a 100,000-hour MTBF and 7-year warranty, the SF750 provides the reliability expected in professional builds.
Specifications
| Wattage | 750W |
|---|---|
| Form Factor | SFX |
| Efficiency Rating | 80 PLUS Platinum |
| ATX Standard | ATX 3.1 |
| Modular | Fully modular |
| Connector Type | Type 5 Micro-Fit |
| AC Input | 100–240V |
| Input Current | 10A–5A |
| Frequency | 47–63 Hz |
| Fan Size | 92mm |
| Fan Technology | Fluid Dynamic Bearing (PWM) |
| Zero RPM Mode | Yes |
| ATX Connectors | 1 |
| ATX 12V Connectors | 2 |
| EPS Connectors | 2 |
| PCIe Connectors | 2 |
| SATA Connectors | 8 |
| PATA Connectors | 3 |
| 5VSB Output | 15W |
| +3.3V Output | 130W (20A max) |
| +5V Output | 130W (20A max) |
| +12V Output | 750W (62.5A max) |
| Noise Rating | A- (Cybenetics) |
| MTBF | 100,000 hours |
| Weight | 2.15 kg |
| Warranty | 7 years |
| Plug Type | AU 10A/250V |
| Part Number | 75-006069 |
| Manufacturer SKU | CP-9020284-AU |
Key Features
Ideal For
FAQs
Is the Corsair SF750 suitable for RTX 40 Series graphics cards?
Yes. The SF750 includes a PCIe 5.1 12V-2x6 GPU cable and is ATX 3.1 certified, providing full support for modern NVIDIA GeForce RTX 40 Series graphics cards and other current-generation GPUs.
What does 80 PLUS Platinum efficiency mean?
80 PLUS Platinum means the PSU converts at least 90% of mains AC power to DC output, reducing wasted energy as heat. This results in lower power bills, less fan noise, and improved system reliability.
What is Zero RPM mode?
Zero RPM mode automatically stops the fan during low to medium load operation, eliminating fan noise completely. The fan resumes when power demand increases, ensuring efficient cooling without unnecessary noise.
Can I use the SF750 in a standard ATX case?
The SF750 is designed for SFX form-factor cases. Standard ATX cases require ATX or E-ATX power supplies. Verify your case supports SFX before purchasing.
Why is fully modular cabling important in small form-factor builds?
Fully modular cables allow you to connect only the connectors you need, reducing cable clutter inside compact cases. This improves airflow, simplifies cable management, and makes troubleshooting easier.
What is the warranty on the Corsair SF750?
The SF750 includes a 7-year manufacturer's warranty, covering defects in materials and workmanship.
What does ATX 3.1 certification mean?
ATX 3.1 certification indicates the PSU meets the latest industry standards for power efficiency, reliability, and compatibility with modern motherboards and components, including PCIe 5.1 support.
