Ubiquiti FC-SM-100 Single-Mode Fibre Cable 30m
Ubiquiti FC-SM-100 Single-Mode Fibre Cable 30m
SKU:NHU-FC-SM-100
Couldn't load pickup availability
- See our return policy
- 12 months Manufacturer Warranty
Product Information
| Brand | Ubiquiti |
|---|---|
| Category | Network - UISP |
| SKU | NHU-FC-SM-100 |
| Availability | In Stock |
Overview

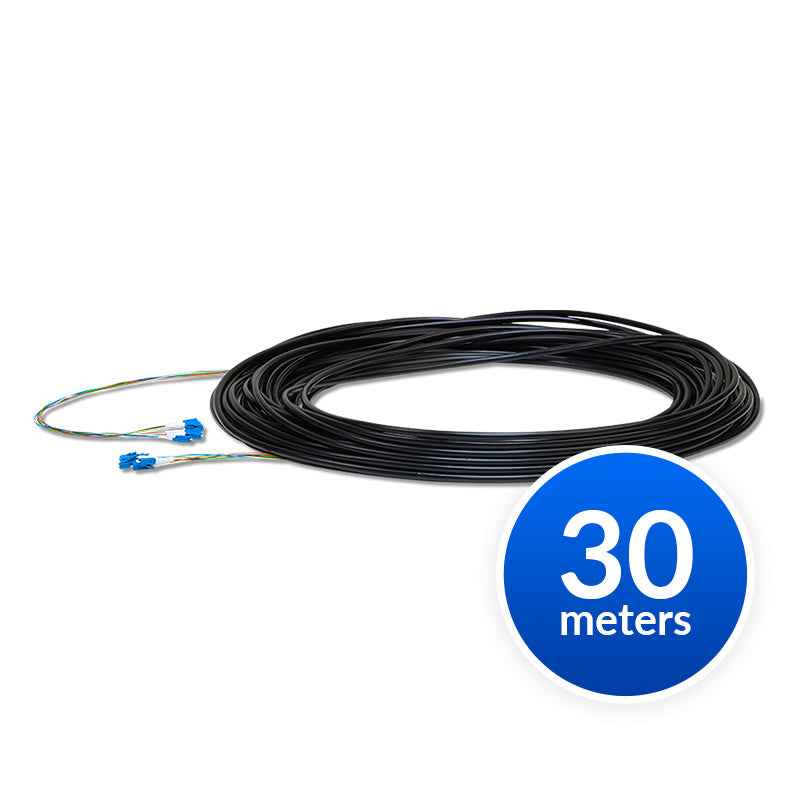

- The Ubiquiti FC-SM-100 is a purpose-built single-mode fibre cable optimised for outdoor network deployments. Pre-terminated to 30 metres, it eliminates the need for field splicing and reduces installation time on tower and rooftop projects.
Designed specifically for Ubiquiti's outdoor product range including EdgePoint, this cable combines robust construction with excellent fibre performance. The outer-rated jacket protects against UV exposure and moisture, whilst Kevlar yarn provides mechanical strength for tensioned cable runs and challenging installation environments.
With low insertion loss across both 1310 nm and 1550 nm wavelengths, the FC-SM-100 ensures signal integrity over longer distances. The 6.0 mm outer diameter keeps the cable lightweight and flexible, reducing strain on mounting hardware and simplifying route planning. Weatherproof tape integration adds an extra layer of environmental protection at connectors and splice points.
Specifications
| Cable Type | Single-Mode Fibre (Six-Strand) |
|---|---|
| Fibre Standard | G.657.A2 |
| Length | 30 metres |
| Outer Diameter | 6.0 ± 0.2 mm |
| Fibre Strand Outer Diameter | 0.25 mm (nominal) |
| Jacket Type | Outdoor-Rated with Ripcord |
| Reinforcement | Kevlar Yarn |
| Weatherproofing | Integrated Weatherproof Tape |
| Insertion Loss at 1310 nm | ≤0.5 dB/km |
| Insertion Loss at 1550 nm | ≤0.5 dB/km |
| Warranty | 12 months |
Key Features
Ideal For
FAQs
What is the difference between single-mode and multi-mode fibre?
Single-mode fibre (like the FC-SM-100) carries light through a single path, enabling longer distances and higher bandwidth with lower signal loss. Multi-mode fibre supports multiple light paths and is suited to shorter distances. The FC-SM-100's G.657.A2 specification makes it ideal for outdoor, long-distance network links.
Can this cable be used for indoor installations?
The FC-SM-100 is specifically designed for outdoor use with an outdoor-rated jacket, weatherproof tape, and Kevlar reinforcement. For indoor installations, Ubiquiti offers alternative fibre cable options without the outdoor protection.
What does the 30-metre pre-terminated length mean?
The cable arrives as a complete 30-metre assembly ready to connect between two network points. No field splicing or termination work is required, saving installation time and reducing the risk of connection errors on site.
Is this cable compatible with EdgePoint and UISP systems?
Yes, the FC-SM-100 is purpose-built for Ubiquiti's EdgePoint and UISP product range. It uses standard LC connectors and single-mode fibre compatible with these systems.
What is insertion loss and why does it matter?
Insertion loss (measured in dB/km) represents the signal weakening as light travels through the fibre. The FC-SM-100's ≤0.5 dB/km specification at both 1310 nm and 1550 nm ensures strong signal integrity over longer distances, critical for reliable network performance.
Why does the cable include Kevlar reinforcement?
Kevlar yarn adds tensile strength to prevent cable breakage during installation, handling, and in environments with vibration or mechanical stress. This is especially important for tower and rooftop deployments where cables may be tensioned or exposed to weather.
What environments is the outdoor jacket designed to protect against?
The outdoor-rated jacket with integrated weatherproof tape protects against UV radiation, moisture, temperature fluctuations, and environmental contaminants. This makes the cable suitable for long-term outdoor exposure without degradation.
