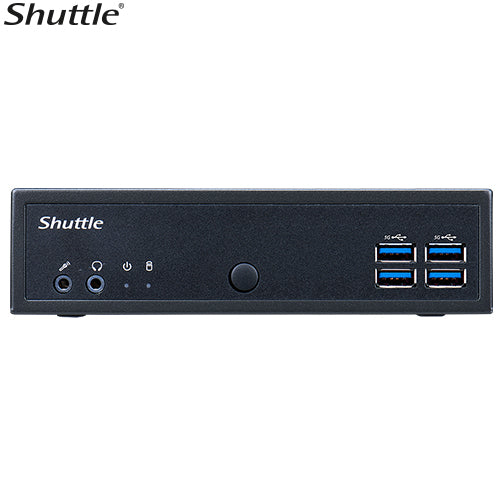

Shuttle DL30N Slim Mini PC Barebone Intel N100
Shuttle DL30N Slim Mini PC Barebone Intel N100
SKU:SYS-DL30N
The Shuttle DL30N is a compact 1.3L slim mini PC barebone featuring Intel N100 processing, fanless design, and multiple display outputs. With dual 2.5GbE LAN, RS232/RS422/RS485 support, and flexible storage options, it delivers reliable performance for kiosks, signage, and edge computing applications.
Couldn't load pickup availability
- See our return policy
- 36 months Manufacturer Warranty
Product Information
| Brand | Shuttle |
|---|---|
| Category | Systems - NUC/SFF/AIO |
| SKU | SYS-DL30N |
| Availability | Out of Stock |
Overview
- The Shuttle DL30N is a purpose-built barebone system designed for space-constrained environments where reliability and connectivity matter. Its 1.3L fanless chassis eliminates moving parts, reducing maintenance and noise—ideal for kiosks, signage, and public-facing installations.
Built around the Intel N100 processor with integrated graphics, the DL30N supports triple independent displays simultaneously via HDMI, DisplayPort, and VGA. This flexibility ensures compatibility with diverse display ecosystems without additional adapters or GPU upgrades.
Industrial-grade serial ports (RS232/RS422/RS485) provide direct integration with legacy equipment and sensors, making it suitable for factory floors, retail systems, and field deployments. Dual 2.5GbE LAN controllers offer redundancy and bandwidth—critical for bandwidth-sensitive applications or failover scenarios.
As a barebone system, the DL30N ships without memory, storage, or operating system, allowing you to configure it to exact requirements and control costs. The 36-month warranty provides peace of mind for mission-critical deployments.
Specifications
| Form Factor | 1.3L slim mini PC |
|---|---|
| Processor | Intel Processor N100 |
| Graphics | Intel HD Graphics engine |
| Memory Type | DDR5 4800MHz SODIMM |
| Memory Maximum | 16GB |
| Storage Interface | SATA for HDD/SSD, M.2 Type M (2280), M.2 Type E (2230) |
| Display Outputs | HDMI 2.0b, DisplayPort, VGA |
| Display Support | Triple independent displays |
| Audio | 2 channels High-Definition Audio |
| LAN Controller | Intel I226-LM Dual LAN |
| LAN Speeds | 10Mb/s, 100Mb/s, 1Gb/s, 2.5Gb/s |
| LAN Features | Wake-on-LAN (WOL) support |
| Serial Ports | RS232, RS422, RS485 |
| Front Panel Ports | USB 3.2 Gen1, MIC-IN, Audio out, Power button, Power LED, HDD LED |
| Rear Panel Ports | USB 3.2 Gen1, DisplayPort, HDMI, DC in, 2.5GbE LAN with LED |
| Power Adapter | 65W |
| Mounting | VESA mount compatible |
| Operating Systems | Windows 11 64-bit, Ubuntu, Linux |
| Warranty | 36 months |
Key Features
Ideal For
FAQs
Does the DL30N come with memory and storage?
No, the DL30N is a barebone system. You'll need to add DDR5 SODIMM memory (up to 16GB), storage (SATA HDD/SSD, or M.2 NVMe), and an operating system. This allows full customisation to your requirements.
Can I connect multiple monitors to the DL30N?
Yes. The DL30N supports three independent displays simultaneously via HDMI 2.0b, DisplayPort, and VGA, making it ideal for multi-display kiosks and control room setups.
What are the serial ports used for?
RS232, RS422, and RS485 ports enable integration with legacy industrial equipment, sensors, barcode scanners, payment terminals, and other serial-based devices common in retail and manufacturing environments.
Is the DL30N fanless, and why does that matter?
Yes, the DL30N is completely fanless. This eliminates noise and moving parts that can fail, making it ideal for customer-facing environments like kiosks and signage, and reducing maintenance in 24/7 operations.
What network redundancy does the dual LAN provide?
The dual 2.5GbE LAN controllers allow simultaneous connections to two networks, enabling failover configurations, load balancing, or dedicated connections for different services without additional network cards.
Can I mount the DL30N on a wall or stand?
Yes, the DL30N includes VESA mounting compatibility, allowing flexible installation on walls, behind displays, or on custom stands for kiosks and signage applications.
What operating systems are supported?
The DL30N supports Windows 11 64-bit, Ubuntu, and Linux, giving you flexibility to choose the OS that best suits your application and security requirements.
What is the warranty coverage?
The DL30N includes a 36-month warranty, providing comprehensive coverage for mission-critical deployments and reducing total cost of ownership.
