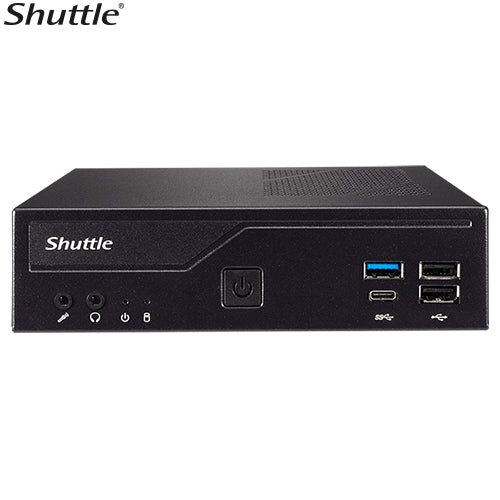

Shuttle DH610 Slim Mini PC 1L Barebone
Shuttle DH610 Slim Mini PC 1L Barebone
SKU:SYS-DH610
The Shuttle DH610 is a 1-litre slim mini PC barebone supporting Intel 12th to 14th generation processors. Featuring dual DDR4-3200 memory support, triple display outputs, dual gigabit networking, and comprehensive I/O connectivity, it delivers reliable performance for office, digital signage, kiosks, and AI applications.
Couldn't load pickup availability
- See our return policy
- 36 months (3 years) Manufacturer Warranty
Product Information
| Brand | Shuttle |
|---|---|
| Category | Systems - NUC/SFF/AIO |
| SKU | SYS-DH610 |
| Availability | In Stock |
Overview
- The Shuttle DH610 is a high-performance 1-litre slim mini PC barebone system designed for space-constrained environments that demand professional-grade computing. It supports the latest Intel 12th through 14th generation processors via the LGA1700 socket, delivering hybrid architecture performance with integrated UHD Graphics capability. The system accommodates up to 64GB of dual-channel DDR4-3200 memory, making it suitable for demanding multi-tasking and application workloads.
The DH610 excels in environments requiring multiple display outputs, supporting three independent displays simultaneously through one HDMI 2.0b port and two DisplayPort connections. Its dual gigabit networking capability—combining Intel 1GbE and Intel 2.5GbE LAN ports—provides flexibility for network teaming and high-bandwidth applications. Wake-on-LAN support enhances remote management capabilities for distributed deployments.
Connectivity is comprehensive, with USB 3.2 Gen1/Gen2 ports, USB 2.0 connectivity, and dual RS232/422/485 serial ports for legacy device integration. The system includes flexible storage options with a 2.5-inch HDD/SSD bay, M.2 2280 NVMe slot (PCIe 4.0 x4/SATA), and M.2 2230 E-Key expansion. VESA bracket mounting is standard, simplifying installation in digital signage, kiosk, and wall-mounted applications.
Backed by a 3-year manufacturer warranty, the Shuttle DH610 delivers reliability and performance for office deployments, digital signage networks, retail kiosks, and emerging AI and edge computing applications.
Specifications
| Processor Support | Intel 12th, 13th, 14th Gen Core i3/i5/i7/i9, Pentium, Celeron (LGA1700, 65W) |
|---|---|
| Chipset | Intel H610 |
| Graphics | Intel UHD Graphics series (integrated) |
| Memory | 2 x DDR4-3200/2933/2666 MHz, maximum 64GB |
| Storage - 2.5 Inch Bay | 1 x 2.5-inch HDD/SSD (maximum 12.5mm height) |
| Storage - M.2 | 1 x M.2 2280 M-Key (PCIe 4.0 x4 or SATA), 1 x M.2 2230 E-Key |
| Storage - SD Card | 1 x SD card slot |
| Video Output | 1 x HDMI 2.0b, 2 x DisplayPort, 1 x VGA (optional) |
| USB Ports | 2 x USB 3.2 Gen1/Gen2 (front), 2 x USB 3.2 Gen1/Gen2 (rear), 4 x USB 2.0 (2 front, 2 rear) |
| Serial Ports | 2 x RS232 (1 x RS232/422/485 supporting 5V/12V logic levels) |
| Audio | 1 x line out/microphone input |
| Network - Ethernet | 1 x Intel 1GbE LAN, 1 x Intel 2.5GbE LAN (Wake-on-LAN and teaming mode supported) |
| Network - WiFi | Optional |
| Form Factor | 1-litre slim mini PC |
| Mounting | VESA bracket included |
| Power Consumption | 120W |
| Warranty | 36 months (3 years) |
Key Features
Ideal For
FAQs
What processors does the Shuttle DH610 support?
The DH610 supports Intel 12th, 13th, and 14th generation processors in the LGA1700 socket, including Core i3, i5, i7, i9, Pentium, and Celeron models with a 65W thermal design power rating.
What is the maximum memory capacity?
The DH610 supports up to 64GB of DDR4-3200 memory across two dual-channel slots, with backward compatibility for DDR4-2933 and DDR4-2666 speeds.
How many displays can the DH610 support?
The DH610 supports three independent displays simultaneously: one HDMI 2.0b port, two DisplayPort connections, and an optional VGA port for legacy display support.
Does the DH610 support network teaming and Wake-on-LAN?
Yes, the dual gigabit LAN ports (1GbE and 2.5GbE) support both network teaming mode for redundancy and Wake-on-LAN for remote power management.
What storage options are available?
The DH610 provides flexible storage: one 2.5-inch HDD/SSD bay (up to 12.5mm height), one M.2 2280 NVMe slot (PCIe 4.0 x4 or SATA), one M.2 2230 E-Key slot, and one SD card reader.
Can the DH610 be mounted on a wall or VESA stand?
Yes, the DH610 includes a VESA bracket as standard, enabling flexible wall-mounting or stand-based installation in digital signage, kiosk, and space-constrained applications.
Does the DH610 come assembled or is it a barebone system?
The DH610 is a barebone system, meaning the chassis, motherboard, and power supply are included, but you will need to install a processor, memory, and storage to complete the system.
What warranty is provided with the Shuttle DH610?
The DH610 is backed by a 3-year manufacturer warranty, providing peace of mind for business deployments.
