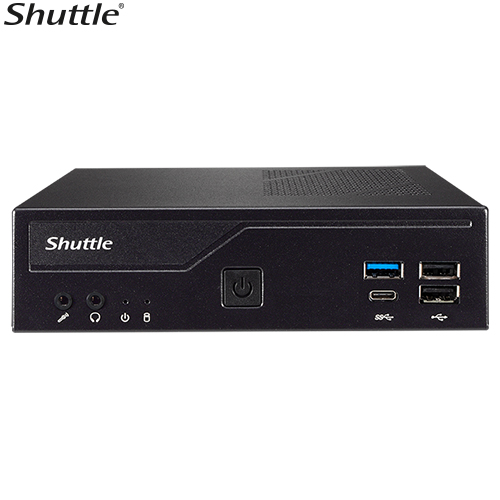

Shuttle DH610 V2 Slim Mini PC Barebone
Shuttle DH610 V2 Slim Mini PC Barebone
SKU:SYS-DH610V2
Couldn't load pickup availability
- See our return policy
- 36 months Manufacturer Warranty
Product Information
| Brand | Shuttle |
|---|---|
| Category | Systems - NUC/SFF/AIO |
| SKU | SYS-DH610V2 |
| Availability | In Stock |
Overview
- The Shuttle DH610 V2 is a space-efficient 1-litre slim mini PC barebone designed for organisations requiring reliable, compact computing without sacrificing performance. Supporting the latest Intel 12th, 13th and 14th Gen processors, this system delivers the processing power needed for demanding workloads whilst maintaining a minimal physical footprint.
Built for deployment flexibility, the DH610 V2 features triple independent display outputs via HDMI 2.0b and two DisplayPort connections, making it ideal for digital signage, kiosks, and multi-screen environments. Dual LAN ports (2.5GbE and 1GbE) with Wake-on-LAN and teaming support provide robust network connectivity for business-critical applications.
The system supports up to 96GB of DDR5 memory and offers flexible storage options including a 2.5'' bay and two M.2 slots, ensuring sufficient capacity for most enterprise deployments. Legacy connectivity is maintained through two RS232 serial ports, essential for integration with older industrial and retail systems.
With 3-year warranty coverage and VESA bracket included, the DH610 V2 is ready to integrate into existing infrastructure with minimal additional investment.
Specifications
| Processor Support | Intel 12th/13th/14th Gen LGA1700 socket; Core i3/i5/i7/i9, Pentium, Celeron (65W) |
|---|---|
| Chipset | Intel H610 |
| Graphics | Intel UHD Graphics series (integrated) |
| Memory | 2 x DDR5 DIMM slots, max. 96GB |
| Storage - Primary | 1 x 2.5'' HDD/SSD bay (max. 12.5mm height) |
| Storage - M.2 | 1 x M.2 2280 slot (PCIe 4.0 x4 / SATA), 1 x M.2 2230 slot (E Key) |
| Storage - Card | 1 x SD card slot |
| Display Outputs | 1 x HDMI 2.0b, 2 x DisplayPort, 1 x VGA (optional) |
| Network - Ethernet | 1 x Intel 1GbE LAN, 1 x Intel 2.5GbE LAN (Wake-on-LAN, teaming support) |
| Network - WiFi | Optional |
| USB Ports | 2 x USB 3.2 Gen1/Gen2 (front), 2 x USB 3.2 Gen1/Gen2 (rear), 4 x USB 2.0 (2 front, 2 rear) |
| Serial Ports | 2 x RS232, 1 x RS232/422/485 (5V/12V support) |
| Audio | 1 x line out, 1 x mic in |
| Power Supply | 120W |
| Form Factor | 1-litre slim mini PC |
| Included Accessories | VESA mounting bracket |
| Warranty | 36 months |
Key Features
Ideal For
FAQs
What processors does the Shuttle DH610 V2 support?
The DH610 V2 supports Intel 12th, 13th and 14th Gen Core processors (i3, i5, i7, i9), as well as Pentium and Celeron models via the LGA1700 socket. All supported processors are 65W TDP.
How much memory can the DH610 V2 accommodate?
The system features two DDR5 DIMM slots with a maximum capacity of 96GB total memory.
Can the DH610 V2 support multiple displays?
Yes. The DH610 V2 supports three independent displays simultaneously via one HDMI 2.0b port and two DisplayPort connectors, making it ideal for multi-screen applications like digital signage and kiosks.
What are the storage options available?
The DH610 V2 offers flexible storage: one 2.5'' HDD/SSD bay, one M.2 2280 slot (PCIe 4.0 x4 or SATA), one M.2 2230 slot (E Key), and one SD card slot.
Does the DH610 V2 have legacy connectivity for older systems?
Yes. The system includes two RS232 serial ports and one RS232/422/485 combo port with 5V/12V support, allowing integration with legacy industrial and retail equipment.
What is the warranty period for the DH610 V2?
The Shuttle DH610 V2 comes with a 36-month (3-year) manufacturer warranty.
Is the DH610 V2 suitable for kiosk and digital signage applications?
Yes. The compact 1-litre form factor, triple display support, multiple I/O options and reliable performance make it well-suited for kiosks, digital signage, point-of-sale systems and similar deployments.
Does the system include network features for enterprise deployment?
Yes. The DH610 V2 features dual LAN ports (1GbE and 2.5GbE) with Wake-on-LAN and network teaming support, plus optional WiFi, suitable for business-critical networked applications.
