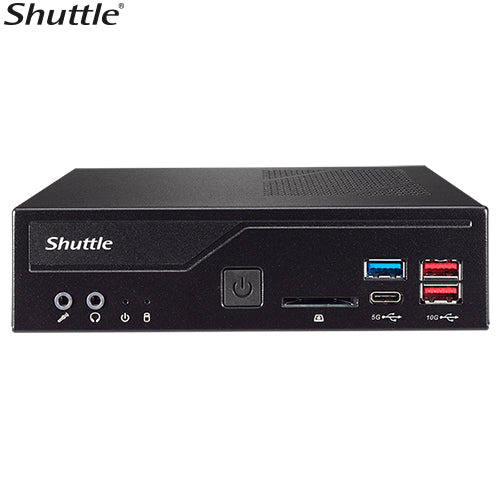

Shuttle DH670 Slim Mini PC Barebone Intel 12th Gen
Shuttle DH670 Slim Mini PC Barebone Intel 12th Gen
SKU:SYS-DH670
The Shuttle DH670 is a compact 1.3L barebone mini PC designed for enterprise kiosks, digital signage, and space-constrained environments. Featuring Intel 12th/13th Gen processor support, dual 2.5GbE LAN, quad video outputs, and industrial I/O connectivity, it delivers reliable performance for demanding business applications.
Couldn't load pickup availability
- See our return policy
- 36 months Manufacturer Warranty
Product Information
| Brand | Shuttle |
|---|---|
| Category | Systems - NUC/SFF/AIO |
| SKU | SYS-DH670 |
| Availability | Out of Stock |
Overview
- The Shuttle DH670 is a barebone mini PC built for demanding commercial environments where space is limited and reliability is critical. Its 1.3L form factor fits seamlessly into kiosks, mounting arms, and wall-mounted installations without compromising performance or connectivity.
With support for Intel's latest 12th and 13th generation processors, the DH670 delivers sufficient compute power for real-time video playback, multi-display management, and database-driven applications. The quad video output configuration (2x HDMI, 2x DisplayPort) makes it ideal for organisations deploying digital signage or command-centre monitoring across multiple screens.
Connectivity is a standout feature. Dual 2.5GbE LAN ports enable robust network performance, whilst industrial-grade serial interfaces (RS232, RS422/RS485) ensure compatibility with legacy equipment and specialised control systems. Support for Windows 10/11 and Linux provides flexibility across different operational environments.
The 36-month warranty and energy-efficient 120W power adapter round out a package designed for long-term, low-maintenance deployment in commercial and industrial settings.
Specifications
| Brand | Shuttle |
|---|---|
| Model | DH670 |
| Product Type | Slim Mini PC Barebone |
| Form Factor | 1.3L chassis |
| Dimensions | 190(L) x 165(W) x 43(H) mm |
| Processor Socket | Intel LGA1700 |
| Supported Processors | Intel 12th/13th Gen Core i3/i5/i7/i9, Pentium, Celeron (65W) |
| Chipset | Intel H670 Express |
| Memory Slots | 2x DDR4 SODIMM |
| Maximum Memory | 64GB (32GB per DIMM) |
| Memory Speed | DDR4 up to 3200 MHz |
| Storage Interface | SATA 6.0 Gb/s |
| Storage Bays | 1x 2.5" HDD/SSD bay |
| M.2 Expansion | 1x M.2 2280 Type M key, 1x M.2 2230 Type E key |
| LAN Ports | 2x Intel 2.5GbE (DH670 V2) / 2x Intel Gigabit (DH670) |
| LAN Speed | 10/100/1000 Mb/s |
| Wake-on-LAN | Supported |
| Video Outputs | 2x HDMI 2.0, 2x DisplayPort |
| Video Support | 4K playback (Dual Channel Memory recommended) |
| Video Architecture | Integrated in CPU |
| Audio | Realtek ALC662/897/888S High Definition Audio |
| Front USB Ports | 2x USB 3.2 Gen1, 2x USB 3.2 Gen2 |
| Rear USB Ports | 2x USB 3.2 Gen1, 2x USB 3.2 Gen2 |
| Serial Ports | 1x RS232, 1x RS232/RS422/RS485 |
| Audio Connectors | 1x Microphone-in, 1x Line-out |
| Front Panel | Power-On button, Power LED, HD LED |
| Internal Headers | 1x 4-pin fan, 1x VGA, 1x USB header, 1x SATA with power, 1x Front audio, 1x Auto power-on, 1x RS232 voltage switch |
| Expansion Slots | M.2 slots as listed above |
| External Connectors | 1x 4-pin external header, 1x Kensington lock, 2x Wireless antenna fixtures |
| Power Supply | 120W external adapter |
| Power Input | 100–240V AC, 19V 6.32A |
| Operating Systems | Windows 10/11 64-bit, Linux |
| BIOS Version | v2.05 and updated versions (Raptor Lake support) |
| Warranty | 36 months |
| Included Accessories | VESA mount, VESA screw pack, 120W power adapter |
Key Features
Ideal For
FAQs
What processors does the Shuttle DH670 support?
The DH670 supports Intel 12th and 13th generation processors (Raptor Lake and Alder Lake) using the LGA1700 socket, including Core i3, i5, i7, i9, Pentium, and Celeron models rated at 65W. BIOS v2.05 and later versions are required for 13th Gen (Raptor Lake) CPU support.
What is the maximum RAM capacity and type?
The DH670 features 2x DDR4 SODIMM slots supporting up to 64GB total (32GB per DIMM) at speeds up to 3200 MHz. For optimal 4K video playback, dual-channel memory configuration is recommended.
Can the DH670 handle multi-display setups?
Yes. The DH670 provides quad video outputs: 2x HDMI 2.0 and 2x DisplayPort, enabling multi-display configurations. It supports 4K playback with integrated CPU graphics.
What serial connectivity options are available?
The DH670 includes 2x RS232 ports and 1x RS232/RS422/RS485 combo port, providing comprehensive serial connectivity for legacy industrial equipment and control systems.
What network connectivity does the DH670 offer?
The DH670 features 2x Intel 2.5GbE LAN ports (DH670 V2) or 2x Intel Gigabit LAN ports (DH670), both supporting 10/100/1000 Mb/s and Wake-on-LAN functionality.
Is the DH670 suitable for kiosk and digital signage applications?
Yes. The compact 1.3L form factor, VESA mount compatibility, quad video outputs, and industrial-grade connectivity make it ideal for kiosks, digital signage, and command-centre deployments.
What storage expansion options are available?
The DH670 includes 1x 2.5" HDD/SSD bay and dual M.2 sockets: one M.2 2280 Type M key (NVMe) and one M.2 2230 Type E key (typically for Wi-Fi modules).
What operating systems are supported?
The DH670 supports Windows 10/11 64-bit and Linux operating systems, providing flexibility for various enterprise and embedded applications.
