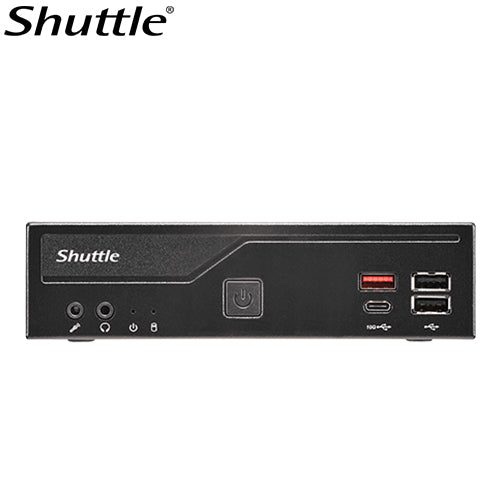

Shuttle DH810 Slim Mini PC Intel Core Ultra 200
Shuttle DH810 Slim Mini PC Intel Core Ultra 200
SKU:SYS-DH810
The Shuttle DH810 is a compact 1.3L mini PC designed for commercial applications, digital signage, and AI workloads. Featuring Intel Core Ultra 200 processors, up to 96GB DDR5 RAM, dual LAN connectivity, and triple video outputs supporting 4K and 8K resolution, it delivers powerful performance in a space-efficient form factor.
Couldn't load pickup availability
- See our return policy
- 36 months Manufacturer Warranty
Product Information
| Brand | Shuttle |
|---|---|
| Category | Systems - NUC/SFF/AIO |
| SKU | SYS-DH810 |
| Availability | In Stock |
Overview
- The Shuttle DH810 is a robust 1.3L mini PC that combines powerful Intel Core Ultra 200 series processing with enterprise-grade connectivity in a space-efficient design. Its support for up to 96GB DDR5 RAM, integrated Intel Graphics, and triple independent video outputs make it ideal for commercial applications including digital signage, Pro AV systems, and AI-driven workloads.
Built for reliability, the DH810 features Shuttle's exclusive heat pipe cooling technology for stable 24/7 operation in environments ranging from 0°C to 50°C. Dual LAN ports (2.5GbE and 1GbE) with Wake-on-LAN functionality, dual RS232/RS422/RS485 serial ports, and comprehensive USB connectivity provide flexible integration into existing infrastructure.
The compact form factor supports VESA 75x75 and 100x100 mounting standards, enabling seamless installation on walls or behind displays. With support for Windows 11 and Linux, one M.2 2280 NVMe slot, and one M.2 2230 slot for wireless modules, the DH810 delivers enterprise-class performance and expandability in a minimal footprint.
Specifications
| Brand | Shuttle |
|---|---|
| Model | DH810 |
| Product Type | Slim Mini PC |
| Form Factor | 1.3L chassis |
| Dimensions | 190(L) x 165(W) x 43(H) mm |
| Net Weight | 1.32 kg |
| Processor | Intel Core Ultra 200 series LGA1851, up to 24 cores (8 Performance + 16 Efficient), TDP up to 65W |
| Chipset | Intel H810 Express |
| Memory Slots | 2 x DDR5 SODIMM |
| Memory Speed | DDR5-5600MHz dual-channel |
| Maximum Memory | 96GB (48GB per DIMM) |
| Storage Interface 1 | 1 x M.2 2280 Type M key socket (PCIe Gen 4x4 or SATA 6Gb/s) |
| Storage Interface 2 | 1 x M.2 2230 Type E key socket (PCIe Gen 3x1, USB2.0, Intel CNVi or WLAN module) |
| Drive Bays | 1 x 2.5-inch HDD/SSD bay |
| RAID Support | SATA RAID 0, 1 |
| Video Output 1 | 1 x HDMI 2.1 (TMDS) |
| Video Output 2 | 2 x DisplayPort (including 1 form USB 4.0 port) |
| Video Resolution Support | 4K playback (dual-channel memory recommended), 8K via HDMI |
| Graphics | Integrated Intel Graphics in CPU |
| Audio | Realtek ALC888S High Definition Audio |
| LAN Port 1 | 1 x Intel 2.5GbE LAN with LED |
| LAN Port 2 | 1 x Intel 1GbE LAN with LED (10/100/1000 Mb/s) |
| LAN Features | Wake-on-LAN (WOL) support |
| Front USB Ports | 2 x USB 3.2 Gen2 (including 1 Type-C), 2 x USB 2.0 |
| Back USB Ports | 2 x USB 3.2 Gen1, 2 x USB 3.2 Gen2, 1 x USB 4.0 (20G Type-C with DP) |
| Serial Ports | 1 x RS232, 1 x RS232/RS422/RS485 (configurable 0/5/12V output) |
| Audio Connectors | 1 x Microphone-In, 1 x Line-Out |
| Front Panel | Power button, Power LED, HDD LED |
| Onboard Connectors | 1 x 4-pin fan, 1 x VGA, 1 x 1x4 USB header, 1 x SATA connector with power, 1 x front audio header, 1 x auto power-on header, 1 x RS232 voltage switch |
| Power Supply | 120W external adapter (100-240V AC input, 19V 6.32A output) |
| VESA Mounting | Supports 75x75 and 100x100 VESA standards |
| Security | Kensington lock slot |
| Operating Temperature | 0°C to 50°C |
| Cooling | Shuttle heat pipe cooling technology |
| BIOS Features | Wake-on-LAN, Power-On After Power Failure, RTC Power-on, Watchdog, Auto Power-on |
| Operating System Support | Windows 11 64-bit, Linux |
| Included Accessories | XPC Multilanguage Quick User Guide, XPC DVD Driver, VESA mount, VESA screw pack, power cord, thermal grease, HDD screw pack, 120W adapter |
| Warranty | 36 months |
Key Features
Ideal For
FAQs
What is the maximum RAM capacity of the Shuttle DH810?
The DH810 supports up to 96GB of DDR5-5600MHz RAM via two SODIMM slots (48GB per slot) in dual-channel configuration.
How many displays can the DH810 support?
The DH810 provides triple independent video outputs: one HDMI 2.1 port, two DisplayPort connections (including one via USB 4.0), enabling simultaneous multi-display configurations. It supports 4K playback and 8K resolution via HDMI.
What serial port options are available?
The DH810 features two RS232 ports: one standard RS232 and one RS232/RS422/RS485 port with configurable 0/5/12V output settings, ideal for industrial and legacy system integration.
Is the DH810 suitable for 24/7 continuous operation?
Yes. The DH810 is designed for continuous operation with Shuttle's exclusive heat pipe cooling technology, ensuring stable performance in environments ranging from 0°C to 50°C, making it ideal for mission-critical applications.
How is the DH810 mounted in installations?
The DH810 supports VESA 75x75 and 100x100 mounting standards, allowing flexible installation on walls or behind displays. It includes a VESA mount and screw pack in the box.
What storage options are available?
The DH810 offers one 2.5-inch HDD/SSD bay, one M.2 2280 NVMe slot (PCIe Gen 4x4 or SATA), and one M.2 2230 slot for wireless modules. It supports SATA RAID 0 and 1 configurations.
What operating systems does the DH810 support?
The DH810 supports Windows 11 64-bit and Linux operating systems.
What is the warranty period for the Shuttle DH810?
The Shuttle DH810 includes a 36-month manufacturer warranty covering parts and labour.
