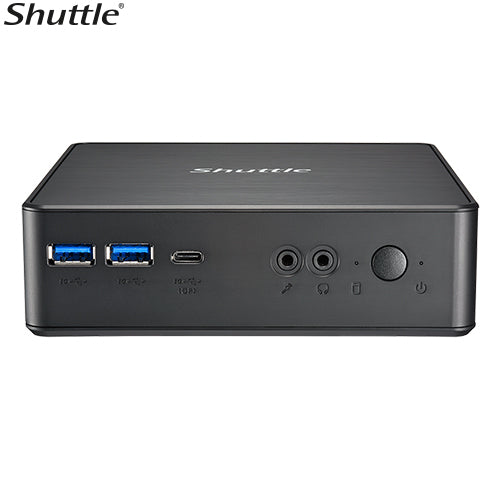

Shuttle NC40U Slim Mini PC Barebone System
Shuttle NC40U Slim Mini PC Barebone System
SKU:SYS-NC40U
Couldn't load pickup availability
- See our return policy
- 36 months Manufacturer Warranty
Product Information
| Brand | Shuttle |
|---|---|
| Category | Systems - NUC/SFF/AIO |
| SKU | SYS-NC40U |
| Availability | In Stock |
Overview
- The Shuttle NC40U is an ultra-compact barebone mini PC that combines performance with minimal footprint. Built on the Intel 12th Gen Alder Lake-U platform, it delivers efficient processing power for business-critical applications whilst consuming just 65 watts. Despite its palm-sized 0.85L design, the NC40U accommodates extensive expansion options, including up to 64GB of DDR4 memory, a 2.5-inch storage drive, and dual M.2 NVMe slots for flexibility.
Designed specifically for deployments requiring small physical footprint with robust functionality, the NC40U excels in kiosk, digital signage, and edge computing scenarios. Its triple display capability through HDMI, DisplayPort, and USB-C enables versatile multi-monitor setups. The system includes comprehensive I/O with USB 3.2 Gen2 connectivity, Gigabit Ethernet, and a Kensington security lock for professional environments.
Built-in VESA mounting and included foot stand provide flexible installation options for various deployment scenarios. The system supports both Windows 11 and Linux, ensuring compatibility with enterprise and open-source environments. With a 36-month warranty and proven Shuttle build quality, the NC40U is a reliable choice for organisations seeking dependable compact computing solutions.
Specifications
| Processor | Intel 12th Gen Celeron 7305 15W |
|---|---|
| Graphics | Intel Iris Xe Graphics |
| Memory | 2 x DDR4 SODIMM (up to 64GB total, 3200MHz) |
| Storage Interfaces | 2.5-inch SATA HDD/SSD bay, M.2 2230 E Key, M.2 2280 M Key (PCIe Gen3 x4 / SATA), M.2 2280 M Key (PCIe Gen4 x4) |
| Video Output | HDMI, DisplayPort, USB-C with DP |
| Audio | C-Media CM6542 |
| Networking | Intel I219 Gigabit Ethernet (10/100/1000 Mbps) |
| USB Ports | 2x USB 3.2 Gen1 Type-A (front), 1x USB 3.2 Gen1 Type-C with DP (front), 2x USB 3.2 Gen1 Type-A (rear), 2x USB 3.2 Gen2 Type-A (rear) |
| Power | 65W (19V/3.42A) |
| Dimensions | 142(L) x 142(W) x 42(H) mm |
| Form Factor | 0.85L compact barebone |
| Operating Temperature | 0°C to 50°C |
| Security | Kensington Lock |
| Operating Systems | Windows 11, Linux |
| Warranty | 36 months |
| Accessories Included | VESA mount, foot stand, power adapter and cable, quick guide, driver DVD, screw pack |
Key Features
Ideal For
FAQs
Is the Shuttle NC40U a complete system or barebone?
The NC40U is a barebone system, meaning it does not include RAM, storage drives, or an operating system. You will need to install DDR4 memory modules and at least one storage drive (2.5-inch SATA or M.2 NVMe) to complete the system.
What is the maximum memory capacity?
The NC40U supports up to 64GB of DDR4 memory via two 260-pin SODIMM slots, with speeds up to 3200MHz operating in dual-channel configuration.
Can I use multiple storage drives?
Yes. The system includes one 2.5-inch SATA bay (up to 15mm height) and two M.2 slots: one M.2 2230 E Key slot and two M.2 2280 slots supporting both PCIe Gen3 and Gen4 NVMe drives.
How many displays can the NC40U support?
The NC40U supports triple displays simultaneously via HDMI, DisplayPort, and USB-C with DisplayPort alt mode, enabling flexible multi-monitor configurations.
What mounting options are available?
The NC40U includes a VESA mount for wall or monitor-arm mounting, plus a foot stand for desktop placement. This provides flexible deployment options for kiosks, signage, and other fixed installations.
Is the NC40U suitable for 24/7 operation?
Yes. With a 65-watt power envelope and operating temperature range of 0°C to 50°C, the NC40U is designed for continuous operation in controlled environments typical of kiosks and digital signage applications.
Does the NC40U support both Windows and Linux?
Yes. The system officially supports both Windows 11 and Linux, providing flexibility for different deployment and software requirements.
What warranty is included?
The Shuttle NC40U comes with a standard 36-month warranty covering manufacturing defects and hardware faults.
