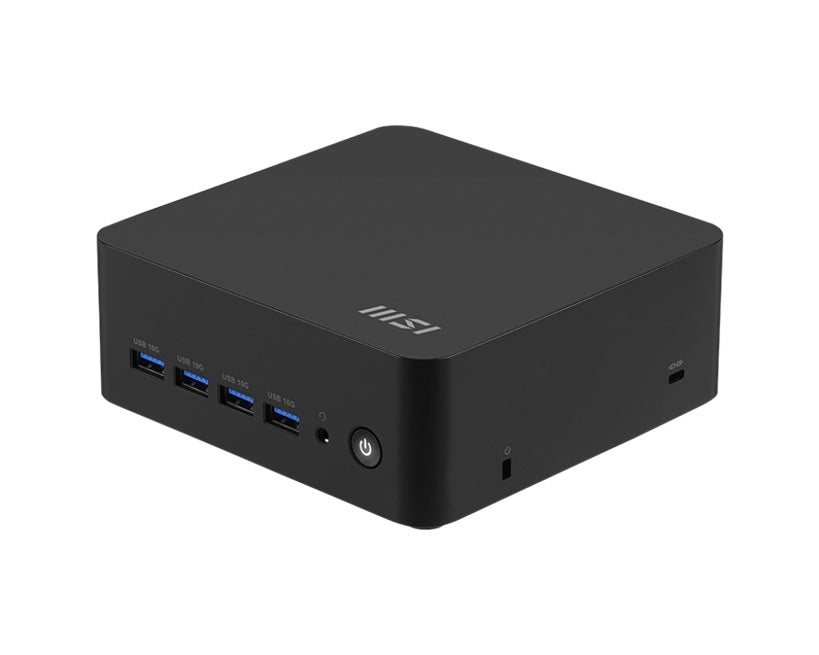

MSI Cubi Z AI 8M Ryzen 5 Small Form Factor PC
MSI Cubi Z AI 8M Ryzen 5 Small Form Factor PC
SKU:SYM-CUBIZAI8M-007BAP
Couldn't load pickup availability
- See our return policy
- 36 months Manufacturer Warranty
Product Information
| Brand | MSI |
|---|---|
| Category | Systems - NUC/SFF/AIO |
| SKU | SYM-CUBIZAI8M-007BAP |
| Availability | In Stock |
Overview
- The MSI Cubi Z AI 8M is a powerful yet compact small form factor PC designed for modern business and creative workloads. Built around the AMD Ryzen 5 8645HS with integrated NPU, it delivers efficient AI processing alongside traditional computing tasks, making it ideal for organisations embracing artificial intelligence without significant infrastructure investment.
With support for up to four simultaneous displays, dual 2.5G network connections, and Wi-Fi 6E, the Cubi Z AI 8M provides the connectivity and visual output needed for complex workflows—from financial analysis to multi-client video conferencing. The integrated dTPM 2.0 ensures enterprise-grade security for sensitive data.
Its ultra-compact 136 x 132 x 50mm design and VESA mounting capability make it perfect for space-constrained environments such as reception areas, trading floors, or mounting behind displays. At just 0.79kg, it's highly portable while maintaining professional performance and reliability.
Specifications
| Processor | AMD Ryzen 5 8645HS |
|---|---|
| Chipset | AMD SoC |
| Graphics | AMD Radeon Graphics (Integrated) |
| Memory | 2x DDR5 5600 SO-DIMMs, up to 64GB |
| Storage | 1x M.2 2280 SSD (NVMe PCIe Gen4 x4) |
| Operating System | Windows 11 Home or Windows 11 Pro |
| Display Outputs | 2x HDMI 2.1 (4K@60Hz), 2x USB4 Type-C with DP 1.4 (4K@60Hz) |
| USB Ports (Front) | 4x USB 10Gbps Type-A, 1x 3.5mm Mic-in/Headphone-out |
| USB Ports (Rear) | 2x USB4 Type-C (40Gbps, DP 1.4 alt-mode, PD support up to 100W), 1x USB 10Gbps Type-A, 1x USB 2.0 Type-A |
| Networking | 2x Realtek RTL8125BG (2.5G LAN) |
| Wireless | AMD RZ616 Wi-Fi 6E, Bluetooth 5.3 |
| Security | dTPM 2.0 |
| Audio | Built-in Speaker |
| Card Reader | Yes |
| Additional I/O | 1x Kensington Lock, 1x External Power Switch Pin Header |
| Power Supply | 120W AC Adapter |
| Dimensions | 136 x 132 x 50.1mm (5.35 x 5.20 x 1.97 inches) |
| Weight | 0.79kg (1.74 lbs) without packaging, 2.02kg (4.45 lbs) with packaging |
| VESA Mounting | Yes |
| Certifications | FCC, CB/CE, UL & CUL, VCCI, RCM |
| Warranty | 36 months |
Key Features
Ideal For
FAQs
What is the NPU and why does it matter?
The NPU (Neural Processing Unit) is a dedicated hardware component optimised for AI workloads. It enables efficient AI processing with lower power consumption and reduced latency compared to traditional CPU-only systems, making it ideal for businesses deploying AI applications.
How many monitors can the Cubi Z AI 8M support?
The system supports up to four simultaneous displays via 2x HDMI 2.1 ports and 2x USB4 Type-C ports with DisplayPort 1.4 alt-mode, each capable of 4K@60Hz resolution.
What is the maximum memory capacity?
The Cubi Z AI 8M supports up to 64GB of DDR5 5600 memory using two SO-DIMM slots, allowing for future upgrades as your workload demands increase.
Is this suitable for business deployment?
Yes. The system includes Windows 11 Pro option (recommended by MSI for business), dTPM 2.0 security, dual 2.5G LAN for network redundancy, and extensive connectivity options, making it suitable for corporate and small business environments.
Can it be mounted on a wall?
Yes, the Cubi Z AI 8M features a VESA-compliant mounting design, allowing it to be mounted directly on walls or behind displays for a clean, space-saving installation.
What are the networking options?
The system includes dual 2.5G LAN ports for wired connectivity, plus Wi-Fi 6E and Bluetooth 5.3 for wireless connectivity, providing flexible networking options for office and remote environments.
How much power does it consume?
The system is powered by a 120W AC adapter, delivering efficient performance with low power consumption typical of modern mobile-class processors.
What storage options are available?
The Cubi Z AI 8M comes with one M.2 2280 NVMe PCIe Gen4 x4 slot. You can upgrade or replace the storage drive as needed, and the system supports fast data transfers via the high-speed USB4 ports.
