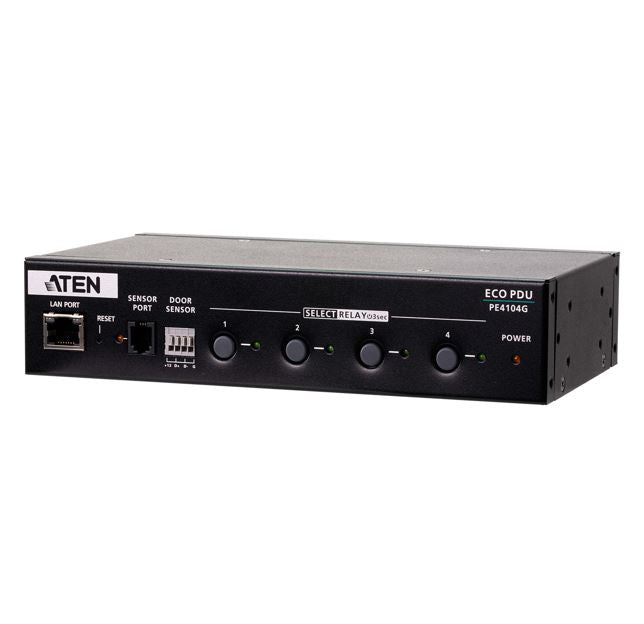

Aten PE4104G 4-Port 1U Smart PDU with Outlet Control
Aten PE4104G 4-Port 1U Smart PDU with Outlet Control
SKU:KVA-PE4104G-AT-G
The Aten PE4104G is a compact 4-port 1U Smart PDU designed for intelligent power management in data centres, retail, and hospitality environments. Featuring remote outlet control, two-level password security, and RADIUS authentication, it delivers secure, centralised power management for IT professionals.
Couldn't load pickup availability
- See our return policy
- 24 Manufacturer Warranty
Product Information
| Brand | Aten |
|---|---|
| Category | Data Racks & Accessories |
| SKU | KVA-PE4104G-AT-G |
| Availability | In Stock |
Overview
- The Aten PE4104G is an intelligent power distribution unit engineered for secure, remote management of IT equipment in modern data centres and distributed environments. Its compact 1U design fits easily into standard racks or desktop installations, making it ideal for space-constrained deployments.
With four independently controllable IEC C13 outlets, administrators can switch power on/off or set delay times for individual outlets or groups from any location via TCP/IP. The built-in power sequence design prevents dangerous power inrush conditions, protecting connected equipment and ensuring system stability.
Security is built-in with two-level password protection and RADIUS authentication support for enterprises requiring compliance and accountability. Integration with Aten's Eco DC software provides a centralised management interface, allowing administrators to monitor and control multiple PDUs from a single intuitive dashboard.
Ideal for data centres, retail digital signage networks, hospitality installations, and edge computing deployments where reliable, remote power management is essential but continuous operation is not required.
Specifications
| brand | Aten |
|---|---|
| model | PE4104G |
| product_type | Smart PDU (Power Distribution Unit) |
| form_factor | 1U rackmount / desk mount |
| number_of_outlets | 4 |
| outlet_type | IEC C13 |
| input_voltage | 100–240 VAC |
| rated_current | 10A |
| management_interface | TCP/IP (remote control) |
| authentication | Two-level password security, RADIUS support |
| power_control_features | Individual outlet on/off, outlet groups, delay timer |
| power_sequencing | Yes (inrush current protection) |
| software_compatibility | Eco DC software |
| warranty_months | 24 |
| installation_options | Rackmount or desk mount |
Key Features
Ideal For
FAQs
Can I control the PE4104G remotely?
Yes. The PE4104G supports remote power management via TCP/IP connection. You can switch outlets on/off, set delay timers, and control outlet groups from any location with network access.
What is RADIUS authentication and why does it matter?
RADIUS is a network protocol that centralises user authentication. The PE4104G supports RADIUS, allowing enterprises to integrate PDU access with existing directory services (such as Active Directory) for better security and user accountability.
What is power sequencing and why is it important?
Power sequencing delays the power-on of each outlet by a few seconds to prevent a dangerous inrush current spike when multiple devices boot simultaneously. This protects equipment and system stability.
Can I manage multiple PE4104G units from one interface?
Yes. The Aten Eco DC software provides a centralised graphical interface for managing multiple PDUs, allowing you to configure, monitor, and control devices across your entire infrastructure.
Is the PE4104G suitable for small server rooms or data centres?
Yes. The compact 1U form factor and four outlets make it ideal for small to medium deployments. It works well in confined spaces and supports both rackmount and desk mount installation.
What outlets does the PE4104G have?
The PE4104G features 4 IEC C13 power outlets, which are standard on most data centre equipment including servers, switches, and UPS systems.
What is the warranty period?
The Aten PE4104G includes a 24-month manufacturer warranty covering defects in materials and workmanship.
