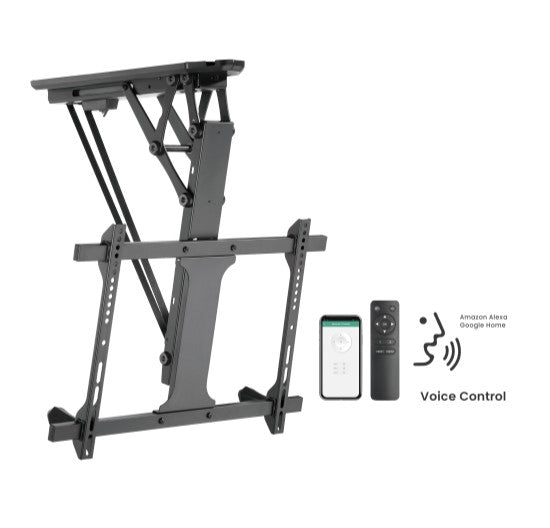

Brateck PLB-M0546AI Smart Flip Down TV Ceiling Mount
Brateck PLB-M0546AI Smart Flip Down TV Ceiling Mount
SKU:MABT-PLB-M0546AI
The Brateck PLB-M0546AI is a motorised flip-down TV ceiling mount powered by Tuya smart control. Supporting 32–70 inch TVs with a 35 kg weight capacity, it features app and voice control, automatic levelling, and a space-saving design for professional and commercial installations.
Couldn't load pickup availability
- See our return policy
- 60 months Manufacturer Warranty
Product Information
| Brand | Brateck |
|---|---|
| Category | Monitor Arms (VESA) |
| SKU | MABT-PLB-M0546AI |
| Availability | In Stock |
Overview
- The Brateck PLB-M0546AI is a motorised ceiling mount that brings smart control and space-saving functionality to large-screen TV installations. The flip-down design allows the TV to be stored out of sight when not in use, freeing up valuable ceiling and wall space in busy commercial and corporate environments.
Powered by Tuya connectivity, the mount offers multiple control options including dedicated app control and voice command integration, eliminating the need for traditional RF remotes whilst maintaining that functionality as a backup. The motorised system includes automatic levelling adjustments to ensure the display is perfectly positioned every time, while the generous tilt range (0–75 degrees) accommodates a variety of viewing heights and distances.
Built with reinforced steel construction and tested for durability, the mount safely supports TVs from 32 to 70 inches weighing up to 35 kg. Its broad VESA compatibility covers most modern displays, and integrated cable management keeps installation clean and professional.
Specifications
| Product Type | Motorised TV Ceiling Mount |
|---|---|
| Brand | Brateck |
| Model | PLB-M0546AI |
| Colour | Matte Black |
| Screen Size Compatibility | 32–70 inches |
| Curved TV Compatible | Yes |
| VESA Patterns Supported | 200x100, 200x200, 300x200, 200x400, 400x200, 300x300, 400x300, 400x400, 600x400 |
| Maximum VESA | 600x400 |
| Weight Capacity | 35 kg (77 lbs) |
| Tilt Range | 0 to −75 degrees |
| Level Adjustment | +2 to −2 degrees |
| Mount Profile | 108 mm (4.3 inches) |
| Mounting Type | Ceiling mounted |
| Panel Type | Detachable |
| Wall Plate | Fixed |
| Construction Material | Steel, plastic |
| Sheet Thickness | 2 mm cold-rolled steel (bracket arm, VESA panel, wall plate) |
| Surface Finish | Powder coating |
| Dimensions | 725 × 664 × 516 mm (28.5 × 26.1 × 20.3 inches) |
| Cable Management | Yes |
| Power Supply | AC 100–240 V, 50/60 Hz; DC 24 V, 1.5 A output |
| Power Cord Length | 1.5 m (4.9 feet) |
| Controller Type | Tuya app control, RF remote |
| Smart Features | Voice control, app control |
| Certifications | CE, FCC, RoHS |
| Warranty | 60 months |
| Strength Testing | 3 times approved |
Key Features
Ideal For
FAQs
What screen sizes does the Brateck PLB-M0546AI support?
The mount supports TVs ranging from 32 to 70 inches. It is compatible with both flat and curved screens weighing up to 35 kg.
How do I control the TV position?
The mount offers three control options: Tuya app control via smartphone, voice commands (compatible with major smart home systems), and a traditional RF remote as backup.
Is the mount compatible with my TV's VESA pattern?
The PLB-M0546AI supports a wide range of VESA patterns from 200x100 up to 600x400. Check your TV's VESA specification against the supported patterns listed in the technical specifications. Most modern TVs in the 32–70 inch range will be compatible.
Can the mount hold curved TVs?
Yes, the mount is specifically designed to accommodate curved TVs and includes automatic levelling adjustments to ensure proper alignment.
What is the tilt range?
The mount offers a tilt range of 0 to −75 degrees, allowing you to adjust the viewing angle from horizontal to nearly vertical for optimal sightlines.
Is installation support available?
Hyetech Australia can assist with installation enquiries. Contact our sales team for professional installation options and local support.
What certifications does this mount hold?
The Brateck PLB-M0546AI is certified to CE, FCC, and RoHS standards, ensuring compliance with safety and environmental requirements.
How does the flip-down design work?
The motorised flip-down mechanism allows the TV to be lowered from the ceiling when needed and raised back up when not in use, saving space and improving aesthetics in commercial and office environments.
