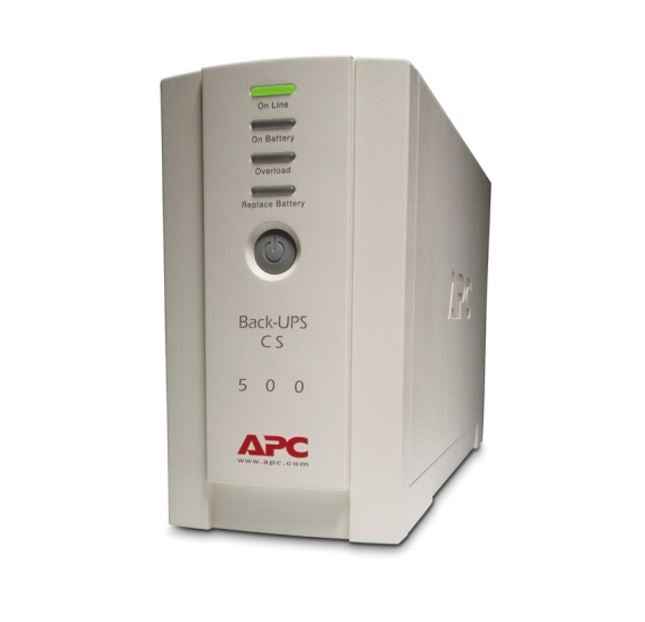

APC Back-UPS 500VA/300W Standby UPS Tower
APC Back-UPS 500VA/300W Standby UPS Tower
SKU:UPAPCBK500EI
The APC Back-UPS BK500EI is a 500VA/300W standby UPS designed to protect office systems from power surges, spikes and blackouts. Featuring user-replaceable batteries, four IEC C13 outlets and data line protection, it delivers reliable backup power for small to medium office environments.
Couldn't load pickup availability
- See our return policy
- 24 months Manufacturer Warranty
Product Information
| Brand | APC |
|---|---|
| Category | UPS & Power Board |
| SKU | UPAPCBK500EI |
| Availability | In Stock |
Overview
- The APC Back-UPS BK500EI is a practical standby UPS solution for protecting critical office equipment from unexpected power interruptions. With 500VA capacity and a fast 6ms transfer time, it seamlessly switches to battery power during mains failure, keeping systems running and preventing data loss.
Designed for small to medium office deployments, the BK500EI features four IEC C13 outlets and integrated data line protection for telephone and modem connections. The user-replaceable battery design reduces maintenance costs and downtime, while automatic voltage regulation handles input fluctuations between 160V and 300V.
The unit operates silently at 40 dBA and fits comfortably in standard office spaces. Built-in protection against power surges, spikes and blackouts makes it an essential addition to any business relying on continuous system availability.
Specifications
| Power Capacity | 500VA / 300W |
|---|---|
| UPS Type | Standby |
| Input Voltage | 230V |
| Input Voltage Range | 160–300V (adjustable) |
| Input Frequency | 47–63Hz (50/60Hz ±3Hz auto-sensing) |
| Output Voltage | 230V |
| Output Frequency | 47–63Hz (sync to mains); 50/60Hz ±1Hz (unsynchronised) |
| Output Waveform | Stepped approximation to sinewave |
| Transfer Time | 6ms typical / 10ms maximum |
| Battery Type | Lead-acid (user-replaceable) |
| Replacement Battery Model | RBC2 |
| Output Outlets | 4 × IEC 60320 C13 (3 UPS-backed, 1 surge-only) |
| Data Protection | RJ45 telephone/modem line protection |
| Maximum Input Current | 7A |
| Switching Current Capacity | 7A |
| Operating Temperature | 0–40°C |
| Operating Humidity | 0–95% (non-condensing) |
| Operating Altitude | 0–10,000 ft |
| Storage Temperature | −15–45°C |
| Storage Humidity | 0–95% |
| Storage Altitude | 0–15,240 m |
| Acoustic Level | 40 dBA |
| Heat Dissipation | 24 BTU/h |
| Physical Dimensions | 165 × 91 × 284 mm (W×D×H) |
| Weight | 6.32 kg |
| Form Factor | Tower (not rack-mountable) |
| Included Accessories | Software CD, documentation CD, 1.2m IEC power cord, telephone cable, USB cable, warranty card |
| Warranty | 24 months |
Key Features
Ideal For
FAQs
What is the runtime on battery backup?
At a 100W load, the BK500EI provides approximately 24 minutes and 20 seconds of backup runtime. Actual runtime will vary depending on the connected load and battery condition.
Can the battery be replaced by users?
Yes, the BK500EI features a user-replaceable battery design. The replacement battery model is the RBC2, allowing for easy maintenance without requiring technician support.
Does this UPS protect data connections?
Yes, the BK500EI includes RJ45 data line protection for telephone, fax, modem and DSL connections, helping safeguard both power and communication systems.
How many devices can I connect to this UPS?
The BK500EI has four IEC C13 outlets: three provide UPS battery backup and one is surge-only. You can connect up to four devices, though actual capacity depends on their combined power consumption not exceeding 300W.
What is the transfer time to battery mode?
The transfer time is 6ms typical and 10ms maximum. This fast switchover ensures minimal disruption to connected equipment during a power failure.
Can this UPS handle voltage fluctuations?
Yes, the BK500EI includes automatic voltage regulation that handles input voltages between 160V and 300V, protecting equipment from damage caused by brownouts and overvoltage conditions.
Is this UPS suitable for server rooms?
The BK500EI is designed for small office and workgroup environments rather than data centres. For server room applications, a larger UPS with greater capacity and rack-mount options is recommended.
