Overview

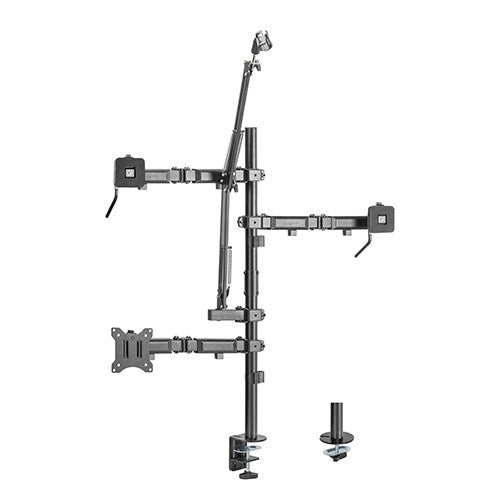

- The Brateck MDS10-1 is a comprehensive all-in-one studio mount that consolidates monitor, microphone, camera, and lighting support onto a single desktop stand. Designed specifically for content creators, streamers, and podcasters, it eliminates the need for separate mounting solutions, reducing clutter and freeing valuable desk space.
Built from sturdy steel with a powder-coated finish, the mount accommodates monitors from 17–32 inches and weighs up to 9 kg. The integrated microphone boom extends 640 mm and supports weights up to 1 kg, whilst dedicated camera and lighting arms provide ±90° tilt and swivel with full rotation capabilities. Full-range monitor motion—including ±70° vertical tilt, ±90° horizontal swivel, and ±180° rotation—ensures optimal positioning for any production setup.
The quick-release VESA plate (75×75 and 100×100 compatible) allows swift monitor changes, whilst integrated cable management keeps cables organised. Both clamp and grommet installation options provide flexibility for different desk types and configurations. With a 36-month warranty and space-saving design, it's an ideal choice for studios operating within tight spatial constraints.
Specifications
| Brand | Brateck |
|---|---|
| Model | MDS10-1 |
| Product Type | All-in-One Studio Desktop Mount |
| Material | Steel and Plastic |
| Surface Finish | Powder Coating |
| Colour | Fine Texture Black |
| Overall Dimensions | 897 × 120 × 1000 mm (35.3 × 4.7 × 39.4 inches) |
| Vertical Shaft Height | 860 mm (33.9 inches) |
| Arm Full Extension | 398 mm (15.7 inches) |
| Monitor Compatibility | 17–32 inches |
| Curved Monitor Support | Yes |
| VESA Compatibility | 75×75, 100×100 |
| Monitor Weight Capacity | 9 kg (19.8 lbs) |
| Monitor Tilt Range | ±70° |
| Monitor Swivel Range | ±90° |
| Monitor Rotation | ±180° |
| Quick-Release VESA Plate | Yes |
| Microphone Boom Length | 640 mm (25.2 inches) |
| Microphone Height Range | 680 mm (26.8 inches) |
| Microphone Weight Capacity | 1 kg (2.2 lbs) |
| Microphone Holder Type | 3/8 inch, 5/8 inch |
| Microphone Base | Steel Base |
| Camera Weight Capacity | 7 kg (15.4 lbs) |
| Camera Holder Type | 1/4 inch, 3/8 inch |
| Camera Tilt Range | ±90° |
| Camera Swivel Range | ±90° |
| Camera Rotation | ±180° |
| Light Weight Capacity | 7 kg (15.4 lbs) |
| Light Holder Type | 1/4 inch, 3/8 inch |
| Vertical Shaft Locking | Plastic (PA) Twist Lock |
| Installation Method | Clamp, Grommet |
| Cable Management | Yes |
| Warranty | 36 months |
Key Features
Ideal For
FAQs
What size monitors does the Brateck MDS10-1 support?
The mount supports single monitors from 17 to 32 inches with a weight capacity of up to 9 kg. It is compatible with both flat and curved monitors using VESA 75×75 or 100×100 mounting plates.
Can I use this mount with a curved monitor?
Yes, the Brateck MDS10-1 is specifically designed to support curved monitors within the 17–32 inch range and 9 kg weight limit.
Does it include a microphone boom?
Yes, the integrated microphone boom extends 640 mm and supports microphones up to 1 kg. It accepts standard 3/8 inch and 5/8 inch microphone mounts.
Can I attach camera and lighting to this mount?
Yes, the mount features dedicated camera and lighting arms, each rated for up to 7 kg. Both support 1/4 inch and 3/8 inch attachment points with full tilt, swivel, and rotation range.
What installation options are available?
The mount can be installed using either a clamp or grommet method, providing flexibility for different desk types and thicknesses.
What range of motion does the monitor arm provide?
The monitor supports ±70° vertical tilt, ±90° horizontal swivel, and ±180° rotation, allowing full positioning flexibility for streaming, content creation, and other studio applications.
Is cable management included?
Yes, the mount features integrated cable management to keep your microphone, camera, and monitor cables organised and out of sight.
What warranty is included with the Brateck MDS10-1?
The mount comes with a 36-month (3-year) manufacturer's warranty.
