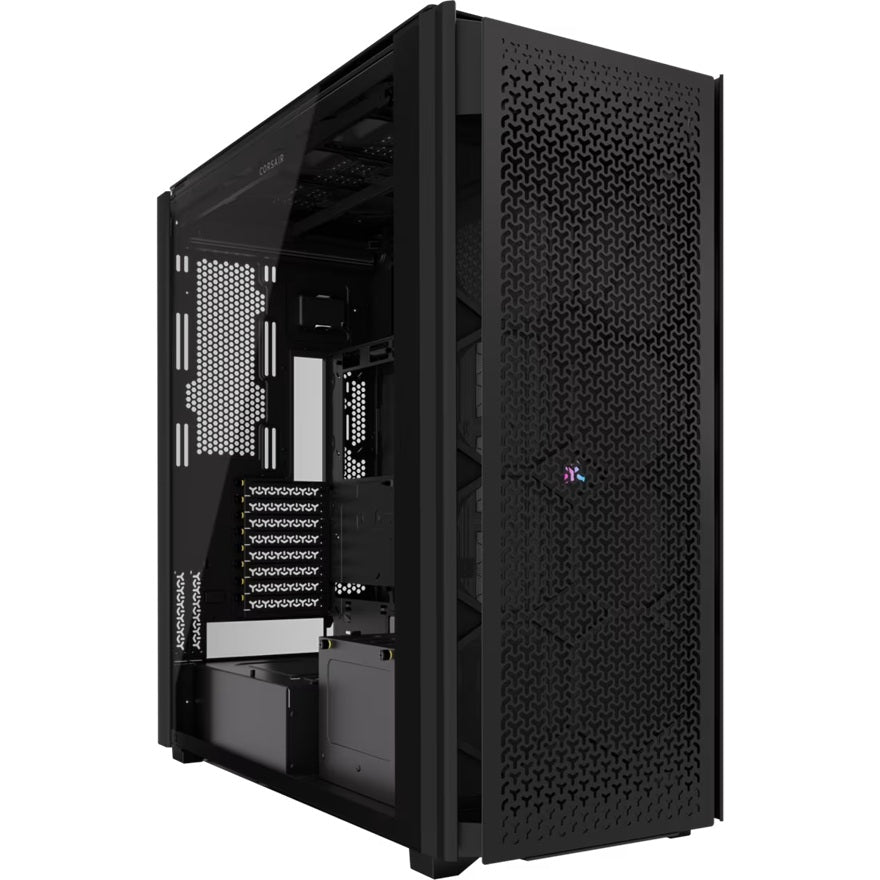

Corsair iCUE LINK 9000D RGB AIRFLOW Super Full-Tower Case
Corsair iCUE LINK 9000D RGB AIRFLOW Super Full-Tower Case
SKU:CAC-9000DAF-RGB-BK
The Corsair iCUE LINK 9000D RGB AIRFLOW is a super full-tower PC case designed for high-end custom builds and enthusiast gaming rigs. Featuring exceptional cooling capacity, flexible InfiniRail fan mounting, integrated USB Type-C hub, and support for multiple radiator configurations, it delivers superior airflow and cable management for demanding workstations and custom-cooled systems.
Couldn't load pickup availability
- See our return policy
- 2 Years Manufacturer Warranty
Product Information
| Brand | Corsair |
|---|---|
| Category | Cases & Accessories |
| SKU | CAC-9000DAF-RGB-BK |
| Availability | In Stock |
Overview
- The Corsair iCUE LINK 9000D RGB AIRFLOW is a super full-tower case engineered for ambitious custom builds and high-performance workstations. Its cavernous interior supports extensive radiator and fan configurations, with the innovative InfiniRail mounting system providing unmatched flexibility for positioning 120mm and 140mm fans without fixed vertical constraints.
Exceptional cooling capacity is the standout feature, accommodating radiators up to 480mm in the front and roof, 360mm on the side, and 240mm in the rear. The case supports up to 18x 120mm fans, making it ideal for custom liquid-cooled systems or multi-fan air cooling setups. The removable high-airflow front panel ensures optimal intake of cool air while simplifying maintenance.
Built for the discerning builder, the 9000D includes a front-panel integrated USB Type-C hub with dedicated audio DAC, ensuring modern I/O connectivity regardless of motherboard capabilities. The removable hard drive cage and 30mm cable routing space provide flexibility for cable management and custom configurations. Support for reverse connector motherboards (ASUS BTF, MSI Project Zero, Gigabyte Project Stealth) makes it future-proof for next-generation builds.
With support for up to 6x 2.5" SSDs and 5x 3.5" HDDs, an 8-horizontal expansion slot layout, and a maximum GPU length of 580mm, the 9000D accommodates top-tier components and storage without compromise.
Specifications
| Brand | Corsair |
|---|---|
| Model | iCUE LINK 9000D RGB AIRFLOW |
| Case Type | Super Full-Tower |
| Dimensions (H x W x D) | 698 x 307 x 698 mm |
| Material | Steel and Tempered Glass |
| Colour | Black |
| Motherboard Support | Mini-ITX, Micro-ATX, ATX, E-ATX, SSI-EEB |
| Power Supply Format | ATX |
| Internal Storage Bays | 6x 2.5" SSD / 5x 3.5" HDD |
| Expansion Slots | 8 Horizontal (or 4 Vertical) + 2 Vertical (Secondary Motherboard) |
| Maximum GPU Length | 580 mm |
| Maximum CPU Cooler Height | 180 mm |
| Maximum PSU Length | 225 mm |
| Radiator Support - Front | 480mm, 420mm, 400mm, 360mm, 280mm, 240mm, 200mm, 140mm, 120mm |
| Radiator Support - Top | 480mm, 420mm, 400mm, 360mm, 280mm, 240mm, 200mm, 140mm, 120mm |
| Radiator Support - Side | 360mm, 240mm |
| Radiator Support - Rear | 240mm, 140mm, 120mm |
| Fan Support - Front | 8x 120mm or 3x 140mm or 2x 200mm |
| Fan Support - Top | 8x 120mm or 3x 140mm or 2x 200mm |
| Fan Support - Side | 3x 120mm |
| Fan Support - Rear | 2x 120mm or 1x 140mm |
| Maximum Fan Count | 18x 120mm |
| Included Fans | None |
| Front I/O Ports | 2x USB 3.2 Gen 2 Type-C, 4x USB 3.2 Gen 1 Type-A, 1x Audio In/Out |
| Case Window | Tempered Glass (Left Side Panel) |
| Right Side Panel | Steel |
| Cable Routing Space | 76 mm |
| Dust Filtration | Yes |
| Reverse Connector Support | Yes (ASUS BTF, MSI Project Zero, Gigabyte Project Stealth compatible) |
| Vertical Mount Support | Yes (Riser Card Sold Separately) |
| Weight | 37.35 kg |
| Warranty | 2 Years |
Key Features
Ideal For
FAQs
What radiator sizes does the Corsair 9000D support?
The 9000D supports radiators up to 480mm in the front and top, 360mm on the side, and 240mm in the rear. This flexibility makes it suitable for extensive custom liquid cooling loops.
How many fans can the 9000D accommodate?
The case supports up to 18x 120mm fans. You can configure fans across the front, top, side, and rear panels depending on your cooling requirements.
Is the 9000D compatible with modern motherboards?
Yes. The 9000D supports Mini-ITX, Micro-ATX, ATX, E-ATX, and SSI-EEB motherboards. It also supports reverse connector motherboards including ASUS BTF, MSI Project Zero, and Gigabyte Project Stealth.
What storage capacity does the 9000D offer?
The case includes 6x 2.5" SSD bays and 5x 3.5" HDD bays, providing storage flexibility for extensive drive configurations. The removable hard drive cage allows customisation for custom cooling setups.
Does the 9000D have integrated I/O connectivity?
Yes. The front panel features an integrated USB Type-C hub with dedicated audio DAC, providing 2x USB 3.2 Gen 2 Type-C, 4x USB 3.2 Gen 1 Type-A, and audio connectivity.
What is the maximum GPU length supported?
The 9000D supports graphics cards up to 580mm in length, accommodating high-end dual and triple-slot GPUs.
How does the InfiniRail mounting system work?
The InfiniRail system uses multi-point mounting rails that allow you to slide and position 120mm and 140mm fans in any configuration without fixed vertical mounting points, providing flexible airflow optimisation.
Is the front panel removable for cleaning?
Yes. The high-airflow steel front panel is removable, making it easy to clean dust filters and maintain optimal airflow.
