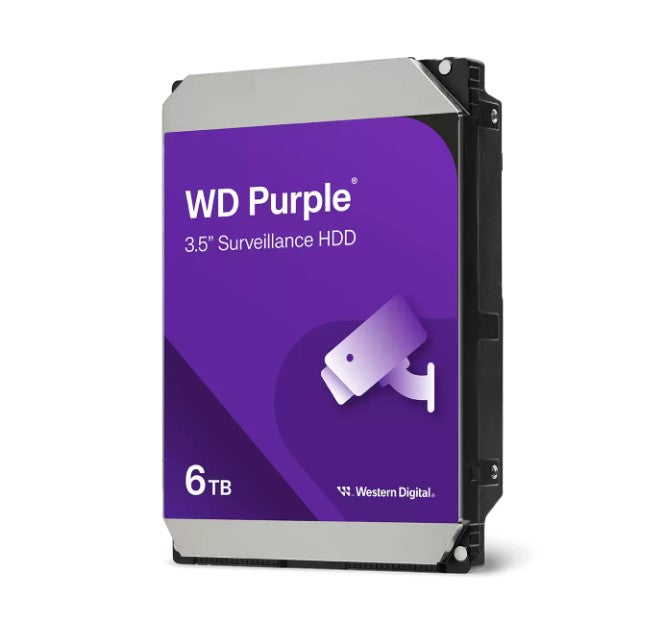

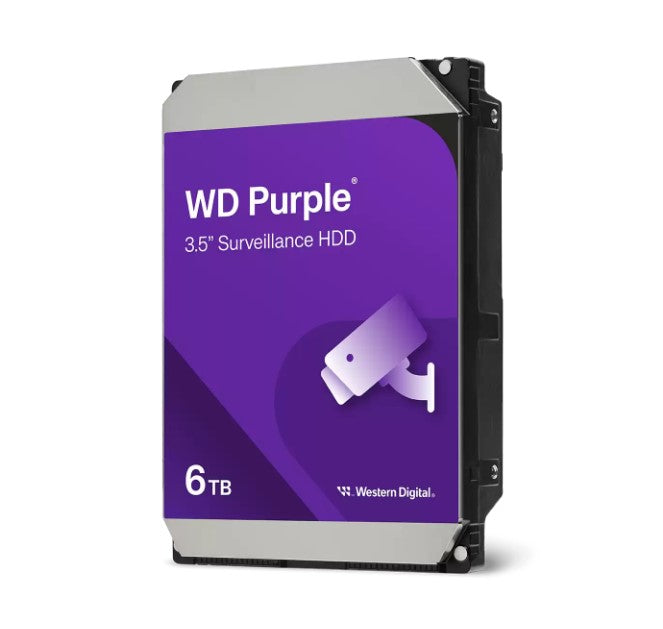

Western Digital WD Purple 6TB Surveillance Hard Drive
Western Digital WD Purple 6TB Surveillance Hard Drive
SKU:HAWD-PP35-6TB4
Couldn't load pickup availability
- See our return policy
- 3 years Manufacturer Warranty
Product Information
| Brand | Western Digital |
|---|---|
| Category | Hard Disk Drives - SATA |
| SKU | HAWD-PP35-6TB4 |
| Availability | Out of Stock |
Overview
- The WD Purple 6TB is purpose-built for surveillance systems that operate around the clock. It combines high capacity with Western Digital's AllFrame technology, which minimises frame loss and video interruptions—critical for maintaining video integrity in security-critical environments.
Designed for write-intensive, low bit-rate, high stream-count applications typical of surveillance, the WD Purple supports up to 64 cameras per drive and handles 180TB of data annually. The drive features TLER (Time-Limited Error Recovery) and native ATA streaming support, ensuring compatibility with leading NVR and DVR platforms.
With a 1.5 million hour MTBF rating and 3-year warranty, this drive provides the reliability businesses expect from surveillance storage. Its optimised 5400 RPM spindle speed and 64MB cache balance performance with power efficiency, making it suitable for multi-bay surveillance systems.
Specifications
| Brand | Western Digital |
|---|---|
| Model | WD Purple 6TB |
| Product Type | Surveillance Hard Drive |
| Capacity | 6TB |
| Form Factor | 3.5 inch |
| Interface | SATA III (6Gb/s) |
| Speed | 5400 RPM |
| Cache | 64MB |
| Data Transfer Rate | 175MB/s |
| Workload Rating | 180TB/year |
| Maximum Cameras Supported | 64 |
| Technology | AllFrame |
| Features | TLER, ATA streaming support |
| MTBF | 1.5 million hours |
| Warranty | 3 years |
Key Features
Ideal For
FAQs
What is AllFrame technology and why does it matter for surveillance?
AllFrame is Western Digital's exclusive technology that improves ATA streaming to reduce frame loss, pixelation, and video interruptions in surveillance recordings. This ensures cleaner, more reliable video playback—essential for security systems where missed frames could be critical.
How many cameras can one WD Purple 6TB drive support?
The WD Purple 6TB is engineered to support up to 64 cameras per drive in an NVR or DVR system, depending on stream resolution and frame rate.
What is the difference between WD Purple and standard hard drives?
WD Purple drives are specifically tuned for surveillance workloads. They feature optimised firmware for continuous operation, reduced vibration, and technologies like TLER that prevent errors during extended write-intensive recording sessions—areas where standard drives would struggle.
Is the WD Purple 6TB suitable for 24/7 continuous operation?
Yes. The WD Purple is engineered for 24/7 surveillance systems with an enhanced workload rating of 180TB/year. It includes features like prioritised write operations and TLER support to handle continuous operation reliably.
What does the 180TB/year workload rating mean?
This indicates the drive can safely handle up to 180TB of total data reads and writes per year while maintaining reliability. For surveillance, this translates to continuous 24/7 operation across multiple camera streams.
What warranty comes with the WD Purple 6TB?
The WD Purple 6TB includes a 3-year manufacturer warranty and has a 1.5 million hour MTBF (mean time between failures) rating, reflecting its durability for continuous-duty surveillance applications.
Does the WD Purple work with any NVR or DVR system?
WD Purple drives are compatible with most major NVR and DVR platforms. They support standard SATA III interfaces, TLER, and ATA streaming. Check your system's specifications to confirm compatibility with your specific NVR or DVR model.
