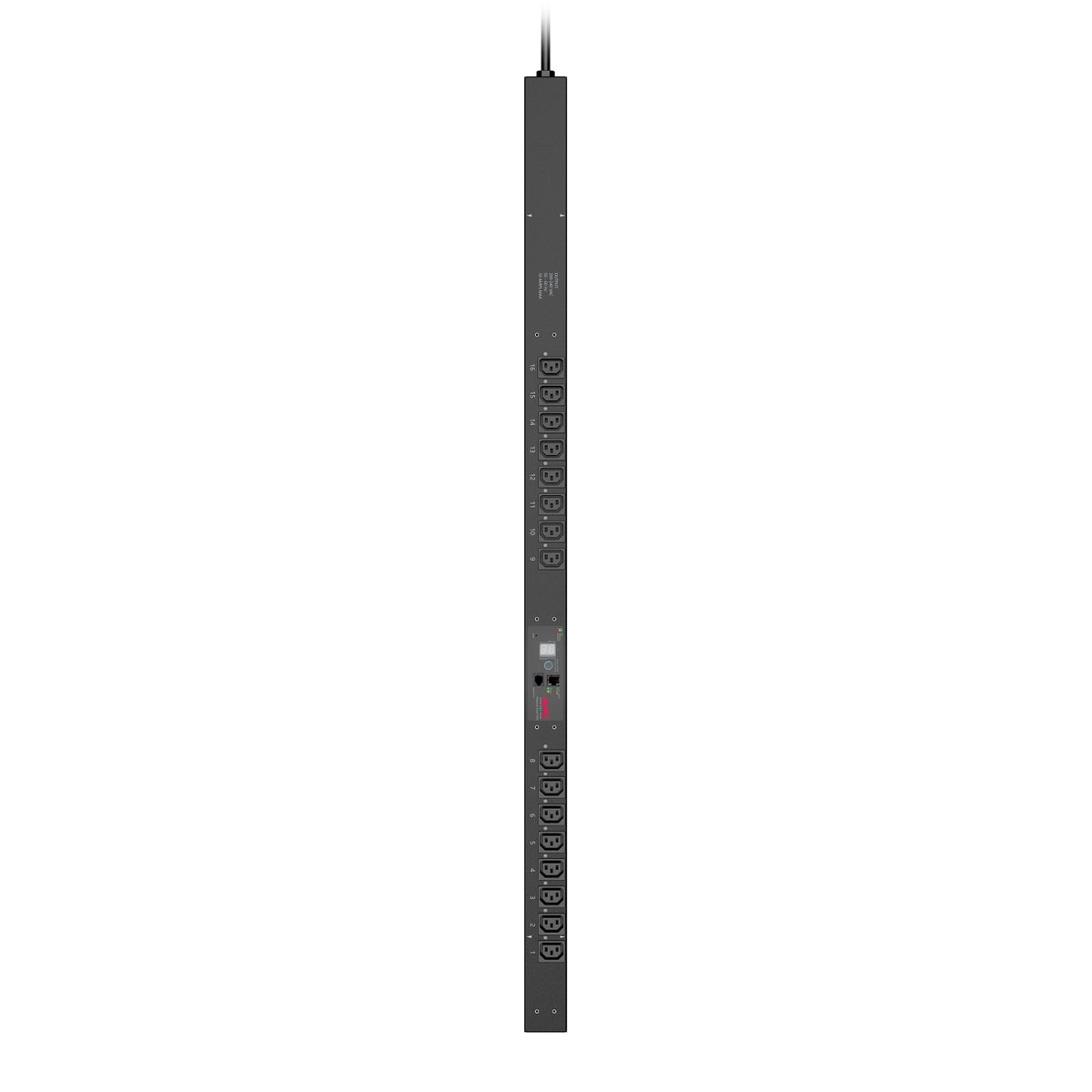

APC AP7950B Switched Rack PDU 16x C13 230V
APC AP7950B Switched Rack PDU 16x C13 230V
SKU:UPAPC-AP7950B
Couldn't load pickup availability
- See our return policy
- 12 months Manufacturer Warranty
Product Information
| Brand | APC |
|---|---|
| Category | Data Racks & Accessories |
| SKU | UPAPC-AP7950B |
| Availability | Out of Stock |
Overview
- The APC AP7950B is a professional-grade switched rack PDU delivering outlet-level power control for data centre and server room environments. With 16 IEC C13 outlets and a 230V/10A input, it provides reliable power distribution for standard IT equipment including servers, UPS systems, and network devices.
The switched design enables remote on/off control of individual outlets, allowing IT teams to remotely restart equipment, manage power distribution, and respond to failures without physical intervention. User-defined alarms provide proactive monitoring and alert capabilities.
With its ZeroU form factor, the AP7950B integrates efficiently into existing racks without consuming vertical space. CE and VDE certifications ensure compliance with safety standards, whilst the included mounting brackets and toolless kit simplify installation. The 3-metre cord provides flexibility in rack positioning.
Specifications
| PDU Type | Switched |
|---|---|
| Form Factor | ZeroU |
| Input Voltage | 230V |
| Input Current | 10A |
| Number of Outlets | 16 |
| Outlet Type | IEC 60320 C13 |
| Input Connection | IEC 60320 C14 |
| Cord Length | 3 m |
| Number of Cables | 1 |
| Colour | Black |
| Remote Monitoring | Yes |
| Outlet Switching | Yes |
| User-Defined Alarms | Yes |
| Safety Certifications | CE, VDE |
| Warranty | 12 months |
| Included Accessories | Cord retention bracket, rack mounting brackets, toolless mounting kit, installation guide, user manual |
Key Features
Ideal For
FAQs
What is a ZeroU rack PDU and why does it matter?
A ZeroU PDU fits into a standard 19-inch rack without consuming any vertical space (U units). This is ideal for organisations with limited rack space, allowing power distribution without reducing available space for servers and equipment.
Can I control outlets remotely on the APC AP7950B?
Yes, the AP7950B features outlet-level on/off switching with remote monitoring capabilities. This allows IT teams to power cycle equipment remotely, improving troubleshooting efficiency and reducing site visit requirements.
How many devices can the AP7950B support?
The PDU has 16 IEC C13 outlets, accommodating 16 standard IT devices such as servers, UPS units, switches, and storage systems. Actual capacity depends on the power requirements of connected equipment and the 10A input limit.
Is the APC AP7950B suitable for server rooms with redundancy requirements?
Yes. The switched PDU design, remote monitoring, and user-defined alarms make it suitable for managed server environments. Many installations use multiple PDUs on separate circuits for redundancy and load balancing.
What certifications does the AP7950B have?
The unit is CE and VDE certified, ensuring compliance with European safety and performance standards. These certifications confirm the PDU meets rigorous electrical safety requirements.
Is installation difficult?
No. The AP7950B includes a toolless mounting kit, rack mounting brackets, and installation guide, enabling straightforward installation into standard 19-inch racks without specialist tools.
What cable length does the AP7950B come with?
The PDU includes a 3-metre power cord, providing flexibility in positioning within or near the rack whilst maintaining proper distance from power sources.
