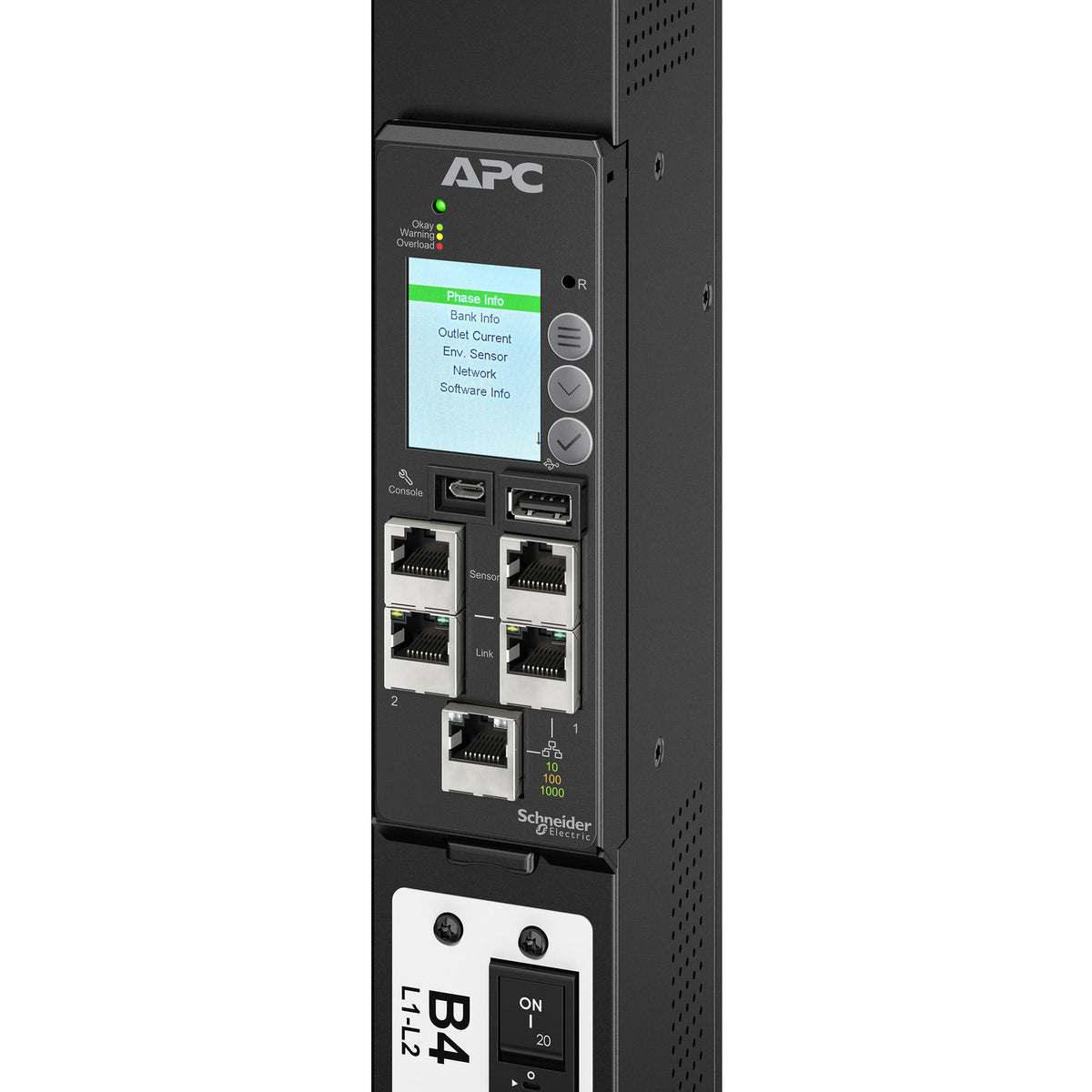

APC NetShelter Rack PDU Advanced Gen 2 42-Outlet Switched
APC NetShelter Rack PDU Advanced Gen 2 42-Outlet Switched
SKU:UPAPC-APDU11450SW
The APC NetShelter Rack PDU Advanced Gen 2 is a switched power distribution unit designed for high-density server and networking racks. Featuring 42 outlets, remote switching capability, and real-time power metering, it delivers reliable power management and visibility for modern data centre environments.
Couldn't load pickup availability
- See our return policy
- 60 months Manufacturer Warranty
Product Information
| Brand | APC |
|---|---|
| Category | UPS & Power Board |
| SKU | UPAPC-APDU11450SW |
| Availability | Out of Stock |
Overview
- The APC NetShelter Rack PDU Advanced Gen 2 is a switched power distribution solution engineered for demanding data centre environments. Delivering 34.6kW at 415V (60A) or 43.5kW at 400V (63A), it provides reliable power distribution to IT equipment whilst enabling remote outlet control and real-time power visibility.
With 42 outlets in a compact footprint and 4-in-1 combination outlet design, the PDU maximises rack density and deployment flexibility. Organisations can turn outlets on or off remotely, reducing downtime and improving equipment lifecycle management. The 1% metering accuracy enables confident power usage tracking, billing allocation, and capacity planning across IT infrastructure.
Network integration is straightforward via a one-gigabit Ethernet port, with EcoStruxure IT compatibility for centralised management. The Live Swap NMC3 feature allows for network management card replacement without service interruption. Two environmental sensor ports support optional temperature and humidity monitoring. Certified for global deployment (UL, CE, CSA, UKCA, RCM, PSE, KC, China RoHS, CMIM), it suits multi-region data centre operations.
Specifications
| Manufacturer | APC |
|---|---|
| Model | NetShelter Rack PDU Advanced Gen 2 11K Series |
| Product Type | Switched Rack PDU |
| Total Outlets | 42 |
| Outlet Configuration | 21 × C13/C15/C19/C21 combo outlets + 21 × C13/C15 outlets |
| Power Capacity (400V) | 43.5kW at 63A |
| Power Capacity (415V) | 34.6kW at 60A |
| Input Connector | IEC-309 60A 3P+N+PE |
| Input Cable Length | 3 metres (10 feet) |
| Form Factor | 2.2 inches (5.6 cm) wide |
| Outlet Control | Remote switched control |
| Power Metering | 1% metering accuracy with PDU-level power visibility |
| Network Connectivity | One gigabit Ethernet port (10/100/1000) |
| Cascade Capability | Up to 32 PDUs with network port sharing |
| Network Management | NMC3 with Live Swap feature |
| Management Interfaces | Web, SNMP, Command Line Interface (CLI) |
| Environmental Sensors | Two sensor ports for optional temperature/humidity monitoring |
| Operating Temperature | Up to 60°C (140°F) at full load |
| Certifications | UL, CE, CSA, UKCA, RCM, PSE, KC, China RoHS, CMIM, Nemiko |
| Warranty | 60 months |
| Included Subscription | 1-year Secure Network Management Card subscription |
| EcoStruxure IT | Compatible |
Key Features
Ideal For
FAQs
What does 'Live Swap' mean for the NMC3?
Live Swap allows you to replace the Network Management Card 3 without interrupting power to connected equipment or shutting down the PDU. This minimises downtime in the event of a network card issue.
Can I cascade multiple APC NetShelter PDUs?
Yes. You can cascade up to 32 PDUs together using the two available link ports and network port sharing (NPS) feature. This enables power sharing and management across multiple units from a single interface.
What is the difference between the two power capacity ratings?
The PDU supports both 400V (43.5kW at 63A) and 415V (34.6kW at 60A) input, depending on your regional power supply standard. 415V is common in Australia; check your facility's voltage before purchasing.
How accurate is the power metering?
The PDU provides 1% metering accuracy, allowing reliable power usage tracking, billing allocation, and capacity planning across your IT equipment.
Is the NMC3 subscription included?
Yes. A 1-year Secure Network Management Card subscription is included with the purchase, providing network management and monitoring capabilities.
What certifications does this PDU hold for international deployment?
The PDU is certified for global use: UL, CE, CSA, UKCA, RCM, PSE, KC, China RoHS, CMIM, and Nemiko. This makes it suitable for multi-region data centre operations.
Can I connect environmental sensors to this PDU?
Yes. Two environmental sensor ports are available for connecting optional temperature and humidity sensors (sold separately) to monitor rack conditions.
