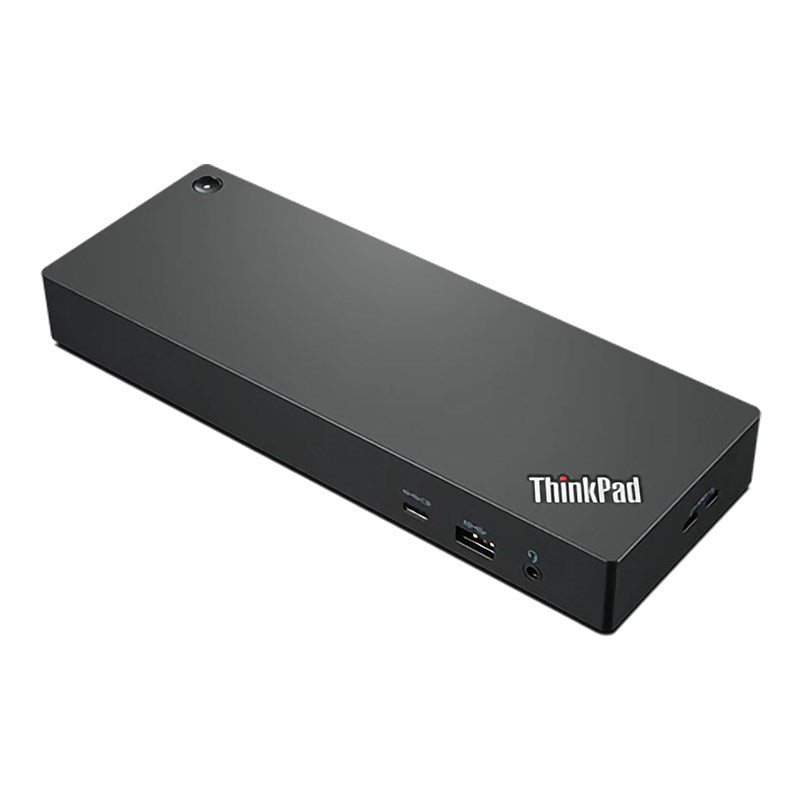

Lenovo ThinkPad Universal Thunderbolt 4 Dock
Lenovo ThinkPad Universal Thunderbolt 4 Dock
SKU:NAL-40B00135AU
The Lenovo ThinkPad Universal Thunderbolt 4 Dock delivers fast connectivity and multi-display support for mobile professionals. With 100W power delivery, dual DisplayPort outputs, and four USB ports, it streamlines workspace setup for ThinkPad users requiring flexible docking solutions.
Couldn't load pickup availability
- See our return policy
- 36 months (CRU) Manufacturer Warranty
Product Information
| Brand | Lenovo |
|---|---|
| Category | Notebook Accessories |
| SKU | NAL-40B00135AU |
| Availability | In Stock |
Overview
- The Lenovo ThinkPad Universal Thunderbolt 4 Dock consolidates multiple connections into a single high-speed interface, reducing desktop clutter whilst maintaining full productivity. Supporting up to four external displays, 100W power delivery, and simultaneous data transfer at 40 Gbps, it enables seamless multi-monitor workflows for demanding professionals.
Designed specifically for ThinkPad users, this dock provides enterprise-grade features including Intel vPro/AMT pass-through support, silent firmware updates, and dual security slots for physical cable protection. The compact form factor and comprehensive port selection—including Gigabit Ethernet, four USB-A ports, DisplayPort 1.4, and HDMI 2.1—make it suitable for both office and mobile setups.
With 36 months warranty coverage and support for Windows 10 64-bit systems, this dock represents a reliable investment for organisations standardising on modern Thunderbolt connectivity. The 100W power delivery capability ensures compatible ThinkPad models can remain fully charged during use without additional power connections.
Specifications
| brand | Lenovo |
|---|---|
| model | ThinkPad Universal Thunderbolt 4 Dock |
| product_type | Docking Station |
| warranty | 36 months (CRU) |
| power_delivery | 100W maximum |
| input_power | 20V 6.75A |
| charging_port | DC-IN with slim-tip connector |
| power_button | Yes |
| display_support | Up to 4 external monitors; 1× 8K @ 30Hz via HDMI 2.1 or 4× 4K @ 60Hz |
| video_outputs | 1× HDMI 2.1, 2× DisplayPort 1.4 |
| thunderbolt_ports | 2× Thunderbolt 4 (1 host, 1 device) |
| usb_ports | 4× USB-A, 1× USB-C |
| ethernet | 1× Gigabit Ethernet (RJ-45) |
| audio | 1× 3.5mm combo audio jack |
| security_features | 1× NanoSaver lock slot, 1× MicroSaver lock slot |
| data_transfer_rate | Up to 40 Gbps (Thunderbolt 4) |
| supported_os | Windows 10 64-bit |
| driver_required | Yes |
| hardware_requirements | Host with USB-C or Thunderbolt port |
| dimensions | 220mm (L) × 80mm (D) × 30mm (H) |
| product_weight | 0.45 kg |
| packed_weight | 1.2 kg |
| packed_dimensions | 270mm (L) × 195mm (D) × 85mm (H) |
| operating_temperature | 0°C to 40°C |
| relative_humidity | 5% to 95% |
| colour | Black/Red |
| agency_approvals | RCM, CB |
| included_accessories | 135W AC power adapter, power cord, Thunderbolt 4 cable, setup and warranty posters |
Key Features
Ideal For
FAQs
What power delivery does the Lenovo ThinkPad Universal Thunderbolt 4 Dock provide?
The dock delivers up to 100W of power, sufficient to charge most ThinkPad models whilst in use. The 135W AC adapter ensures stable operation with connected peripherals.
How many external monitors can I connect to this dock?
You can connect up to four external monitors. The dock supports either one 8K display at 30Hz via HDMI 2.1 or up to four 4K displays at 60Hz via the DisplayPort outputs.
Is a driver installation required for this docking station?
Yes, drivers are required for full functionality. These are typically available from Lenovo's support website for Windows 10 64-bit systems.
What security features does the dock offer?
The dock includes two security slots: a NanoSaver lock slot and a MicroSaver lock slot, allowing you to secure cables and prevent unauthorised disconnection in secure work environments.
Which ThinkPad models are compatible with this dock?
This is a universal Thunderbolt 4 dock compatible with any ThinkPad or laptop featuring a USB-C or Thunderbolt port. Check your device specifications to confirm Thunderbolt 4 support.
What data transfer speeds does the Thunderbolt 4 connection support?
The dock supports Thunderbolt 4 data transfer rates up to 40 Gbps, depending on host system capabilities, peripheral processing, and operating environment factors.
Does the dock support silent firmware updates?
Yes, the dock supports silent firmware upgrades, allowing system updates without disrupting your workflow or requiring manual intervention.
What is the warranty period?
The dock includes a 36-month warranty with CRU (Customer Replaceable Unit) support, providing extended protection and peace of mind for business users.
