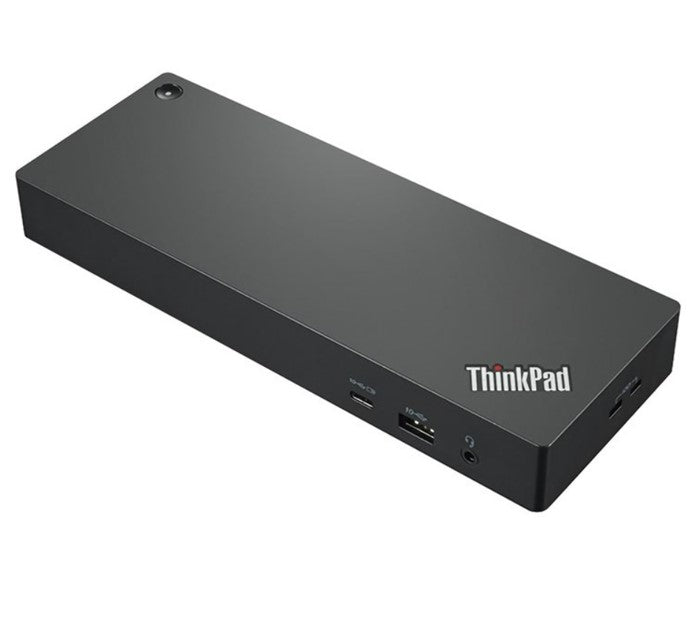

Lenovo ThinkPad Thunderbolt 4 Workstation Dock
Lenovo ThinkPad Thunderbolt 4 Workstation Dock
SKU:NAL-40B00300AU
The Lenovo ThinkPad Thunderbolt 4 Workstation Dock is a high-performance docking solution designed for professionals requiring multi-display connectivity. Featuring 230W power delivery, support for up to four 4K displays, and comprehensive port options including Thunderbolt, USB-A, USB-C, HDMI, and Gigabit Ethernet, it delivers seamless workspace expansion for demanding workstation users.
Couldn't load pickup availability
- See our return policy
- 3 years (CRU—Customer Replaceable Unit) Manufacturer Warranty
Product Information
| Brand | Lenovo |
|---|---|
| Category | Notebook Accessories |
| SKU | NAL-40B00300AU |
| Availability | In Stock |
Overview
- The Lenovo ThinkPad Thunderbolt 4 Workstation Dock transforms your laptop into a fully-featured desktop workstation with a single cable connection. Designed specifically for ThinkPad users, it delivers 230W of power while simultaneously supporting up to four external displays at 4K resolution, making it ideal for productivity-intensive workflows such as video editing, graphic design, and data analysis.
Built for professionals who demand reliability and flexibility, this dock consolidates all your peripheral connections—displays, storage, networking, and audio—into one streamlined interface. The dual Thunderbolt 4 ports enable daisy-chaining of additional devices, whilst the comprehensive port array (USB-A, USB-C, HDMI, DisplayPort, and Gigabit Ethernet) ensures compatibility with virtually any modern peripheral.
Physical security is a key consideration, with integrated NanoSaver and MicroSaver lock slots protecting your workspace in shared environments. Operating reliably across temperatures from 0°C to 40°C and humidity levels from 5% to 95%, this dock is engineered for demanding professional environments. The three-year warranty and CRU (Customer Replaceable Unit) design minimise downtime and support costs.
Specifications
| Brand | Lenovo ThinkPad |
|---|---|
| Model | ThinkPad Thunderbolt 4 Workstation Dock |
| Product Type | Thunderbolt 4 Docking Station |
| Colour | Black/Red |
| Dimensions (W x D x H) | 220mm x 80mm x 30mm |
| Packed Dimensions (L x D x H) | 270mm x 195mm x 85mm |
| Weight | 0.45kg |
| Packed Weight | 1.9kg |
| Power Delivery | 230W maximum |
| Input Power | 20V 15A |
| Power Connector | DC-IN with slim tip |
| Thunderbolt Ports | 2x Thunderbolt 4 (1x host, 1x device daisy-chain) |
| USB Ports | 4x USB-A, 1x USB-C |
| Video Ports | 1x HDMI 2.1, 2x DisplayPort 1.4 |
| Maximum Display Support | 1x 8K@30Hz via HDMI 2.1 or 4x 4K@60Hz |
| Audio | 1x 3.5mm combo audio jack |
| Networking | 1x Gigabit Ethernet |
| Security Features | 1x NanoSaver lock slot, 1x MicroSaver lock slot |
| Power Button | Yes |
| Driver Required | Yes |
| Operating System Requirements | Windows 10 64-bit, Windows 11 64-bit |
| Hardware Requirements | Host with USB-C/Thunderbolt port |
| Operating Temperature Range | 0°C to 40°C |
| Operating Humidity Range | 5% to 95% |
| Warranty | 3 years (CRU—Customer Replaceable Unit) |
| Agency Approvals | CB |
| Package Contents | ThinkPad Thunderbolt 4 Workstation Dock, 300W AC Power Adapter, Power Cord, Thunderbolt 4 Cable, Setup and Warranty Posters |
Key Features
Ideal For
FAQs
Can the Lenovo ThinkPad Thunderbolt 4 Dock support multiple 4K displays simultaneously?
Yes. The dock supports up to four 4K displays at 60Hz through its combination of HDMI 2.1, two DisplayPort 1.4 connections, and daisy-chaining via the second Thunderbolt 4 port. Alternatively, it supports one 8K display at 30Hz via HDMI 2.1.
What power delivery capability does this dock offer?
The dock provides up to 230W of power delivery, sufficient to charge most ThinkPad laptops whilst simultaneously powering peripheral devices connected to the USB ports.
Is this dock compatible with non-Lenovo laptops?
This dock is designed specifically for ThinkPad devices and requires a host with Thunderbolt 4 or USB-C capability. Compatibility with non-Lenovo devices depends on their Thunderbolt 4 support and driver availability for Windows 10 64-bit or Windows 11 64-bit operating systems.
What security features are included?
The dock includes both NanoSaver and MicroSaver lock slots, allowing you to physically secure peripherals and prevent unauthorised removal in shared or open office environments.
How many USB ports does the dock provide?
The dock provides 4x USB-A ports and 1x USB-C port, offering flexible connectivity for keyboards, mice, external storage, and other USB-powered peripherals.
What is the warranty coverage?
The dock includes a three-year manufacturer's warranty with CRU (Customer Replaceable Unit) support, minimising downtime in case of component failure.
Can I daisy-chain additional Thunderbolt devices?
Yes. The dock features two Thunderbolt 4 ports—one for host connection and one for daisy-chaining additional Thunderbolt devices, enabling you to expand connectivity further.
What operating systems are supported?
The dock requires drivers and is officially supported on Windows 10 64-bit and Windows 11 64-bit operating systems.
