HP Dock G6 Thunderbolt 4 Docking Station
HP Dock G6 Thunderbolt 4 Docking Station
SKU:NAHP-9X472UT

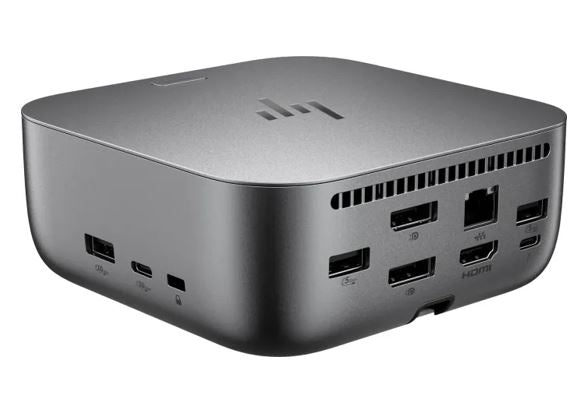

The HP Dock G6 is a Thunderbolt 4 docking station designed for mobile professionals and office workers. Featuring 100W power delivery, support for up to 4 displays, and multiple connectivity options, it delivers seamless connectivity and productivity expansion for HP and compatible business notebooks.
Couldn't load pickup availability
- See our return policy
- 3-year limited warranty (HP) Manufacturer Warranty
Product Information
| Brand | HP |
|---|---|
| Category | Notebook Accessories |
| SKU | NAHP-9X472UT |
| Availability | In Stock |
Overview
- The HP Dock G6 is a Thunderbolt 4 docking station that transforms any compatible notebook into a fully equipped workstation. With 100W power delivery, you can charge your device and connect peripherals through a single cable, reducing desk clutter and simplifying your setup.
This dock supports up to 4 external displays simultaneously, making it ideal for professionals who work with multiple data sources or creative applications. The combination of DisplayPort, HDMI, and USB connectivity ensures compatibility with most modern monitors and peripherals.
Tested and validated across HP commercial PCs and select third-party systems including Dell, Lenovo, and Apple devices, the Dock G6 delivers enterprise-grade reliability. Built with 35% post-consumer recycled plastic, it meets modern sustainability expectations whilst maintaining professional durability.
Management features such as HP CMSL, PXE Boot, and Wake on LAN provide IT departments with control and flexibility. The compact footprint and integrated security lock slot make it suitable for mobile workforces and hot-desking environments.
Specifications
| Connection Type | Thunderbolt 4 (40 Gbps signaling rate) |
|---|---|
| Cable Length | 1 m |
| Power Delivery | Up to 100W via Thunderbolt 4 |
| Power Adapter | 120W external power adapter |
| PD Profiles | 5V/3A, 9V/3A, 12V/5A, 15V/5A, 20V/5A |
| Display Support | Up to 4 external displays (3 DisplayPort/HDMI + 1 notebook display) |
| DisplayPort Ports | 2× DisplayPort 1.4 |
| HDMI Ports | 1× HDMI 2.1 |
| USB-A Ports | 2× USB Type-A (5 Gbps, charging support) |
| USB-C Ports | 2× USB Type-C |
| Thunderbolt 4 Ports | 1× Thunderbolt 4 with USB Type-C |
| Ethernet | 1× RJ-45 (2.5 GbE) |
| Maximum Resolution | Up to 8K |
| Maximum Refresh Rate | 360 Hz |
| Dimensions | 12.1 × 12.1 × 4.95 cm |
| Weight | 740 g |
| Package Dimensions | 39.6 × 17.1 × 9.5 cm |
| Package Weight | 1.08 kg |
| Operating Temperature | 0–35°C |
| Non-Operating Temperature | −20 to 60°C |
| Operating Humidity | 10–90% non-condensing |
| Non-Operating Humidity | 5–95% non-condensing |
| Operating Voltage | 19.5 V |
| Maximum Current | 6.15 A |
| Operating Altitude | −15 to 3,048 m |
| Storage Altitude | −15 to 12,192 m |
| LED Indicators | Front RGB LED bar (white, blue, amber, green, red); Power button RGB LED |
| Power Button | Mechanical with RGB LED indicator |
| Security Features | 1× nano security lock slot, HP Sure Start |
| Management Features | HP CMSL, disconnected firmware updates, eTag, PXE Boot, Wake on LAN, MAC address pass-through, LAN/WLAN switching, event messaging |
| Management Software | Poly Lens with automatic firmware updates, HP Quick Connect |
| Included Drivers | Intel NIC driver, Realtek NIC driver (ARM), Realtek NIC driver (Windows) |
| Compatible Operating Systems | Windows 10, Windows 11, macOS, Linux, ThinPro, Chrome OS |
| Certified Technology | Intel Thunderbolt 4 |
| Compatibility | Tested and validated on HP commercial PCs and select Dell, Lenovo, and Apple systems |
| Warranty | 3-year limited warranty (HP) |
| Sustainability | 35% post-consumer recycled plastic |
| Country of Origin | Made in China or Thailand |
Key Features
Ideal For
FAQs
Does the HP Dock G6 work with non-HP notebooks?
Yes, the dock has been tested and validated with select third-party systems including Dell, Lenovo, and Apple devices. All systems must have Thunderbolt 4 or USB-C connectivity. For specific compatibility verification, contact your local sales representative or visit the HP PCB compatibility tool.
What operating systems are supported?
The HP Dock G6 is compatible with Windows 10, Windows 11, macOS, Linux, ThinPro, and Chrome OS. Drivers for Intel and Realtek network interfaces are included.
How many monitors can I connect to the dock?
The dock supports up to 4 external displays total using the 2× DisplayPort 1.4 and 1× HDMI 2.1 ports, plus one notebook display. Maximum resolution is up to 8K with a 360 Hz refresh rate.
Can the dock charge my notebook whilst in use?
Yes, the dock delivers up to 100W of power via Thunderbolt 4, allowing you to charge your notebook and run connected peripherals simultaneously using a single cable.
What is the warranty coverage?
The HP Dock G6 includes a 3-year limited warranty from HP, covering manufacturing defects and hardware failures.
Is there a security lock on the dock?
Yes, the dock features a nano security lock slot to prevent unauthorised removal in shared or office environments.
What networking speeds does the RJ-45 port support?
The dock includes a 2.5GbE (2.5 Gigabit Ethernet) RJ-45 port for reliable wired network connectivity, suitable for office and workstation environments.
Is the dock environmentally friendly?
Yes, the HP Dock G6 is manufactured with 35% post-consumer recycled plastic, reducing environmental impact whilst maintaining professional durability.
